Summary of Contents for MAGLOGIX MagnaDrill MX-V

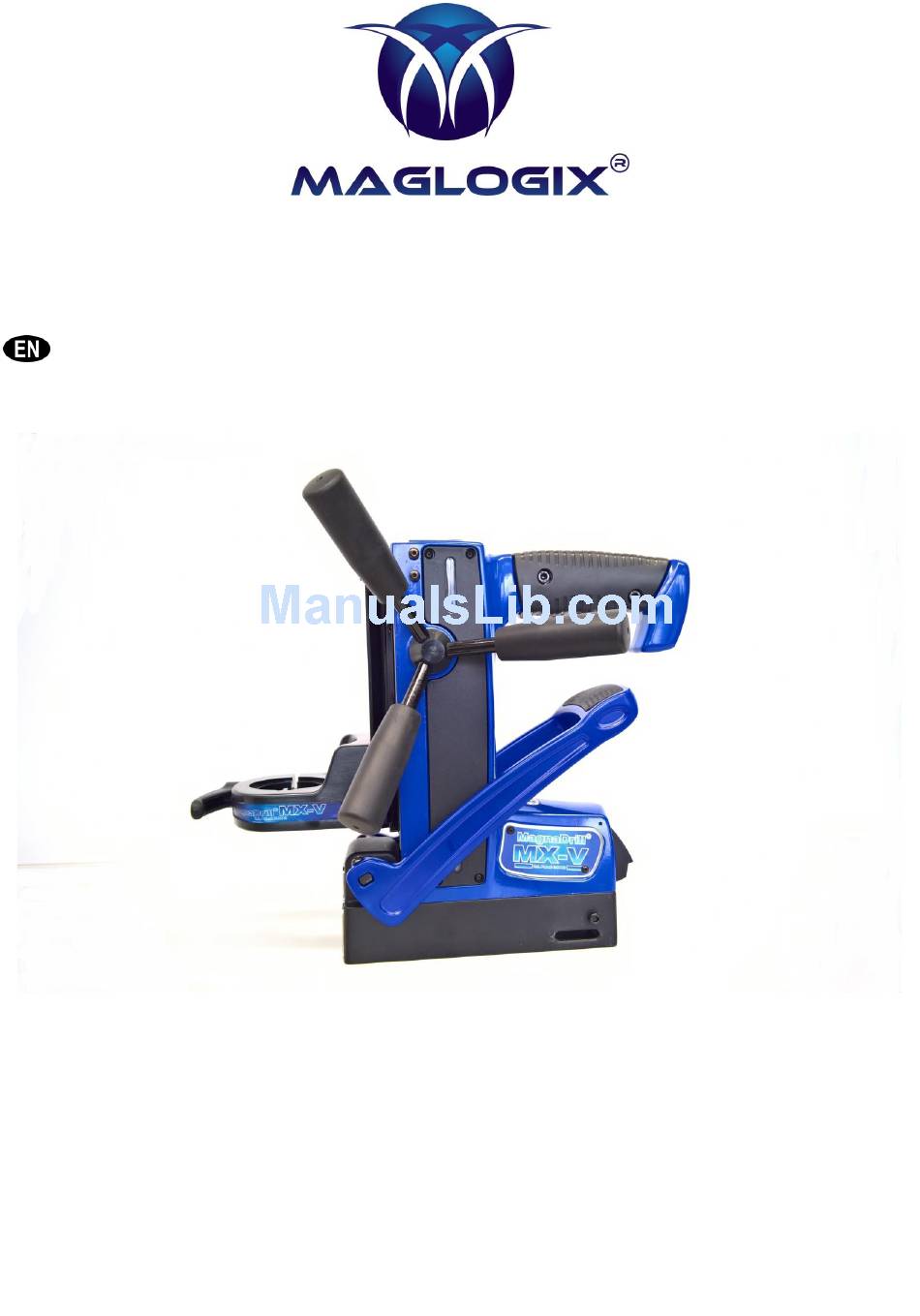

- Page 1 Operation Manual ® MagnaDrill MX-V Universal Magnetic Drill Stand...
-
Page 2: Table Of Contents
Contents Safety Instructions, Proper Use Technical Data, Available Accessories Description Start-up Special Information on Handling Switchable Permanent Magnets Maintenance and Inspection CE Declaration of Conformity Before use read and save these instructions! -
Page 3: Safety Instructions, Proper Use
Dear customer, ® Thank you for purchasing a Maglogix product. Read these operation instructions closely before using your device for the first time and keep them for later reference. Safety Instructions During work with this machine, improper handling and/or poor maintenance result in significant hazards which can lead to destruction of the machine and serious accidents with considerable injuries. -
Page 4: Technical Data, Available Accessories
® This MagnaDrill MX-V magnetic drill stand with a tool holder of Ø 43 mm (Euro collar) and a switchable Maglogix MXL permanent magnet is intended for use with wired, mains-operated drilling machines. Combined with a drilling machine, this magnetic drill stand is destined to be used with core or solid drills on ferromagnetic workpieces. It may only be used in a dry environment which is protected from the weather. -
Page 5: Description
Desciption ® The MagnaDrill MX-V drill stand can be attached to ferromagnetic workpieces using the installed mechanically switchable MXL permanent magnet (D). For this purpose, the magnetic lever (G) must be pressed downwards and the safety tab (F) must latch into place correctly. A self-adjusting dovetail guide (C) which the collar (A) is attached to can be vertically adjusted using the star handle (H). -
Page 6: Start-Up
Start-up You have received a completely assembled MX-V drill stand and detailed operation manual. Please check the condition of the goods on receipt for any transport damage, and make sure the delivery is complete. Otherwise contact the manufacturer immediately. Always read the operation manual before using the device for the first time! First, open the quick clamping lever and set the drilling machine as complete as possible into the tool holder. -
Page 7: Special Information On Handling Switchable Permanent Magnets
® The compact multi-field magnetic array of the Maglogix switchable permanent magnets would be similar to stapling paper together in a circular pattern with many small lightweight staples close together, and bending the legs together to achieve an even greater holding force. -
Page 8: Maintenance And Inspection
Maintenance, testing and repair work may only be carried out by qualified electricians according to the regulations valid in the respective country. ® Only use genuine Maglogix spare parts. -
Page 9: Ce Declaration Of Conformity
EC Declaration of Conformity Herewith we, Alfra GmbH 2. Industriestr. 10 68766 Hockenheim declare that the universal magnetic drill stand ® MagnaDrill MX-V corresponds to the following directives: Machinery Directive: 2006/42/EC Following directives or normative documents were applied: Machine safety : DIN EN ISO 12100:2011 Authorized for the compilation of the documents: Alfra GmbH... - Page 12 ® Maglogix Phone: 303-257-7888 11196 Cardinal Drive Internet: www.maglogix.com. Parker, CO. 80138 Email: info@maglogix.com...
