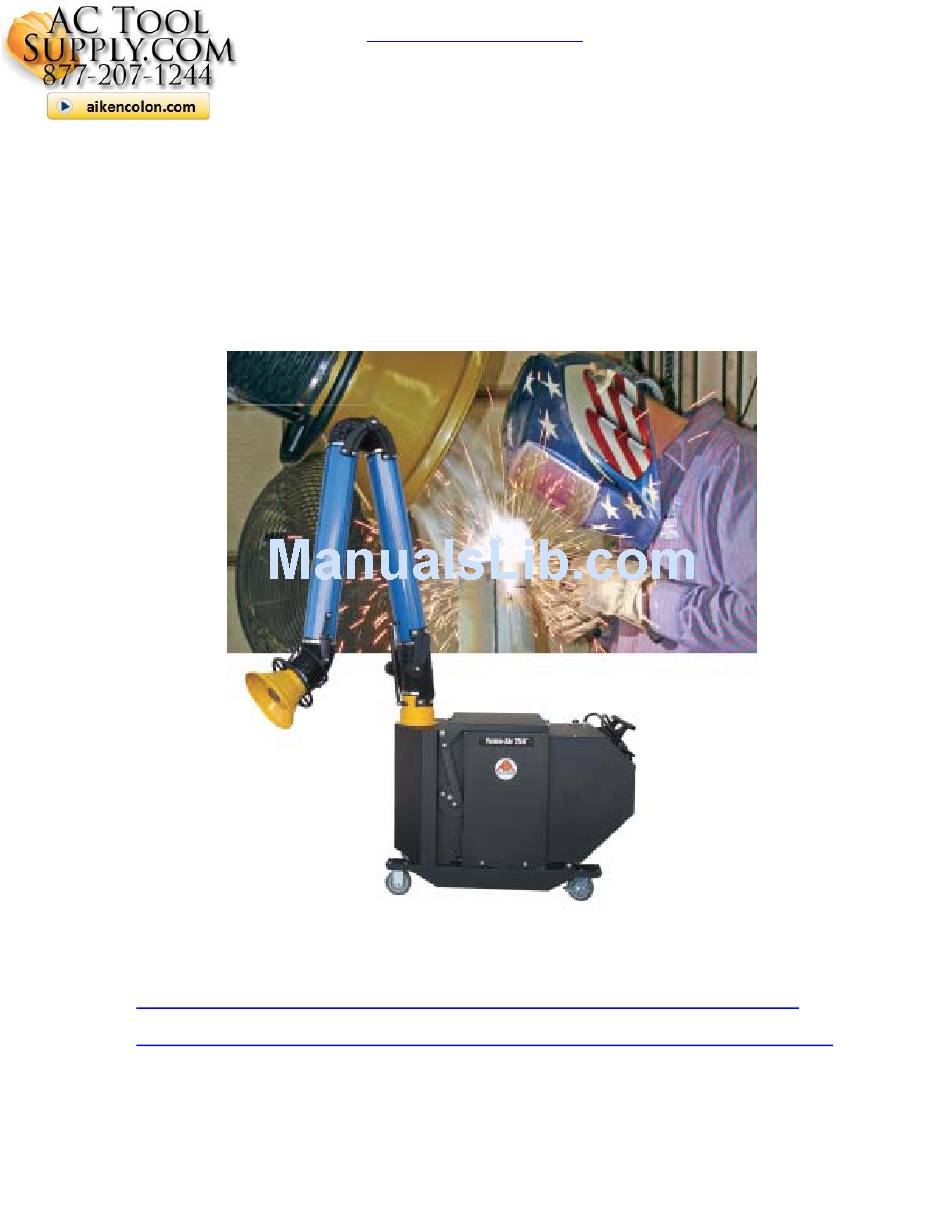

Model PFE-750-8 PORTABLE FUME EXTRACTOR Manual No. PFE02 (Rev 2 February 2008) Operating Manual Appa Air Systems International PFE-750-8 Fume Extractor Air Systems International PFE-750CAB Fume Extractor actoolsupply.com... -
Page 2: Specifications
OVERVIEW Air Systems’ portable HEPA filtered fume extractor is used mainly for source capture of welding smoke and fumes. The Portable Fume Extractor series operates at less than 80dbA. A 13” fumehood is placed on the 360 rotating adjustable arm and is supplied with an adjustable damper to control air flow velocity at the capture site. - Page 3 actoolsupply.com Remove the screws and place the arm over the inlet aligning the mounting holes to the cabinet. The piston will always be placed toward the front of the cabinet as shown in the picture above. Install the six screws and securely tighten the arm to the cabinet.
- Page 4 actoolsupply.com FILTERS SUPPLIED The Fume-Air 750 unit is supplied with a DOP tested fire retardant HEPA filter and pre-filter. The HEPA filter can be installed in either direction. A test flow arrow is located on the top of the filter to show the air flow direction used during its factory testing.
-
Page 5: Filter Replacement
actoolsupply.com FILTER REPLACEMENT The HEPA and pre-filter are located directly behind the air inlet where the arm is attached. To access the filters, lift the hinged cabinet door on the fume extractor. The pre-filter pad is installed in a steel holder and should be removed first. - Page 6 actoolsupply.com REPLACEMENT ITEMS Model # Description 1630P Fume-Air 750 arm only PFE-2412HF Replacement HEPA filter PFE-2424PF Replacement pre-filter pads, box of 10 PFE-2424C Charcoal pre-filter pad, box of 10 actoolsupply.com...
- Page 7 Any part which is deter- mined by Air Systems to be defective in material or workmanship will be, as the exclusive remedy, repaired or replaced at Air Systems’ option. This warranty does not apply to electrical systems or electronic components.
