OBM-A12 Industrial Handheld Terminal
Packing List:
：
Main unit
Quick Start Guide
Hand Strap
1. Overview for Handheld Terminal
This is a powerful Quad-core, Dual-SIM, 4G communication industrial
handheld. It is with 1280*720dpi high resolution 5" large screen, Android
5.1 OS, 1D/2D barcode reader, UHF RFID optional, support NFC Wi-Fi,
Bluetooth, GPS+BDS and other functions.

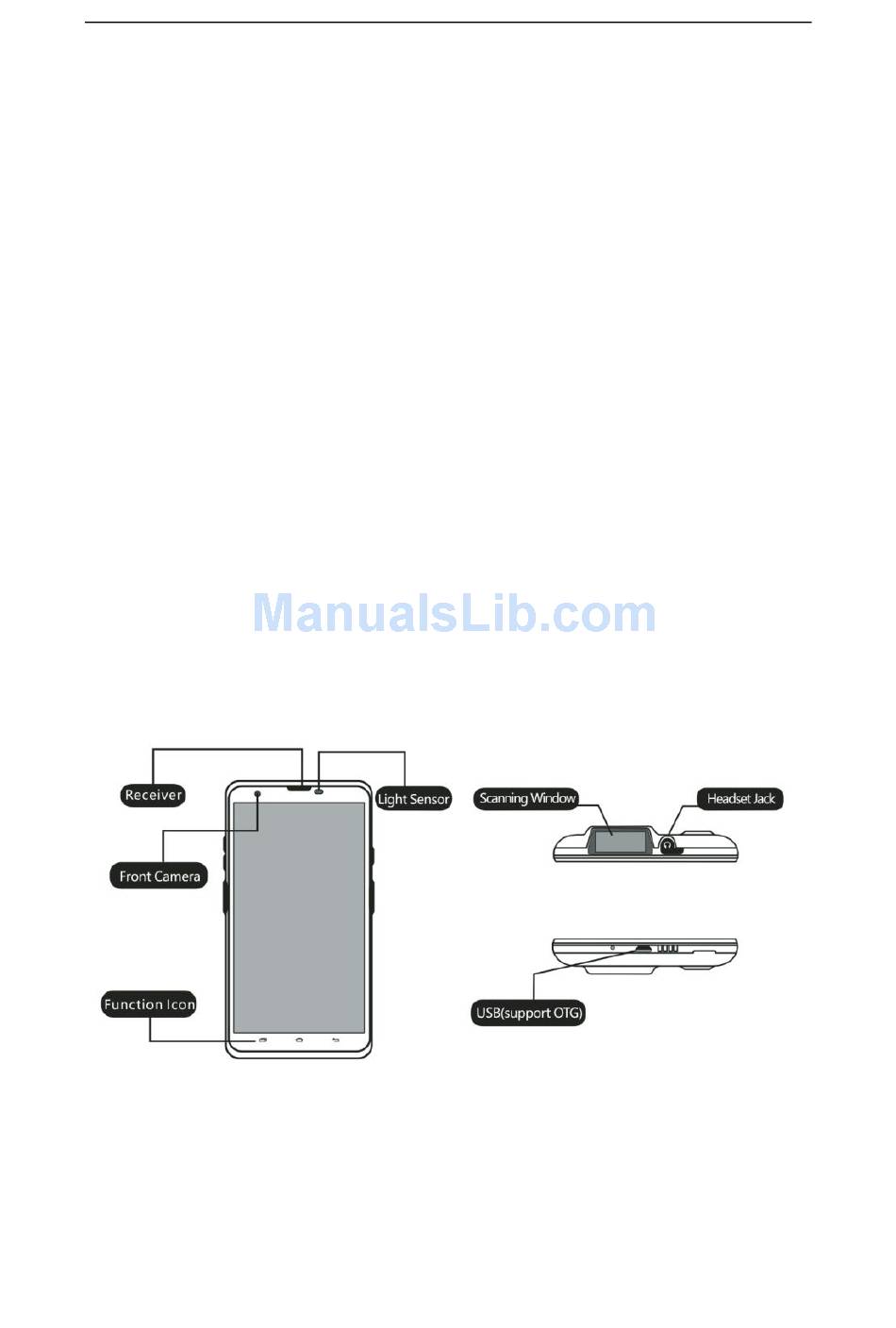

Receiver，Light Sensor，
Front Camera , Function Icon
Guangzhou OBM Intelligent Technology CO.,Ltd
Quick Start Guide
Power Adapter
Certificate of Approval
7200mAh Lithium Battery
1
7
/
USB cable
Protective shell
Scanning Window , Headset Jack,
USB ( support OTG ) ,
Advertisement
Summary of Contents for Guangzhou Liwei OBM-A12
- Page 1 Guangzhou OBM Intelligent Technology CO.,Ltd OBM-A12 Industrial Handheld Terminal Quick Start Guide Packing List: ： USB cable Main unit Power Adapter Protective shell Quick Start Guide Certificate of Approval Hand Strap 7200mAh Lithium Battery ...
-
Page 2: Indicator Description
Guangzhou OBM Intelligent Technology CO.,Ltd Power key, Volume key (+, -) Camera, Flashlight, NFC Reading Area, Scan key, Scan key Speaker 2. Indicator Description WLAN is ON Alarm is ON Bluetooth is ON Notice Bluetooth Device is connected Mute Mode Receiving GPS Data Playing Music Data Uploading... -
Page 3: Install Battery
Guangzhou OBM Intelligent Technology CO.,Ltd 3. Open/Lock the Back Cover Force to open the battery cover Close cover straight at card slot 4. Install battery Push the battery Align at battery 5. Install the SIM Card Remove the SIM card Insert the SIM card... - Page 4 Guangzhou OBM Intelligent Technology CO.,Ltd 6. The TF Card Installing (can be extended to 32GB) Insert the TF card Close the cover Open the cover of TF card slot 7. Barcode Scanning (optional function) 1D/2D barcode module can help you collect barcode information easily. Following is the operation steps.
- Page 5 Guangzhou OBM Intelligent Technology CO.,Ltd You can contact sales person for redevelopment and technical support 8. NFC Reading NFC reading area is marked on the back cover of battery, the reading distance is 0-3cm > The default setting of NFC is ON >...
- Page 6 Guangzhou OBM Intelligent Technology CO.,Ltd (INCLUDING THE DAMAGES CAUSED BY USING THE QUICK START GUIDE),SUCH AS THE COMPANY PROFIT LOSS, CREDIT LOSS,INTERRUPTION OF BUSINESS,STORAGE DATA LOSS / CHANGES OR ANY OTHER PARTICULAR, DIRECT / INDIRECT LOSS CAUSED BY THIS. EXCEPT THE DIRECT PERSONAL AND PROPERTY DAMAGE CAUSED BY PRODUCT HARDWARE QUALITY PROBLEMS.
- Page 7 Guangzhou OBM Intelligent Technology CO.,Ltd Warning 1. Power off the device and disconnect power cable when it is the thunderstorm weather. 2. Keep ventilating, keep away from the hot sourc. 3. Avoid of water soaking during the transport, running and storage. 4.
