Response Alarms CA2000P Installation And Operating Instructions

CA2000P
Movement Detector
Installation and Operating
These instructions should be read in conjunction
with your system Installation and Operating
Manual and retained for future reference.

Introduction

The CA2000P Passive Infra Red (PIR) Movement Detector
is designed for use with all Response 418MHz, 8 dip
switch House Code, Part Wired, Wireless and Wirefree
alarm systems.
Any number of PIR Movement Detectors can be used with
your system, providing they are all coded with the System
House Code and are within the radio range of the System.

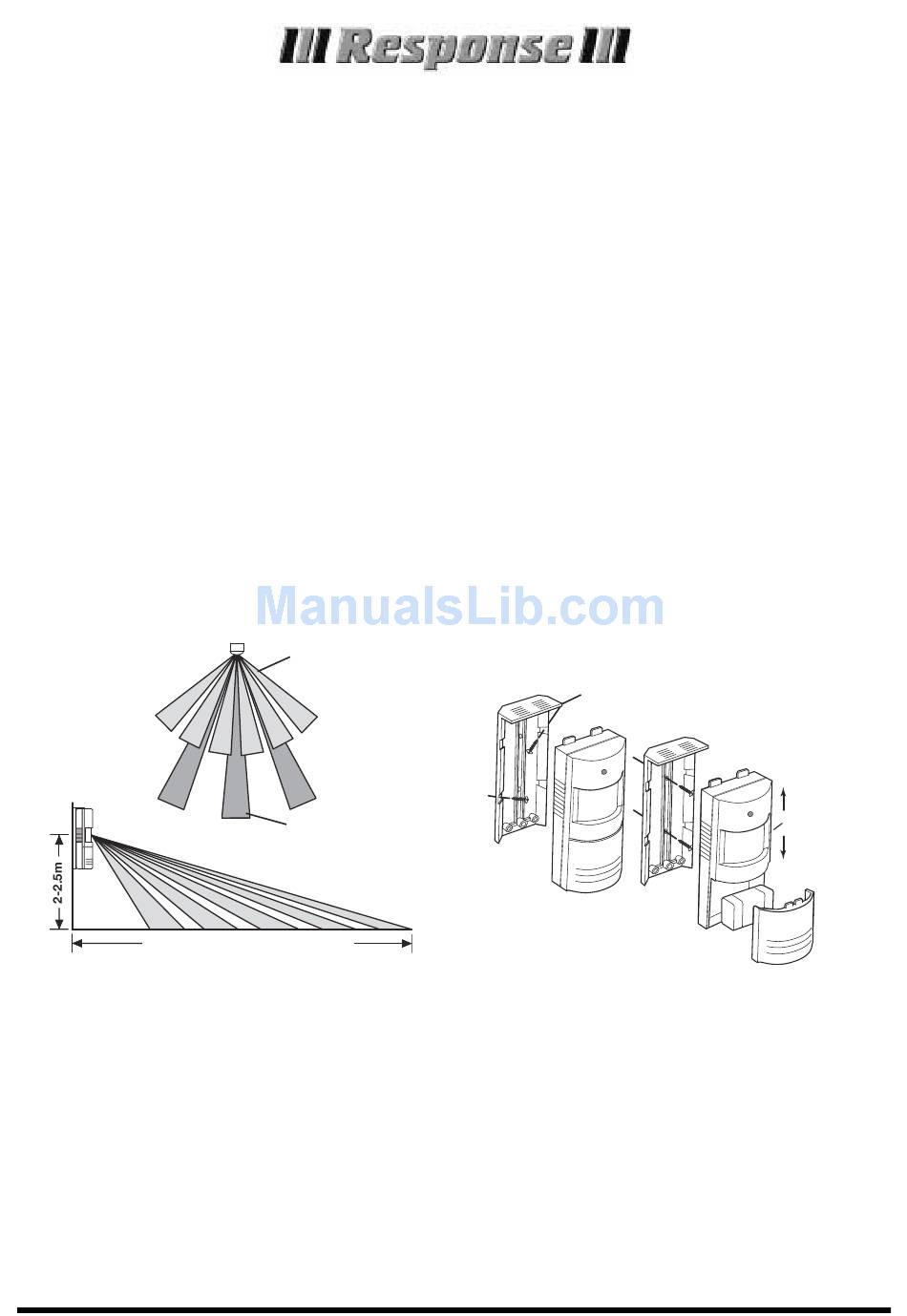

Siting

Up to 6m at 110° and 12m at 60°
The recommended position for a PIR Movement Detector
is in the corner of a room mounted between 2 and 2.5
metres from the floor. At this height, the detector will
detect movement up to 6 metres at 110° and 12 metres at
60°, depending on adjustment. Also, in this position, the
110°/60° fan-shaped detection patterns can normally offer
greater protection than mounting on a flat wall. Before
selecting a position for a PIR Movement Detector the
following points should be noted:
1. Do not position detector facing a window or direct
sunlight. PIR Movement Detectors are not suitable for
use in conservatories or draughty areas.
- Wirefree PIR
110° angle
60° angle
Instructions
2. Do not position detector directly above any source of
heat, eg. fire, radiators, boiler etc.
3. Where possible, keep pets out of areas protected by
PIR Movement Detectors. If this is not possible,
alternative mounting arrangements may be required.
4. Where possible, mount the detector so that the logical
path of an intruder would cut across the fan pattern
rather than directly towards the detector.

Installation and Operation

Note: Before commencing installation of the detector you
should set your system to Test mode/Service mode (refer to
your system Installation and Operating Manual for details).
Fixings for
TOP
Corner Mounting
TOP
Fixings for
Surface Mounting
1. Remove the battery cover by inserting a coin under the
cover lip and twisting open. Remove the fixings pack.
2. Remove the screw (in the battery compartment)
holding the wall bracket to the detector.
3. Slide the wall bracket up and remove the bracket from
the detector as shown.
4. Hold the wall bracket in position and mark the two
mounting holes. (If corner mounting drill pilot holes in
the chamfers as shown).
5. Drill two 4mm diameter holes and insert the plastic
wall plugs supplied.
Pulse Count
Detection
Switch on
Side
ON = 2
pulse
detection
OFF = 1
pulse
detection
