Summary of Contents for SmartEv Scatalo

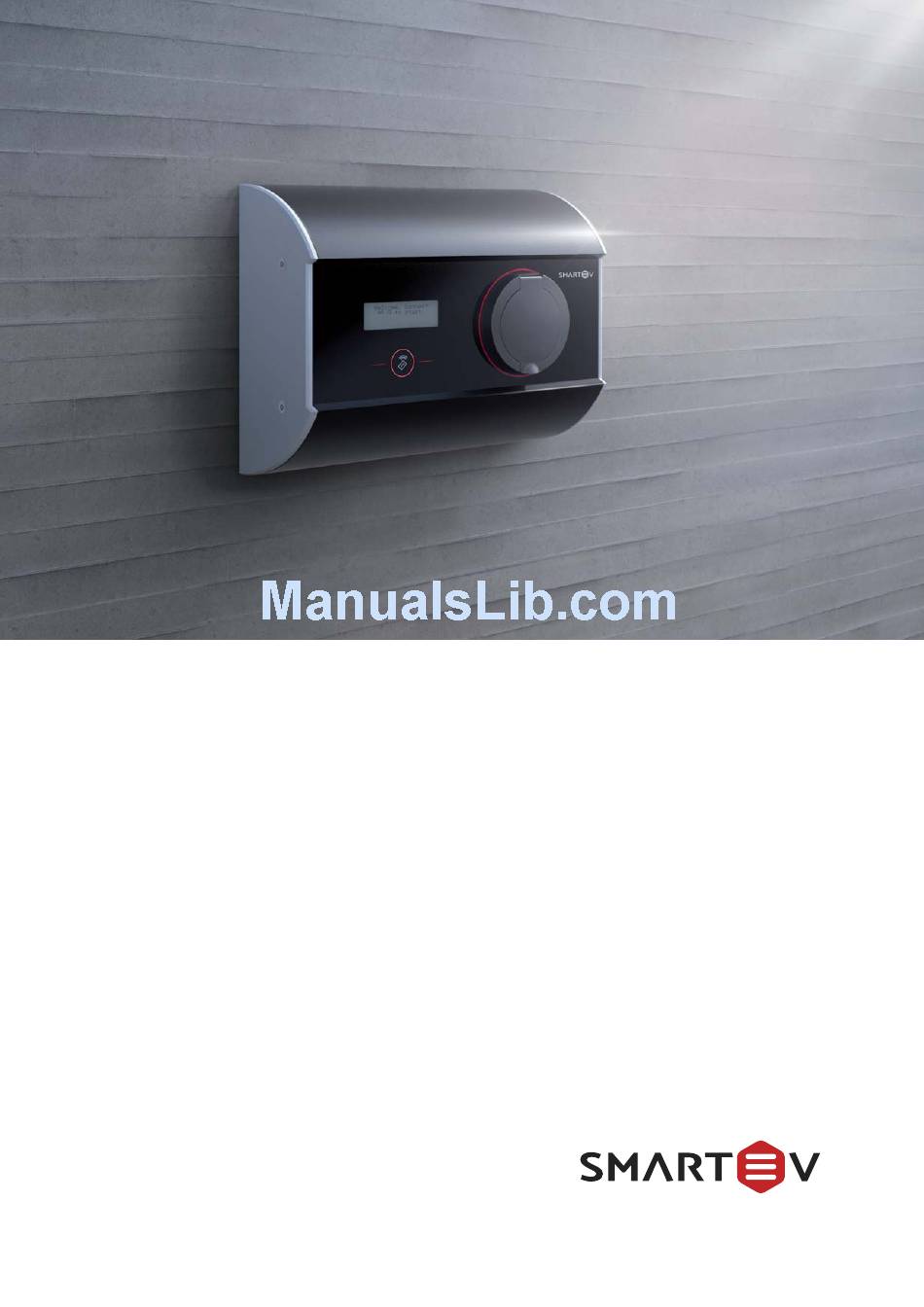

- Page 1 SmartEv Scatalo INSTALLATION MANUAL 3.7 kW | 7.4 kW | 11kW | 22kW...
- Page 2 Thank you for choosing SmartEv Scatalo charger. Welcome to the award winning world of SmartEv. A unifi ed and consistent use of these guidelines is one of the If you require any further key ways by which we will visibly distinguish and strengthen the...
- Page 3 Notes on use of equipment and useful practical tips are identifi ed by “i”. Notices do not contain any information that draws attention to potentially dangerous or harmful functions. Technical Specifi cations Scatalo 3,7kW Scatalo 7,4kW Scatalo 11kW Scatalo 22kW...
-
Page 4: Safety Instructions
– Observe the instructions given for selecting the SmartEv assumes no liability for claims location and the constructional requirements! resulting from not observing these safety – If the specifi cations for the location are not instructions. - Page 5 Installation manual ver. 1.6, © Guide 3 Information for technicians who are permitted to open the device SmartEv Scatalo is a charging terminal for outdoor area The instructions contained in this manual must be at which electrically operated vehicles can be charged.
- Page 6 Installation Guidelines Before Installation This document describes how to install SmartEv Scatalo charging station. Before any installation work is performed, study all drawings furnished by the supplier for the particular installation. Safety Requirements Ensure that at all times when working, no power is connected.
- Page 7 4 fi g.2. – Pull the cable harness with plug outside fi g.3. – Turn the cable harness down fi g.4. – Remove the front housing from back plate fi g.5. fig. 5 www.smartev.co.uk | 01707 443 179...
- Page 8 Before installation ensure, that there is enough space to slide terminal back, after installation - fi g 6. Choice of type of installation – SmartEv Scatalo terminal is designed to install on wall with electrical box fi g.7. – There is posibility to install charger on wall with exposed electric installation fi...
- Page 9 fi g.11, - for 11kW and 22kW chargers from fi g.12. – Relase cable gland fi g.10 and thread cable. Tighten gland. – Mount back plate on the wall, use proper screws. fig. 11 fig. 12 www.smartev.co.uk | 01707 443 179...
- Page 10 Connection to the power grid – Connect wires from the cable to the socket - fi g.13 – Use proper diagram for Scatalo 3,7kW, Scatalo fig. 14 7,4kW, Scatalo 11kW or Scatalo 22kW fi g.14. Terminal must be earthed. Ensure, that yellow-and-...
- Page 11 - fi g 18 fig. 16 First start Turn the power on in the power grid supply. On the screens you will see a welcoming message. Terminal is ready to use. fig. 17 fig. 18 www.smartev.co.uk | 01707 443 179...
-
Page 12: Installation
SmartEv One Woodside Lane Bell Bar, Hertfordshire AL9 6DE telephone 01707 443 179 www.SmartEv .co.uk...
