GPS SNIPER
GPS locator MANUAL 1/2
NOTICE: Read carefully the instructions and recommendations
contained in the manual, before the installation. The equipment
must be installed and used in accordance with the instructions. The device
is designed for installation in vehicles with 12 or 24 volt electrical systems.
The device must be grounded by negative. The manufacturer and retailer
are not responsible for any damages resulting from improper installation,
use, operation or control of the product differently from the instructions.
Improper interference with the device or its treatment, may cause risk of
damage to the device itself, or vehicle power supply and the guarantee loss.
For proper and correct operation of the product we recommend to install by
a professional service.
I. SYSTEM DESCRIPTION
GPS SNIPER will help you to secure and to protect your vehicle (passanger car, truck,
motorcycle, trailer, construction or agricultural machinery, motorboat etc.). In the event of theft,
GPS Sniper will send the current position to your mobile phone. Via mobile phone, you can
easily display the current position on the map. The position of guarded vehicle you can also see
via PC on the website http://www.maps.google.com.
The system consists of GPS Sniper unit and GPS satellite antenna. GPS Sniper unit is usually
placed in a hidden and hard to reach place (eg. In automobile under the dashboard). There
is located the SIM card of GSM mobile operator (not included in the package) inside the
GPS Sniper unit. The unit then has its own phone number. You can use a flat rate or a prepaid
SIM card. You can realize the recharge of prepaid SIM card using the mobile phone or
using a bank terminal (ask your GSM mobile operator about the possibilities). The system
communicates with the user via SMS. Therefore, it is important to pay attention to price tariffs
for SMS services when choosing a mobile operator. We recommend to activate also roaming
services, in case for locating a vehicle abroad. There is a backup battery and tilt sensor built-in
the device. GPS Sniper contains additional user features, which are explained in detail in the
user manual.
II. THE SYSTEM INSTALLATION
GPS Sniper possible to istall as an autonomous device, or as an accessory with interes-
ting features to the existing alarm.
1. Loosen the screw of plastic cover, remove the cover and insert the SIM card into the
SIM card slot.
Note: First, it is necessary to disable the SIM card PIN code protection. The PIN code
protection could be turned off in a mobile phone menu for example.
2. Connect the single wires of the cable harness, follow the wiring diagram. While doing
so, the cable harness connector must be disonnected from the GPS Sniper.

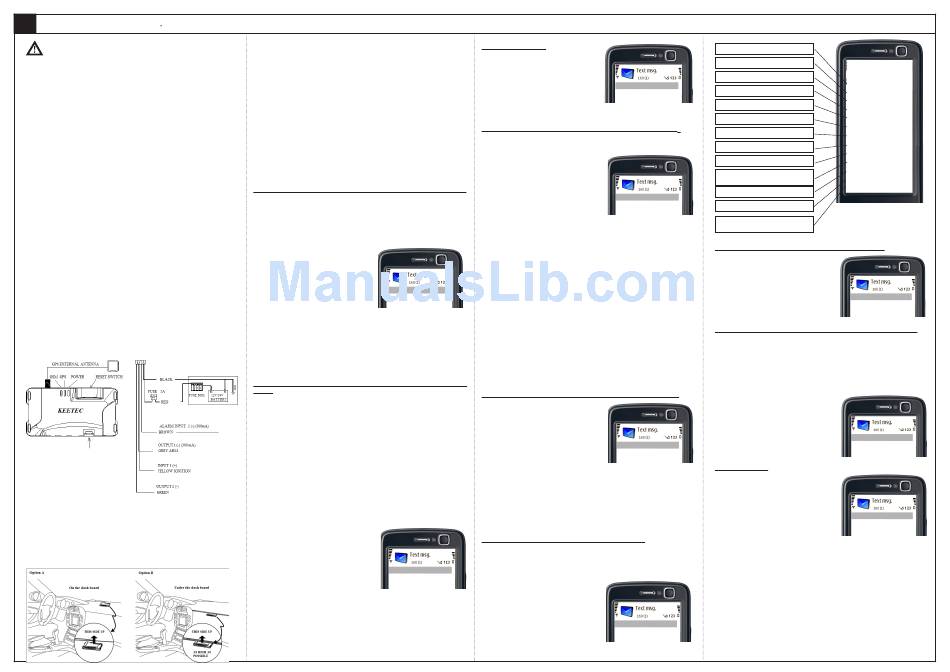

III. WIRING DIAGRAM
Connection:
Input 1 (+) connected to ignition
Input 2 (-) the universal input, could be con-
figured as an integral part of the system
Output 1 (-) optional output, could afford the
actual ARM/DISARM information, or could
be set as output controled by SMS
Output 2 (-) alarm output, its active while
JAMM or TILT alarm triggered
INSTALLATION LOCATION IN A VEHICLE
Connect the GPS antenna and wiring harness connector to the GPS Sniper unit. GPS antenna
must be positioned horizontally and can not be shielded by any metal parts from above.
Wait approximately 2 minutes after the power supply connected, the complete initialization
will proceed meanwhile. The device is ready to recieve the configuration SMS commands after
the 2 minutes had passed.
IV. SYSTEM SETUP
GPS Sniper is configured using the commands in the form of SMS from your
mobile phone to the phone number of GPS Sniper. The configuration command is al-
ways sent also with a PIN code that authorizes a sender. PIN code is a four-digit num-
ber and can be changed, it is set to „4321" by default. The configuration commands
can be entered by capital or small letters. In the case of syntax error sent, GPS Sniper
replies with „UNKNOWN COMMAND" SMS. SMS commands could be combined
into one long SMS with the PIN code entered only once, for example „4321 PIN xxxx
SPEED xx INPUT ON". There must be entered spaces between the different parts of the
multiple command..
1. AUTHORIZING OF TELEPHONE NUMBER FOR ALARM SMS RECIEVING
If a telephone number authorized, the telephone number will become an
alarm SMS recipient and also could control the GPS Sniper.
The command systax:
4321 TEL +xxxxxxxxxxxx +yyyyyyyyyyy +zzzzzzzzzzzz
+x –first authorized number
in international format
+y –second authorized number
in international format
+z –third authorized number
in international format
4321 TEL +4219050
00000 +421907000000
Example:
There are 2 telephopne numbers authorized. It is also possible to authorize only one te-
lephone number. The three telephone numbers may be authorized in total, as a maxim-
mum. Each authorized telephone number could activate the „Monitor" mode by ringing
through the GPS Sniper tel.number (see in next). It is necessary to enter the telephone
numbers in the international format only, it must therefore always starts with the + sign.
Note: It is necessary to activate CLIP service (caller identification) on the SIM card. Un-
less this service is not active, you can not operate the GPS Sniper by ringing through.
2. SMS FREQUENCY PERIOD ADJUSTMENT, AFTER GPS ALARM TRIG-
GERED
The command systax:
4321 SMS xx yy zz
xx -indicates, how long distance traveled (in km), after which the first SMS
alarm will be automatically sent
yy -indicates the distance traveled (in km) between two repetitious SMS if the
position has changed
zz -Indicates the total number of alarm SMS which will be sent, for one GPS
alarm triggered
Default values:
xx - 0.3 yy - 2.0 zz - 05
Example:
After the GPS alarm is trigerred, the first SMS will be sent if the GPS position
of the device will change by 0.2 km. The next SMS will be sent if the position will change
by 5 km, the total number of SMS sent will be 3.
4321 SMS 0.2 5.0 03
After the GPS alarm is trigerred, the first SMS will be sent only after the
first distance set (xx) is traveled. More SMS are sent after the (yy) interval is traveled.
The last parameter (zz) indicating the total number of SMS which will be sent out for
one GPS alarm triggered. After all the SMS are sent out, the GPS alarm is deactivated
automatically.
3. PIN CODE CHANGE
The command systax:
4321 PIN xxxx
xxxx – new PIN code
Default PIN code: 4321
4321 PIN 2828
We recommend to change the PIN code for security reasons as soon as possible.
Keep your current PIN code in a safe place in case you forget it.
4. SMS ALARM TEXT CONFIGURATION (SMS SENT BY GPS SNIPER)
Alarm SMS with predefined text is automatically sent out if the GPS alarm
trigerred, to authorized telephone number (numbers). There is also GPS location
information attached automatically in the SMS text.
4321 TEXT1 ALARM!
THE CAR MOVING!
The command systax:
4321 TEXT1 xxxxxxxxxxx (xxxxxxxxxxx alarm text for motion detection)
4321 TEXT2 xxxxxxxxxxx (xxxxxxxxxxx alarm text for ignition turning ON)
4321 TEXT3 xxxxxxxxxxx (xxxxxxxxxxx alarm text for speeding)
4321 TEXT4 xxxxxxxxxxx (xxxxxxxxxxx alarm text for tilt angle change)
4321 TEXT5 xxxxxxxxxxx (xxxxxxxxxxx alarm text for Input 2 active)
4321 TEXT6 xxxxxxxxxxx (xxxxxxxxxxx alarm text for GSM signal jamming)
4321 TEXT7 xxxxxxxxxxx (xxxxxxxxxxx alarm text for weak battery)
– there is automatically attached to the text also "xxV" (Voltage value)
Default alarm SMS text:
"ALARM! MOTION DETECT" – if motion of the device detected
"ALARM! IGNITION IS ON" – if ignition turned ON
"ALARM! SPEED is xx km/h" – if set maximum speed exceeded
(xx - actual speed)
"ALARM! TILT SENZOR" – if tilt angle changed
"ALARM! INPUT ON" – if Input 2 active
"ALARM! GPS SIGNAL INTERFERENCE" – if GSM signal jammed
"ALARM! BATTERY HAS xxV" - if car battery weak
(xx - value in Volts)
5. SETTING THE AUTOMATIC CONFIRMATION OF SMS COMMANDS
The command systax:
4321 CONFIRMATION ON - to turn ON
4321 CONFIRMATION OFF - to turn OFF
Is anabled by default "ON"
4321 CONFIRMATION
ON
After an authorized user sends any of the commands, the device automatically sends
back to him SMS confirmation. As far as validation is turned on, after the successful pro-
cessing of SMS command, device will send SMS confirmation with the text for example
"Speed 45" or "INPUT OFF" to authorized phone number that had sent the SMS com-
mand before. Confirmation SMS is not sent as a response to the commands, by which
there is a different SMS response.
6. REQUEST FOR GPS SNIPER CONFIGURATION STATUS
The command systax:
4321 CONFIG
After the CONFIG command is sent out, user recieve the information SMS
from the GPS Sniper with the actual configuration status. The user receives the informa-
tion about the set parameters.
4321 CONFIG
SMS CONFIRMATION - TURNED OFF
ACTUAL PIN CODE
4321 CONFIG
SPEED LEVEL VALUE
CONFIRMATION : OFF
TILT ANGLE LEVEL VALUE PIN : 4321
SPEED : 5
JAMMING CONTROL TURNED OFF
TILT : 5
JAMM : OFF
ALARM INPUT DEACTIVATED
INPUT : OFF
TO SEND SMS IF V=11,5V
BATTERY : 11.5
OUT1 : ARM
OUTPUT 1 SET AS
OUT2: 60
SMS DISTANCE: 0.1 1.0
OUTPUT 2 SET AS
SMS COUNT :5
DISTANCE OF SMS SENDING SET AS GPS: OFF
RING: OFF
TOTAL NUMBER OF SMS
GPS PROTECTION TURNED OFF
WARNING BY DIALING
TURNED OFF
7. REQUEST FOR AUTHORIZED TELEPHONE NUMBERS LIST
The command systax:
4321 CONFIG TEL
The device will send BACK SMS in shape:
TEL NUMBER:
+xxxxxxxxxxxx
4321 CONFIG TEL
+yyyyyyyyyyy
+zzzzzzzzzzzz
8. REQUEST FOR GPS POSITION AND DEVICE STATUS INFORMATION
The command systax:
4321 ?
The device will send BACK SMS in shape:
http://www.maps.google.com/maps?q=48.970333, 18.188774
GSM : SIGNAL OK (or NO SIGNAL)
GPS : SIGNAL OK (or NO SIGNAL)
BATTERY : 13,5V
ALARM : NO
INPUT : OFF
OUT1 : OFF
SPEED : 0km/h
IGNITION : OFF
4321 ?
MONITOR : OFF
9. FACTORY RESET
The command systax:
4321 DEFAULT
or, you can
turn ON the ignition and 5x connect/disconnect
the power supply instead.
4321 DEFAULT
It sets all the parameters to default.
The command runs complete device initialization, its necessary to wait at least 2 min-
utes, until the device is ready again to receive further commands. The reset command
does not affect the set PIN code.
V. USER FUNCTIONS OF GPS SNIPER
GPS Sniper is configured using the commands in the form of SMS from your
mobile phone to the phone number of GPS Sniper. The configuration command is al-
ways sent also with a PIN code that authorizes a sender. PIN code is a four-digit num-
ber and can be changed, it is set to „4321" by default. The configuration commands
can be entered by capital or small letters.
