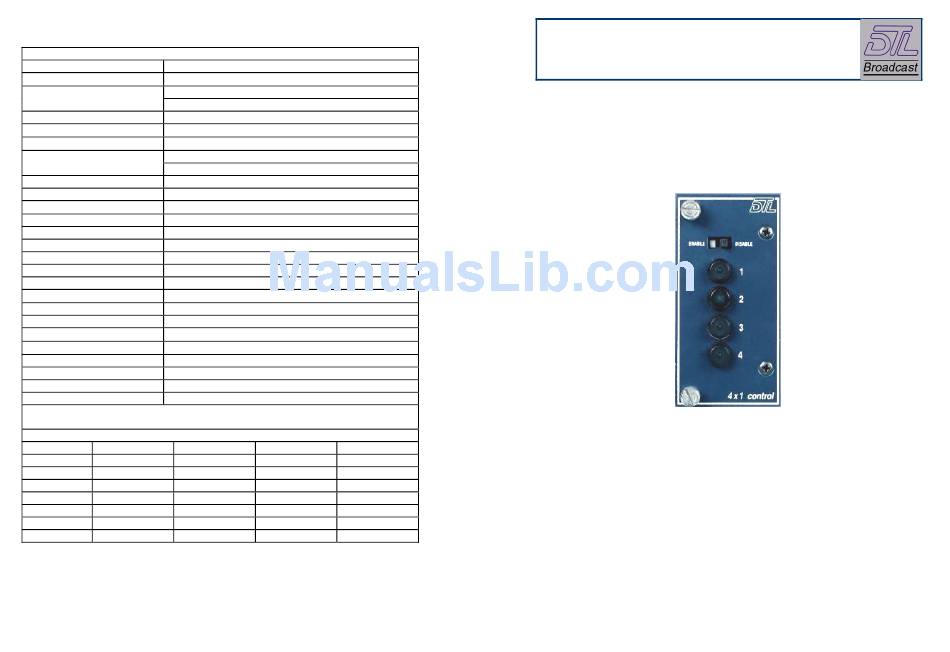

DTL Broadcast 5S2693 User Manual

Specification
Input/Output characteristics
Inputs 4
Input impedance 75Ω terminated
Input return loss <-52 dB to 15 kHz
<-46 dB to 5.5 MHz
Input superimposed dc (max) 1 V
1 Vp-p ±3dB
Input/output level
Output impedance
75Ω
Output return loss <-46 dB to 15 kHz
<-40 dB to 5.5 MHz
Output superimposed dc clamped or dc servo (selectable)
Electrical length 25 ns
±1°
Timing spread
Linear Distortion:
2T pulse to bar 0.2% K
2T bar 0.2% K
2T pulse 0.2% K
50Hz square wave 0.2% K
Non-linear Distortion:
Differential phase
0.2°
Differential gain 0.2%
Luminance non-linearity 0.1%
±0.5%
Y/C gain inequality
Y/C gain delay ±1 ns
Unwanted outputs:
Crosstalk <-60 dB @ 4.43 MHz
Luminance noise weighted <-80 dB
Chrominance noise weighted <-75 dB
NB Above measurements refer to the 5SV2692M matrix with the 5SV2693 rear connector
unit in a 5AV2645 frame.
Physical
Weight (kg) Height (mm)
5SV2692M 0.635 88
5SV2692S 0.620 88
5S2693 0.210 88
5S2694 0.200 88
9MW26901 0.010 88
5S2696 N/A N/A
5S2695 0.800 44
DTL Broadcast Ltd, Johnson's Estate, Silverdale Road, Hayes, Middlesex, UB3 3BA, UK
Phone: +44 (0) 20 8813 5200
Internet: www.dtl-broadcast.com
\\Dtl-server\company\PRODUCTS\2600\User Guides\UG5SV2692M Iss1.0.doc
Width (mm) Depth (mm)
44 300
44 300
44 120
44 N/A
44 N/A
N/A N/A
483 N/A
Fax: +44 (0) 20 8813 5022
support@dtl-broadcast.com
- 4 -
DTL 2600 range
User Guide
5SV2692M 4x1 analogue video routing
matrix
www.dtl-broadcast.com
