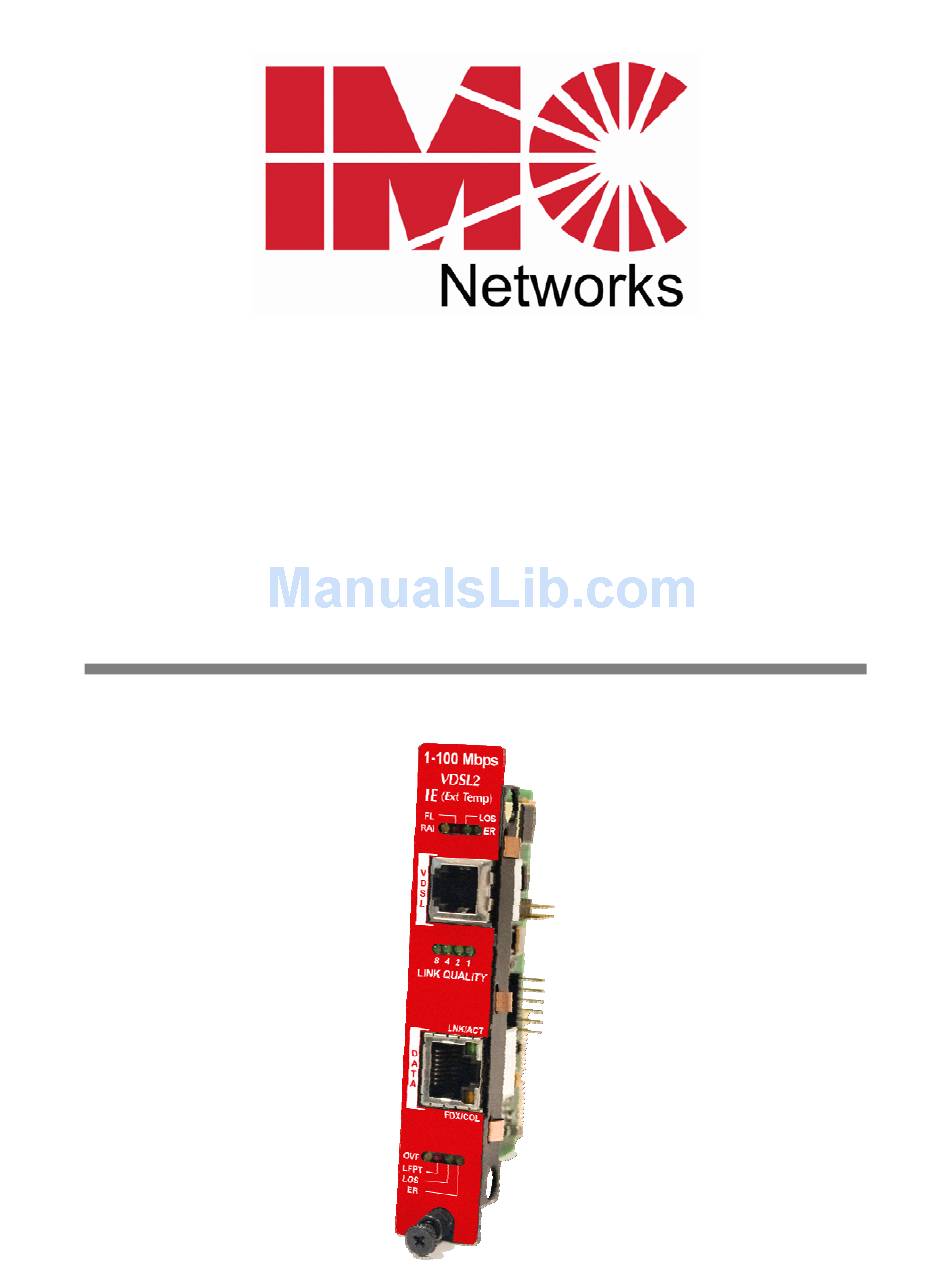

  • Page 1 IE-iMcV-VDSL2-LANextender Operation Manual...
  • Page 2: Warranty

    At its option, IMC Networks will repair or replace at no charge the product which proves to be defective within such warranty period. This limited warranty shall not apply if the IMC Networks product has been damaged by unreasonable use, accident, negligence, service or modification by anyone other than an authorized IMC Networks Service Technician or by any other causes unrelated to defective materials or workmanship.
  • Page 3: Table Of Contents

    Forcing Duplex Mode ....................7 Forcing the Data Port Speed..................7 Flow Control ......................7 Link Fault Pass-Through ....................8 Fault Loopback (FL)....................8 Maximum Bandwidth IE-iMcV-VDSL2-LANextender Link LEDS ........9 Primary Line Protector ..................11 Appendix—Pinouts ....................12 RJ-45 Data Port Pinout (MDI)................12 RJ-11 Port Pinout ....................12 Troubleshooting ......................13...
  • Page 4: About The Ie-Imcv-Vdsl2-Lanextender

    Two IE-iMcV-VDSL2-LANextender media converters are configured as pairs for each link. One is configured as a Host (Central Office (CO)) IE-iMcV-VDSL2-LANextender module and is typically deployed at the CO close to network management systems.
  • Page 5: Installing Ie-Imcv-Vdsl2-Lanextender Modules

    Install IE-iMcV-VDSL2-LANextender modules in any IMC Networks iMediaChassis series or a MediaChassis series. Each module requires one slot in the chassis; always use IE-iMcV-VDSL2-LANextender modules in pairs with the Host module at the CO and the Remote module at the CPE.
  • Page 6: Led Operation

    These 4 GREEN LEDs form a binary code indicating the MAX bandwidth the VDSL line can support as described in Maximum Bandwidth IE-iMcV-VDSL2-LANextender Link LEDs. Blinks slow GREEN at power up. Blinks fast GREEN when line connection has been established.
  • Page 7: Dip Switch Settings

    DIP Switch Settings The DIP Switches allow the user to configure most of the module features before installing the unit. These also enable the Host to Remote management channel used with SNMP management. Refer to the following diagram and setting table for DIP Switch selection information.
  • Page 8: Host (Co) Module Configuration

    Please refer to the section SNMP Management. Remote (CPE) Module Configuration To configure a CPE IE-iMcV-VDSL2-LANextender module as a Remote CPE, set DIP Switch #1 to the ON position (OFF is the default setting). A Remote CPE configured IE-iMcV-VDSL2-LANextender module can be installed in an unmanaged chassis.
  • Page 9: Selective Advertising

    5 and 7. NOTE If you require a specific speed and/or duplex mode, IMC Networks recommends using Selective Advertising rather than Force Mode when connecting the modules to devices that can ONLY Auto Negotiate. Selective Advertising is NOT an option when you disable Auto Negotiation.
  • Page 10: Link Quality

    The Upstream rate will be less based on the Base Plan used. Forcing Duplex Mode The DATA port can be manually configured on the IE-iMcV-VDSL2-LANextender module for Half- or Full-Duplex operation. Before manually setting the duplex mode, disable Auto Negotiation (Set DIP Switch #5 to OFF).
  • Page 11: Link Fault Pass-Through

    Ethernet frames by reducing the congestion, therefore minimizing the overflow of the VDSL line. Configure the DATA port on IE-iMcV-VDSL2-LANextender module for Flow Control by setting DIP Switch #6 to the ON position. Link Fault Pass-Through...
  • Page 12: Maximum Bandwidth Ie-Imcv-Vdsl2-Lanextender Link Leds

    Maximum Bandwidth IE-iMcV-VDSL2-LANextender Link LEDS The standard single pair IE-iMcV-VDSL2-LANextender unit will provide the following Rate/Reach performance under the best conditions and still maintain a BER > 10^-9 performance over single pair 24 AWG (0.5mm) twisted wire. IE-iMcV-VDSL2-LANextender Rate/Reach Distance Link...
  • Page 13 The end user can also select Band Plan 998 for asymmetric operation to provide better downstream performance. Either plan will automatically adjust for the greatest bandwidth transport. The IE-iMcV-VDSL2-LANextender will automatically seek the best operating condition for the physical line it is connected to.
  • Page 14: Primary Line Protector

    Primary Line Protector NOTE If VDSL line is connected to the outside plant, the wire entry point to the building must have primary line protectors installed.
  • Page 15: Appendix-Pinouts

    Appendix—Pinouts RJ-45 Data Port Pinout (MDI) The following table lists the pin configuration for the RJ-45 Data connector. Signal Transmit+ Transmit- Receive+ Pin 1 No Connection No Connection Receive- No Connection No Connection RJ-11 Port Pinout VDSL ports are supported on RJ-11 (pin 3,4) connectors.
  • Page 16: Troubleshooting

    Troubleshooting The most common failure of a VDSL line is its slow degradation over time due to aging of the line or increased line noise as additional service is added to the same Line bundle. To help detect this degradation over time, the unit provides a user- defined Minimum Quality Level.
  • Page 17: Specifications

    Specifications Standards: ITU-TG.993.1 ITU-TG.997.1 GR-1089-Core Secondary Line Protection Power Consumption (Typical): 550 mA @ 5 V Operating Temperature: -40°F to +185°F (-40°C to +85°C) Storage Temperature: -13°C to +158°F (-25°C to +70°C) Humidity: 5 to 90% (non-condensing); 0 to 10,000 ft. altitude Dimensions: Single-Slot iMcV Chassis-Mounted Module...
  • Page 18: Imc Networks Technical Support

    IMC Networks Technical Support Tel: (949) 465-3000 or (800) 624-1070 (in the U.S. and Canada); +32-16-550880 (Europe) Fax: (949) 465-3020 E-Mail: techsupport@imcnetworks.com Web: www.imcnetworks.com...
  • Page 19: Safety Certifications

    Certifications CE: The products described herein comply with the Council Directive on Electromagnetic Compatibility (2004/108/EC). For further details, contact IMC Networks. Class 1 Laser product, Luokan 1 Laserlaite, Laser Klasse 1, Appareil A’Laser de Classe 1 European Directive 2002/96/EC (WEEE) requires that any equipment that bears this symbol on product or packaging must not be disposed of with unsorted municipal waste.
  • Page 20 © 2012 IMC Networks. All rights reserved. The information in this document is subject to change without notice. IMC Networks assumes no responsibility for any errors that may appear in this document. IE-iMcV-VDSL2-LANextender is a trademark of IMC Networks. Other brands or product names may be trademarks and are the property of their respective companies.
