Summary of Contents for Ear Technology EarTech TV Audio
- Page 1 TV Listening System USER MANUAL 1-888-327-1299 www.EarTechTVAudio.com...
-

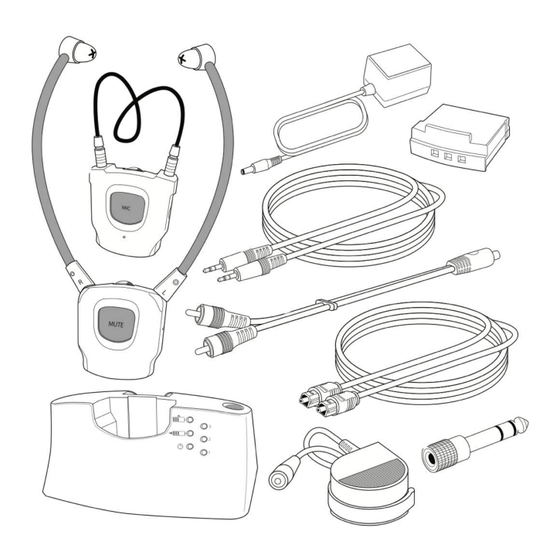

Page 2: Component Part List
4. Check to see which type of audio output your TV has. Connect transmitter 8. 6.3mm (1/4”) to 3.5mm Adapter Plug to TV by following the appropriate illustration in the set-up guide. 9. External Microphone 5. Enjoy! EarTech TV Audio User Manual... -
Page 3: How To Use
How to use: How to use: EarTech TV Audio with under-the-chin Headset Receiver EarTech TV Audio Neckloop Receiver 1. Turn on your sound source (e.g. TV). CAUTION: If you have a heart pacemaker, contact your physician or the manufacturer of the pacemaker before using the neckloop, to ensure that the pacemaker is not 2. -
Page 4: Balance Control
Default Bass Boost + Treble Boost Treble Boost Bass Boost Balance control (EarTech TV Audio headset receiver and Listening with the 3.5 mm stereo output (Neckloop) the 3.5 mm stereo output of the neckloop receiver only.) ear buds or headphones Balance Control 3.5mm Output... -
Page 5: Volume Control
Lit green LED indicates extra battery is charging VOLUME Range EarTech TV Audio uses the newest 2.4GHz technology. In optimal cases the range is up to Lit green LED indicates 30.5 meters (100 feet). receiver battery is charging The 2.4GHz radio frequency technology also works through walls. The range depends greatly on the building and the environment. -
Page 6: Cleaning And Care
The hypoallergenic silicone ear tips should be replaced if they become worn or damaged. Connect to TV via RCA cable New silicone tips can be ordered from your EarTech TV Audio distributor. IMPORTANT: TV must have Audio OUT jacks. (Will not work on Audio IN jacks.) -
Page 7: Troubleshooting
The audio signal input level may be too high. Lower the volume from the audio source. Need assistance? Call us at 1-888-327-1299 (customer support hours Monday – Friday 8:00 am – 5:30 pm ET) or email info@EarTechTVAudio.com EarTech TV Audio User Manual... - Page 8 2.4GHz ISM BAND Operating voltage: Transmitter 5V Receiver 3.7 V Lithium Polymer Battery Frequency response: 20Hz - 20KHz Distortion: <0.5% Signal-to-noise ratio: >85dB Listening time: up to 6 hours Range: up to 30 meters (98.4 feet) (open area) EarTech TV Audio...
- Page 9 1-888-327-1299 info@EarTechTVAudio.com www.EarTechTVAudio.com P.O. Box 1516 Johnson City, TN 37605-1516 ETC ETTA DIG USER MNL ENG 1217 Rev A...
