Global Cache GC-100-06 Quick Start Manual

GC-100
DB9 DB9 DB9 DB25
male male female male
Data
RxD 2 3 2 3
TxD 3 2 3 2
Gnd 5 5 5 7
Data Flow Control
RTS 7 8 7 5
CTS 8 7 8 4
Modem Controls
DTR 4 6 4 6
DSR 6 ignored by the GC-100

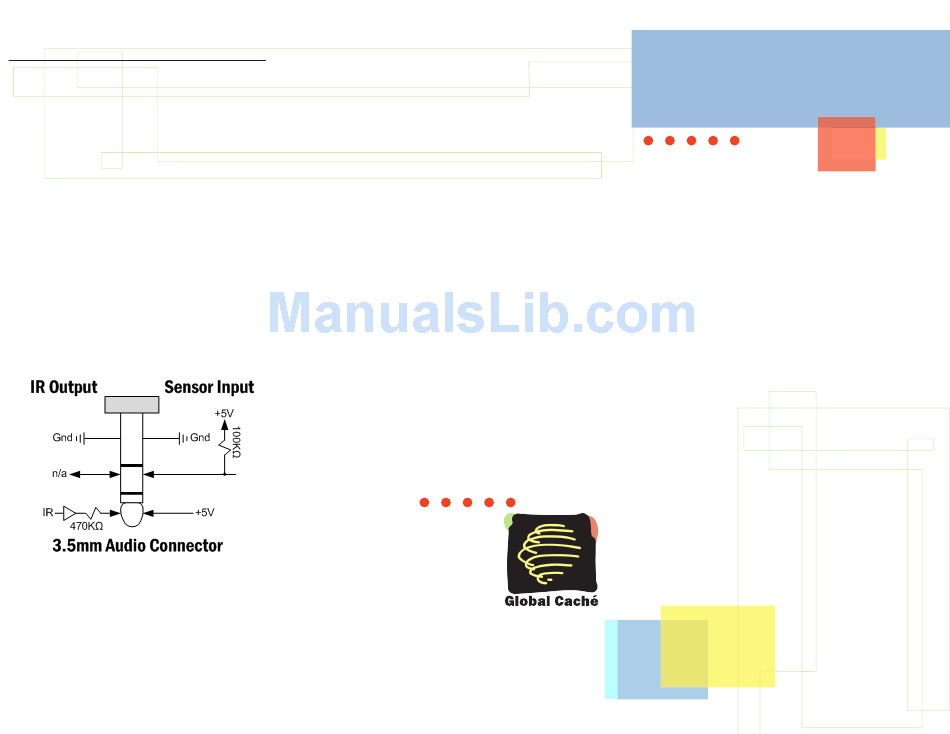

IR output and sensor input share a common
connector and indicator on the GC-100. Each 3.5mm
audio connector is independently configured using
the internal web pages or the GC-100 Discovery &
Configuration Utility available for download from
www.globalcache.com. Each connector has three
contacts configured as either an infrared (IR) output,
Control-S output (IR/no carrier), GC-BL2 IR Blaster
output, or sensor input, as shown below.
When configured as an output the indicator will blink
as an IR command is transmitted. When functioning
as a sensor, the indicator is "on" when a positive input
or no connection is present. The maximum sensor
input voltage is ±24V, with an "on" indication for
voltages greater than 2.5V and "off" when less than
0.8V with an input impedance of ~100KΩ.
When selected, IR commands can be transmitted
DB25
without their carrier frequency, as waveform envelopes.
female
This is used for direct audio/video inputs, such as
Control-S, or for modulating RF signals.
2
When configured in GC-BL2 Blaster mode, the
3
7 connector is to be used with a GC-BL2 IR Blaster. This
mode supports the Global Caché GC-BL2 IR Blaster
only.
4
5
Sensor Notifications
changes in sensor state. Any connector configured as an
input with auto-notify will send notifications. The state
20
of a sensor can also be polled at any time.
This device complies with Part 15 of FCC rules and with ICES-
003 of Industry Canada. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
Global Caché, Inc.
160 East California Street
PO Box 1659
Jacksonville, Oregon 97530
Phone (541) 899-4800
Fax (541) 899-4808
www.globalcache.com
Support: support@globalcache.com
Sales: sales@globalcache.com
General Info: info@globalcache.com
Copyright ©2008 Global Caché, Inc. All rights reserved.
PN: 030127-02 ver.12/Information subject to change without
notice.
are used to automatically signal
Quick Start Guide
Global Caché
GC-100-06

Network Adapter

The GC-100-06 Network Adapter connects
diverse and previously unconnected devices and
appliances in a network-based home, school
or business. Using many commonly needed
controls and sensor inputs in one box, the GC-
100 provides an easy way for controlling real-
world devices, reducing the time and complexity
of an installation by eliminating piggybacked
components and multiple power supplies. By
simply sending commands over the network, your
audio/visual equipment is turned to the proper
volume by infrared (IR), shades are lowered with
relays (on the GC-100-12), and your favorite
DVD is selected through serial communications;
and all started with the push of a button. As a
result of using open standards TCP/IP, any
networked device, such as your PC, can send
and retrieve GC-100 data. With the GC-100, a
variety of devices can be connected to control and
monitor the environment over a network or even
the Internet.
The GC-100 is designed to work with many of
the popular control software packages. These
packages contain the drivers needed for the proper
operation of the GC-100, as well as, an easy-to-
use interface for configuring your automated
environment. It is required that such a package
be employed when using the GC-100 product
family.
