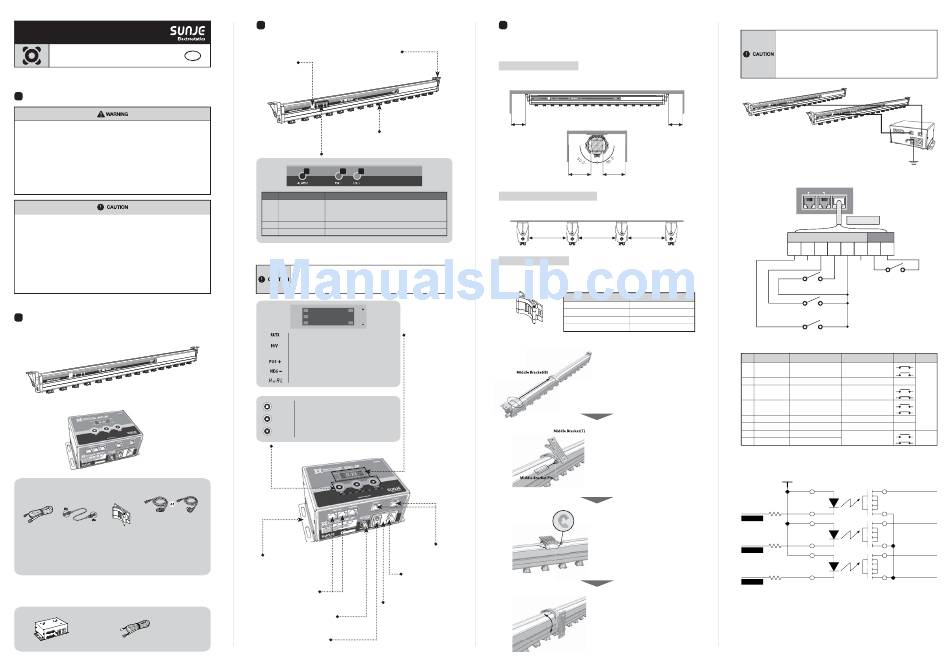

Sunje SRB-1300 Instruction Manual

Instruction Manual
SRB
Series
Eng
It is recommended that only persons who have sufficient knowledge and experience such as system
designers and responsible persons deal with this product after carefully reading the product manual.

The matters of safety

1
* If the equipment is used in a manner not specified by the manufacturer,
the protection provided by the equipment may be impaired.
* Do not let the water touch the product. It may cause electric shock or fire due to malfunction.
* When you check or maintain the product, make it sure you turn off the power.
It may cause electric shock or fire due to malfunction.
* Secure the product firmly when you want to secure it. There is a possibility of accident due to fall-over or malfunction, etc.
* Secure working space when you install the product. If working space is not secured, the checking or maintenance of
the product is made impossible leading to failure of the product.
* Do not use the product at the place where dangerous material such as inflammable or ignitable material exists.
This product is not the product of anti-explosive type.
* This device is made only for industrial uses. You need to ground the device beforehand.
Otherwise, there are in case of malfunction, electric shock, or fire damage.
* Do not contact the discharge needle or terminal with power applied. There is a possibility of electric shock or malfunction.
* Handle the discharge needle with care as its tip is very sharp.
* Connect wires referring to the product manual. Wrong connection can cause failures.
* Take precautions as cables of the adaptor, the power line and communication line of each product may disconnect.
If the cable is damaged, replace it immediately.
* Do not install the device where the vibration can be detected.
Any minor impact or vibration on the device, the malfuction or danger of accident might happen.
* Do not use the product for the purpose outside of the range of the product use.
If the product is used for the purpose outside of the range of the use,
it can result in the trouble or the shortened service life. Or an unexpected problem may occur.
* The ionizer generates ozone(below 0.05ppm).
If you sense the smell of ozone when you use more than two units, ventilate the air.
* When installing or transporting the ion bar, be prepare not to bend the item during the process.

Check the package contents

2
▶ Product compositions
The package includes the following products composition.
Ion Bar
SRB Series / 2ea
Power Controller
SRC-2P / 1ea
* Power Cable
SPC-MT-1-001
Output Cable Ground Cable Middle Bracket
AC 100V, 50/60Hz, 1.8m / 1ea
SOC-RB-1-001 SGC-MT-2-001 SBR-B7-2-001 or
10m / 2ea 1m /Ø4-Ø4[mm] 0~3ea * Power Cable
SPC-MT-2-001
/ 1ea
AC 220V, 50/60Hz, 1.8m / 1ea
▶ Option
If you require extra functions with the basic accessories we provided, you need to purchase optional
items in below for further assistant.
Signal Cable
RMS Controller
SUC-MT-2-001
RMSU
10m
01

Nomenclatures of parts

3
▶ Ion Bar (SRB Series)
Side Bracket
A bracket to fix the item
Input Terminal
on the facing target.
This terminal is for
controlling and power
supply of a ion bar.
Discharge Needle
The needles for
generating +/- ions.
Indicator Light
1 2 3
NO Name Function
When H/V unit has some problem to generate high-voltage,
1 Alarm LED alarm LED is turned on.
(When it shows the difference more than about ±30% with setting value.)
2 POS(Positive) LED (+) high voltage normal operating signal.
3 NEG(Negative) LED (-) high voltage normal operating signal.
▶ Power Controller (SRC-2P)
* Please try to input your power connection with an exclusive power controller(SRC-2P)
of SRB Series.
* The composition of a package(1set) can be consisted of a controller and two ion bars.
We recommand you to purchase and install as a package as a unit.
RX/TX 8.8.8.8. POS
H/V NEG
The LED for RMS(Real Monitoring System) operating.
When H/V unit has some problem to generate high-voltage,
H/V LED is turned on. (When it shows the difference
more than about ±30% with setting value.)
(+) high voltage normal operating signal.
(-) high voltage normal operating signal.
When H/V unit has some problem to generate high-voltage.
This button is used for various settings.
SET
(Address, Output Time, Output Voltage)
UP Use it when you increase the setting value.
DOWN Use it when you decrease the setting value.
Settings Buttons
Mounting Bracket
The bracket for
mounting SRC-2P.
RMS(Real Monitoring System)
Communication Terminal
Used to RMS(Real Monitoring System)
communication.
Ground Terminal
Used to connect the ground cable.
Power Switch
The switch to turn on/off the power.
02

Installation and connection

4
▶ Ion bar installation
When you install the ion bar, Please check the distance between ion bar and object.
※ Please, handle with care when you carry or install not to break or bend an ion bar.
Interference by Grounding Matters
If there is any conductive object close to ion bar, SRB Series may not operate properly.
Please install it with reference to figure below.
Min 150mm
Side to Side Installation (More than two sets)
When the more than two ion bars are installed, to avoid interference,
the range between two ion bars should be more than 400mm.
Min 400mm
Installation by Middle Brackets
The middle bracket is used to protect bending problem by the weight of ion bar. Please fix the middle
bracket with M4 bolts. The number of supporting middle bracket will differ from the models.
※ Ion Bar Middle Bracket Quantity
Middle Bracket
Display
Can check the status of
the ion bar's operation.
Middle Bracket Installation
■
E ring
(Middle Bracket Pin fixing)
Output Terminal
This terminal is for controlling
and power supply of a ion bar
#1 and #2.
Power Input
Used to power supply.
(AC 100V~240V, 50/60Hz)
Fuse
250V, 1A Glass Type
03

▶ How to connect the power controller

Min 150mm

▶ Interface

Min 200mm Min 200mm
Min 400mm Min 400mm
Model Middle Bracket Quantity
SRB-1100 ~ 1300 -
SRB-1500 ~ 1800 1ea
SRB-2000 ~ 2300 2ea
SRB-2500 ~ 3200 3ea
No
1
a. Adjust a "Middle Bracket(B)" to set an ion bar in your
2
expected area of installation.
3
4
5
6
7
8
※ The device must be grounded to prevent electric shock in order to function well.
b. Assemble "Middle Bracket(T)" and
"Middle Bracket Pin" as shown in the figure.

▶ Circuit (Photo Relay Output)

RUN/STOP
c. Place two "E rings(Middle Bracket Pin fixing)" into a
"Pin side" to install a middle bracket.
H/V Alarm 1
H/V Alarm 2
d. After assembling a middle bracket, face the ion bar
using a middle bracket that can point to the proper
target area.
04
* If you use a power controller without an exclusive SRB Series componenet,
it might cause product malfunction.
* The composition of a package(1set) can be consisted of a controller and two ion bars.
If you only use one ion bar to the specified controller, it might not function properly.
We recommand you to purchase and install as a package as a unit.
* The maximum installation length from an ion bar to controller is 10 meter.
If it exceeds, it might not function properly.
Output Cable
Max Length : 10m Output Cable
Max Length : 10m
Ground Cable ound Cable
Length : 1m / Ø4-Ø4[mm]
RMS LINK INTERFACE
Remote, Alarm
Output Input
1 2 3 4 5 6 7 8
Not Used Not Used
Remote
(Close : Stop, Open : Run)
H/V Abnormal 2
(Close : Alarm, Open : Normal)
H/V Abnormal 1
(Close : Alarm, Open : Normal)
Run/Stop State
(Close : Run, Open : Syop State)
Color Function Input / Output Picture Remarks
Run
Photo Relay Output
Brown Run/Stop State
(Run-Close, Stop-Open) Stop
White & Brown Not Used - -
Normal
Photo Relay Output
Output
Orange High Voltage Abnormal 1
(Normal-Open, Alarm-Close)
Alarm
Normal
Photo Relay Output
White & Orange High Voltage Abnormal 2
(Normal-Open, Alarm-Close)
Alarm
Green Common - -
White & Green Not Used - -
Run
Blue Remote 1
Remote
Input
(Close : Stop, Open : Run)
White & Blue Remote 2 Stop
+5V
1. Run/Stop State
3. H/V Abnormal Alarm 1
4. H/V Abnormal Alarm 2
5. Common
