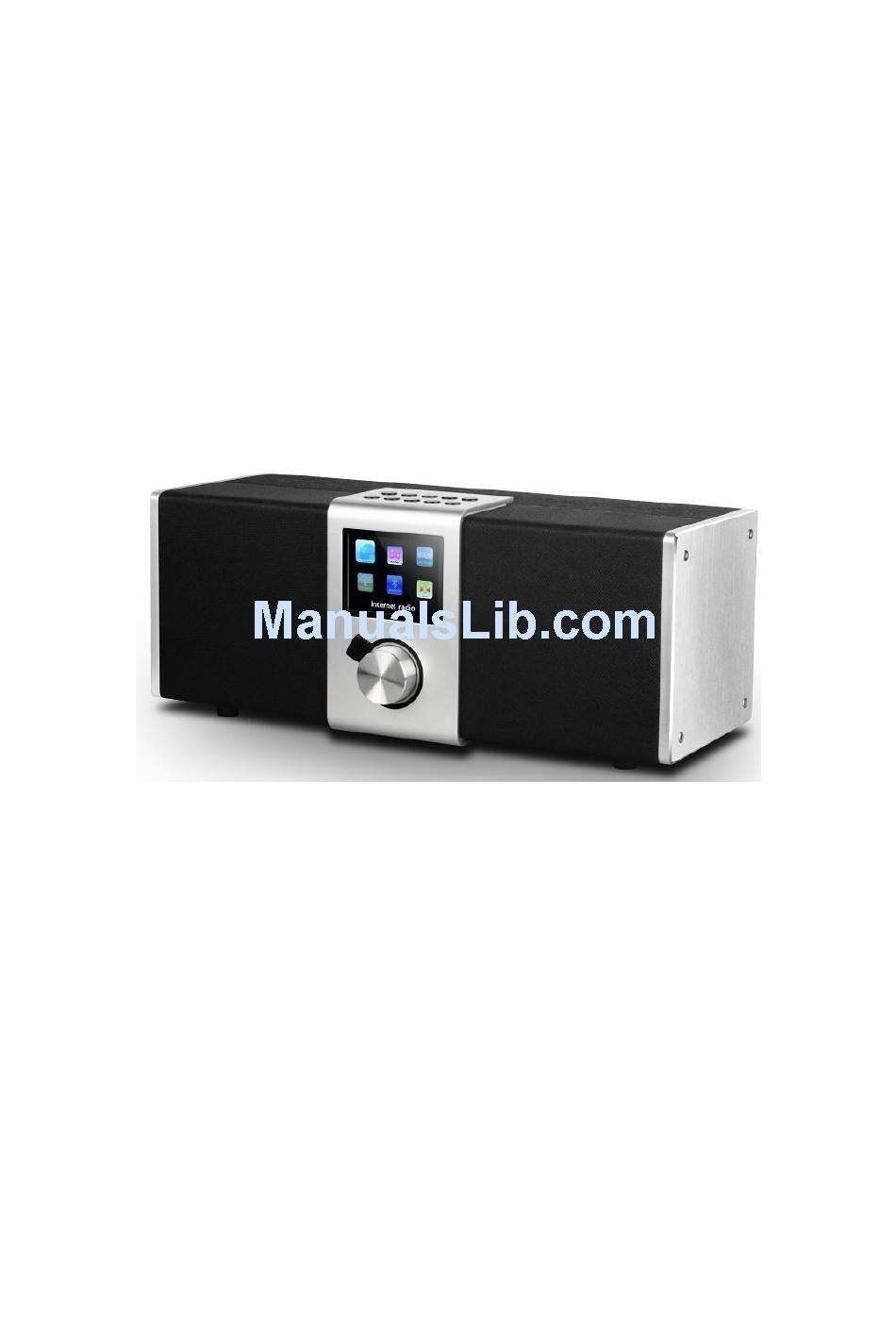

NOXON
NOVA II
User Manual
Thank you very much for buying the NOXON NOVA II. In order to let you freely operate the
product and fully enjoy the overbalancing happiness it brings you, we have introduced each
function of the player in detail in this user manual. Please carefully read this user manual
before use and keep for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOVA II and is the answer not in the manual?

Questions and answers

Summary of Contents for Noxon NOVA II

  • Page 1 NOVA II User Manual Thank you very much for buying the NOXON NOVA II. In order to let you freely operate the product and fully enjoy the overbalancing happiness it brings you, we have introduced each function of the player in detail in this user manual. Please carefully read this user manual...

  • Page 2: Table Of Contents

    Table of Contents 1. Network Requirement 2. Safety Precaution 3. Appearance and Key Description 4. Getting Started 5. NOXON NOVA II Functions Main Menu System Settings Internet Radio Spotify Connect Music Player DMR (DLNA streaming) Bluetooth 5.10 AUX IN 5.11 Sleep 5.12...

  • Page 3: Network Requirement

    These might lead to damage to the device. • If the NOXON NOVA II is moved from a cold environment into a warmer one, do let it adapt to the new temperature before operate the device. Otherwise, it might lead to condensation and cause malfunctions in the device.

  • Page 4: Appearance And Key Description

    Never use any harsh or strong solvents to clean the NOXON NOVA II since these may damage the surface of the device. Dry, soft cloth is appropriate, however, if the NOXON NOVA II is extremely dirty, it may be wiped off with a slightly moist cloth. Make sure the device is dried off after cleaning.
  • Page 5 Description Functions Ambient light senor Receives ambient light from the environment Buttons Standby, Menu/Info, Mode, Tune-, Tune + and 5 preset buttons 3.2” TFT Screen Color display Back button Back function Reel Volume / Navigate / Press to OK...

  • Page 6: Remote Controller

    Antenna socket F-connector antenna On/Off switch Power On/off Earphone socket 3.5mm socket for earphone connection Line In 3.5mm socket for speaker connection Line Out 3.5mm socket for speaker connection DC IN Power supply SPDIF OUT SPDIF socket for audio in connection to Hi-Fi system USB port Plug the USB drive, portable hard disk or MP3 player for music playback (no charging function)

  • Page 7: Getting Started

    At the first time operation, system asks if you want to start the Setup Wizard. Select YES to continue the setup. Details of the Setup Wizard can be referred to Section 5.2.1 below. After choosing NO, the next screen asks if you would like to run the wizard next time NOXON NOVA II is started.

  • Page 8: Noxon Nova Ii Functions

    Allow to share your media to NOXON NOVA II XXXXXXXXXXXX, which is the device name for music streaming. Add the audio files and folders you want to share with NOXON NOVA II to the media library. 5. NOXON NOVA II Functions...
  • Page 9 • Time/date Display format Select 12 or 24 as the time format. Auto-update The time and date can be updated manually or automatically from DAB, FM or network. Auto-update works with data sent over DAB, FM or the Internet. The clock is only updated when in a corresponding mode, so it is best to select a mode you use regularly.
  • Page 10 – Backspace, OK and Cancel. WPS encrypted network WPS encrypted networks are identified by WPS at the start of the network name when the NOXON NOVA II searches the available AP. Use one of the following methods of connection: Push button NOXON NOVA II prompts you to press the connect button on the router.
  • Page 11 Completion NOXON NOVA II attempts to connect to the selected network. It will show connected if the setup is successful. If connecting fails, NOXON NOVA II returns to a previous screen to try again. Press the reel or OK on the remote control to quit the setup wizard.
  • Page 12 If you choose to keep network connected, the WiFi will not disconnect even you are in standby mode. Otherwise, the connection will only available. This option allows NOXON NOVA II to be ready for DLNA streaming in any operating modes. Details for DLNA streaming, refer to Section 5.6.

  • Page 13: Internet Radio

    You may change the Standby Clock format to Analog or Digital. Internet Radio NOXON NOVA II can play thousands of radio stations and podcasts from around the world though a broadband Internet connection. When you select Internet radio, NOXON NOVA II directly contacts the Frontier Silicon Internet radio portal (which is supported by v-tuner) to get a list of stations.

  • Page 14: Last Listened

    Internet radio portal. To register your NOXON NOVA II, choose Station list > Help > Get access code to get your radio’s unique portal access code first. (Do not confuse the portal access code...
  • Page 15 Visit the portal website at www.wifiradio-frontier.com If this is your first visit to the portal, register for a new account, entering the following information: access code, your e-mail address, password, radio model. If you already have an account and wish to add an additional radio, log in to your account and select My preferences >...

  • Page 16: Spotify Connect

    Each time you press Menu/Info on the device or INFO on the remote control, another set of information is displayed, cycle through name/description, genre/location, reliability, codec/sampling rate, playback buffer and today’s date. 5.4 Spotify Connect Using This Device With Spotify Connect A better way to listen at home Spotify Connect lets you play Spotify through your home speakers or TV, using the Spotify app as remote.

  • Page 17: Usb Playback

    From this point on, the menus are generated from the shared media server. The first menu shows a list of media types, for example Music, Video, Pictures and Playlists. NOXON NOVA II can only play music and playlists. There is also a search function which finds tracks in a similar way to Internet radio search.

  • Page 18: Dmr (Dlna Streaming)

    NOXON NOVA II. You can share the music files from PC, Android mobile or tablet, and directly use your PC, Android mobile, tablet or iPhone / iPad to control music playback on the NOXON NOVA II. It is simple called DLNA streaming.
  • Page 19 Open Windows Media Player to enable Allow remote control of my Player. Right click any music in the library and choose Play to NOXON NOVA II XXXXXXXXXXXX. A box of music playback pops up for the streaming.

  • Page 20: Dab

    It is suggested to use BubbleUPnP on Android mobile, tablet or iPhone/iPad. Procedures for playing shared music on the app are as follows: Select NOXON NOVA II XXXXXXXXXXXX as the player. Select music server and choose the music. NOTE: Some Apps may not support streaming music from iPhone/iPod but iPhone/iPod could still be used to control streaming music from other servers.
  • Page 21 The first time you select DAB radio mode, or if the station list is empty, NOXON NOVA II automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons: Available stations change from time to time.
  • Page 22 To find a station, press the reel or OK on the remote control. The frequency display starts to run up as NOXON NOVA II scans the FM band. Alternatively, you can scan up or down by pressing and holding the buttons or tune manually with quick presses, or by turning the reel.

  • Page 23: Bluetooth

    NOXON NOVA II is waiting for pairing, there is a blinking Bluetooth icon at the bottom. Control the music playback from your Bluetooth device. To unpair from NOXON NOVA II, press and hold Menu/Info on the device or press MEUN on...

  • Page 24: Aux In

    Aux in mode plays audio from an external source such as an MP3 player. To play audio with Aux in mode: Turn the volume low on both NOXON NOVA II and, if adjustable, the audio source device. Connect the external audio source to the Aux in 3.5mm stereo socket.

  • Page 25: Extra Features

    Extra Features 5.13.1 Headphone jack NOXON NOVA II featured with headphone jack for you to continue enjoying the music in vary environments, such as noisy background, or the area that requires every one keeping silent. It is recommended to reduce the volume before put on the headphones. After the headphones are positioned properly, increase the volume to the desired level.
  • Page 26 5.13.3 SPDIF out socket It allows you to connect an Optical audio cable from the device to your own HiFi speaker system to enhance sound performance. 5.13.4 NetRemote (UNDOK) The device gives a feature of NetRemote by smartphone or tablet in iOS or Android system.
  • Page 27 Go to Spotify app to choose the music from your Spotify playlist. Tap the Spotify icon on the Spotify app, then choose the preferred device (NOXON NOVA II). It should be displayed in the Spotify app. Once selected, music will be...
  • Page 28 streaming to the device. • Music Player Browse the music files from shared media, choose music from the app. • Browse the scanned DAB+ stations, choose the station and view the rolling text of station from the app. • Manual search or scan the stations from the app.

  • Page 29: Troubleshooting

    From the app, you can also control to operate STANDBY/ON, EQUALIZER, CHANGE PIN and RENAME of the device under SETTING menu For CHANGE PIN setting, please also refer to Section 5.2.3. RadioVIS is a channel for broadcasters to deliver Slideshows over the Internet. RadioVIS Slideshows appear like the DAB+ slideshows, they are closely associated with the broadcasted audio service.
  • Page 30 3. Not all MP3 players can be read directly on the device – use an USB drive instead. All other undetermined cases. NOXON NOVA II may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot NOXON NOVA II if necessary.

  • Page 31: Specifications

    7. Specification Model number NOXON NOVA II Description Internet Radio with FM/DAB+/BT/Spotify Connect Display 3.2", 320 x 240, TFT colour display Network supported IEEE 802.11b/g/n wireless (WiFi) Bluetooth (BT 4.0, Supports A2DP, AVRCP profiles) Frequency band WiFi : 2.400 - 2.4835 GHz Bluetooth: 2.4GHz - 2.48 GHz...
  • Page 32 Use only the power supply listed in the user instructions This product operates under Wi-Fi mode at 2.412-2.472GHZ and is designated only to be used inside a normal household environment. This product is suited for this purpose within all EU counties.
