AVD Security Moonlight 600TV User Manual

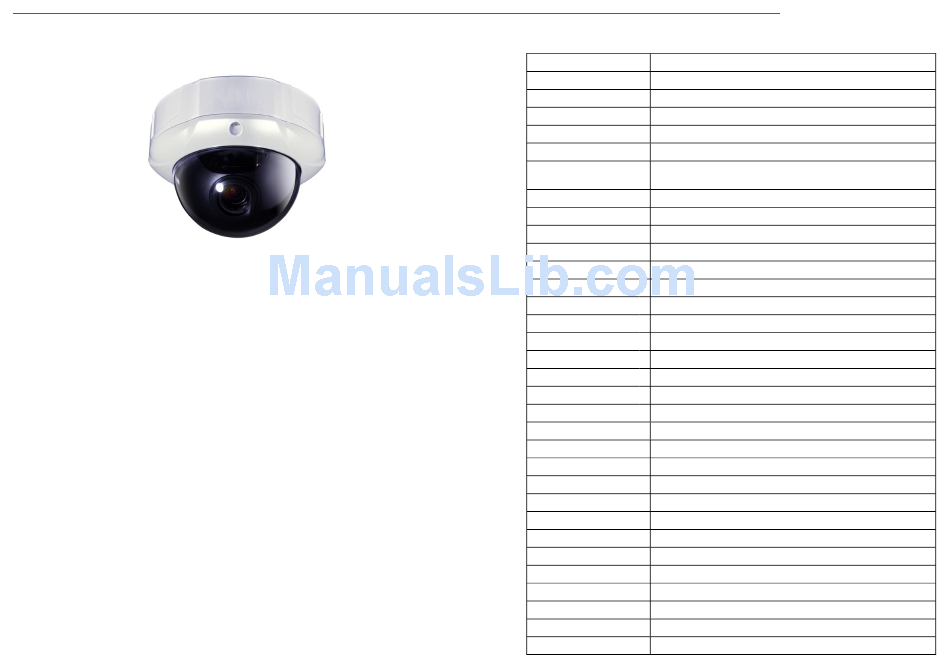

Moonlight 600TVL Vandal proof Dome

Feature:

1/3" Sony Super HAD II CCD, Hitachi 14bit DSP

Super High Resolution 600TVL

Low illumination 0.00005Lux

Aspherical 2.8-10mm Lens with Auto Iris and IR-CUT Module

Full OSD operation Controlled via RS485 or OSD joystick inside

Can always remain in color in low light conditions

Dual Power DC12/ AC24V Optional

Vandal proof Dome


Installation:

To prevent shock or damage to the waterproof body, tighten all the screws and cover

Adjust the visor to prevent the lens from direct sunlight

Do not directly touch the front glass. To clean the dust, wipe with soft cloth with alcohol.

Don't install it in the place where dithering and shake often

Don't install it in the place where temperature is above 50°C or below –20°C

Video line tie-in and DC tie-in must be avoided to touch water.

If abnormal, please power off and contact the manufacturer

N o t e : Non-regulated power supply may cause camera damaged.

Technical Specifications:

Model No.
Video System
Sensor 1/3" Sony Super HAD II CCD Hitachi 14bit DSP
Pixel
Resolution
Lens Aspherical 2.8-10mm Lens with Auto Iris and IR-CUT
COLOR,B/W(Saturation protection Erea Select),EXT,
True Day & Night
Sync.
Scanning
Signal Noise Ratio
Burst Level
ECLIPSE
3D-XDNR
SBLC
D-EFFECT
D-ZOOM
Motion Detection
Privacy Mask
Communication
Electronic Shutter NTSC: 1/60-1/60,000S; PAL: 1/50-1/60,000S
White Balance
Backlight Compensation
Auto Gain Control
Gamma Correction
Video Output
Min. Illumination
Voltage Input
Power Current
Operation Temp.
Storage Temp.
Humidity Range
Dimension
Net Weight
User's Manual
IV-MS6860VPA
NTSC/ PAL System
NTSC: 768H*494V; PAL: 752H*582V
600TVL(Color), 650TVL(B/W)
AUTO(D/N LEVEL;LOW/MIDDLE/HIGH)
Internal
2:1 Interlace
50dB Min.
0.286Vp-p
DAY/ NIGHT (BLACK/ GRAY)
OFF, ON (0~20), COLOR SUPRESSION
OFF/ LOW/ MID/ HIGH
MIRROR (H /V /ROTATE), FREEZE
LEVEL, LIMIT
ON/ OFF (4 Programmable Zone)
ON /OFF (4 Programmable Zone)
RS485, PELCO-D Protocol
ATW/ MANUAL/ PUSH
OFF, ON (ZONE ADJUSTABLE)
Off/ On (0~20)
0.35/ 0.4/ 0.45/ 0.65/ 0.75 Selectable
1V p-p,75Ω
0.00005Lux
DC12V (+20% -10%)
180mA Max
-10°C~50C
-20°C~60°C
30%~80% RH
ø128*98 mm
720g
