Spatz HDMIGEN Quick Manual

High-definition multimedia interface pattern generator
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

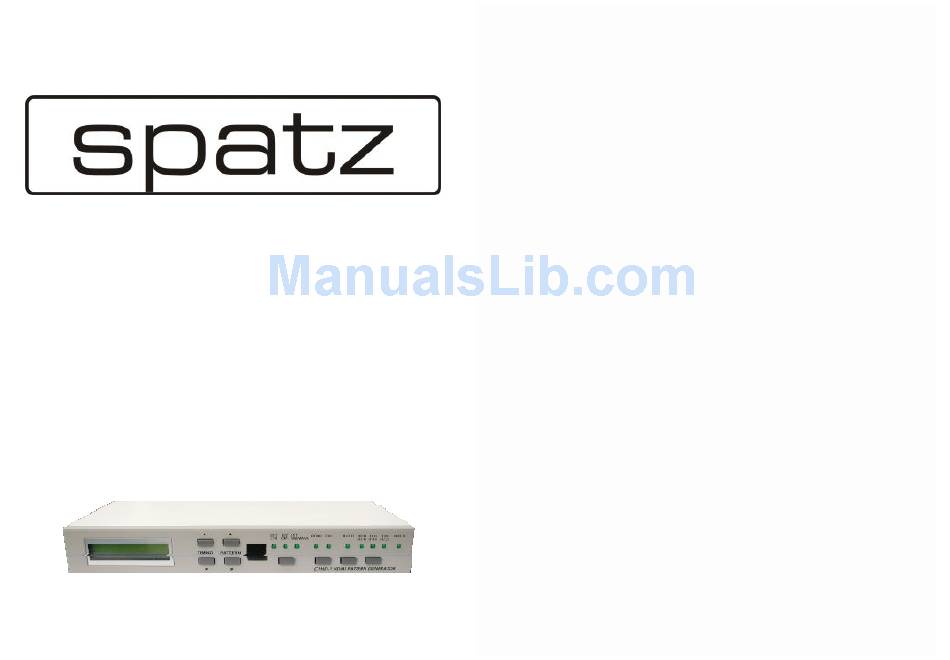

HDMIGEN
High-Definition Multimedia Interface
Pattern Generator
Quick Guide
1. Features and Specifications .............................................................. 3
Features ............................................................................................... 3
Specifications ...................................................................................... 3
RS-232 Protocol ................................................................................... 3
2. Front Panel Operation ........................................................................ 4
3. Rear Panel Installation and Connection ......................................... 5
4. TIMING Table ...................................................................................... 6
5. PATTERN Table .................................................................................... 7
6. Remote Control ................................................................................. 12
7. RS232 Remote Control Application.................................................. 13
7.1 Main Window................................................................................ 13
7.2 Select COM port to control ........................................................ 13
7.3 Switch TIMING ............................................................................... 14
7.4 Switch PATTERN ............................................................................ 15
7.5 Programming TIMING/PATTERN .................................................. 16
7.6 EDID ............................................................................................... 18
HDMIGEN

TABLE OF CONTENTS

7.6.1 Read EDID ............................................................................ 18
7.6.2 Memory of EDID .................................................................... 18
7.6.3 Upload EDID .......................................................................... 18
7.6.4 Write EDID .............................................................................. 18
