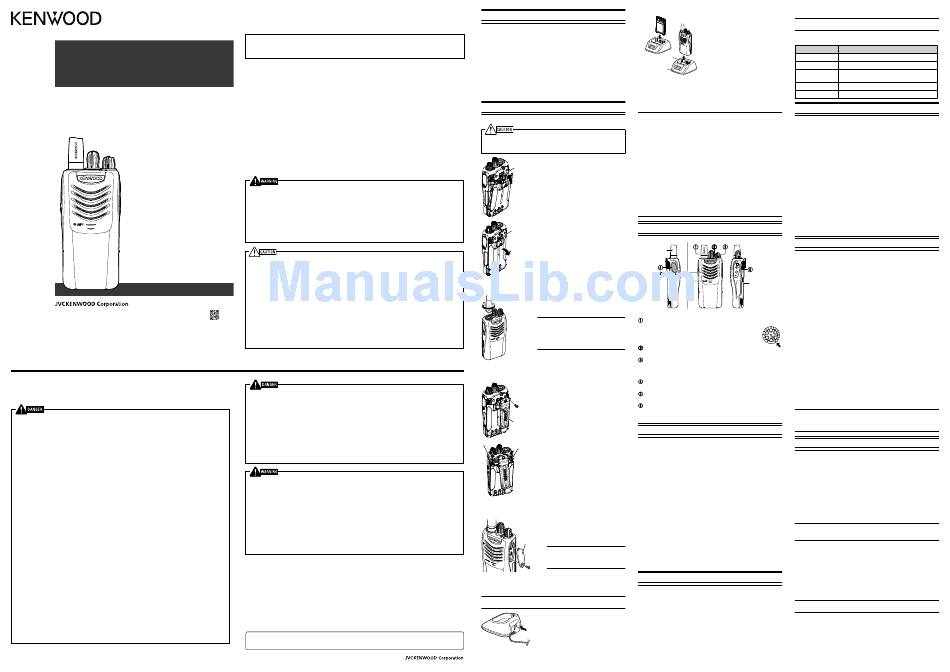

Kenwood TK-2000 Instruction Manual

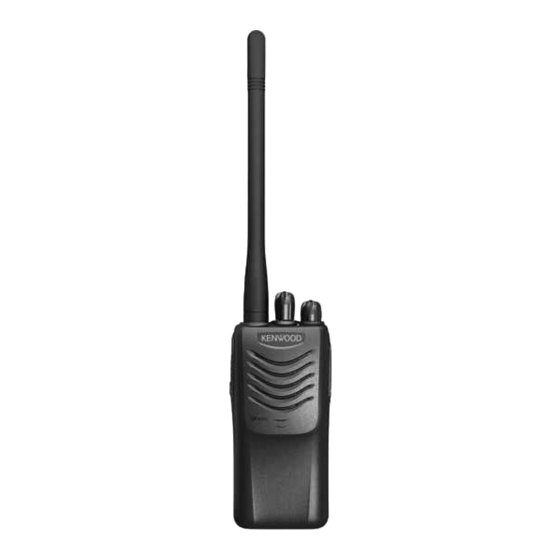

TK-2000
TK-3000
VHF FM TRANSCEIVER
UHF FM TRANSCEIVER
INSTRUCTION MANUAL
B5A-1987-00 (K)
Information concerning the battery pack:
The battery pack includes flammable objects such as organic solvent. Mishandling may cause
the battery to rupture producing flames or extreme heat, deteriorate, or cause other forms of
damage to the battery. Please observe the following prohibitive matters.
• Do not disassemble or reconstruct battery!
The battery pack has a safety function and protection circuit to avoid danger. If they suffer serious
damage, the battery may generate heat or smoke, rupture, or burst into flame.
• Do not short-circuit the battery!
Do not join the + and – terminals using any form of metal (such as a paper clip or wire). Do not carry or
store the battery pack in containers holding metal objects (such as wires, chain-necklace or hairpins).
If the battery pack is short-circuited, excessive current will flow and the battery may generate heat or
smoke, rupture, or burst into flame. It will also cause metal objects to heat up.
• Do not incinerate or apply heat to the battery!
If the insulator is melted, the gas release vent or safety function is damaged, or the electrolyte is
ignited, the battery may generate heat or smoke, rupture, or burst into flame.
• Do not leave the battery near fire, stoves, or other heat generators (areas reaching over
80°C)!
If the polymer separator is melted due to high temperature, an internal short-circuit may occur in the
individual cells and the battery may generate heat or smoke, rupture, or burst into flame.
• Do not immerse the battery in water or get it wet by other means!
If the battery's protection circuit is damaged, the battery may charge at extreme current (or voltage)
and an abnormal chemical reaction may occur. The battery may generate heat or smoke, rupture, or
burst into flame.
Do not charge the battery near fire or under direct sunlight!
•
If the battery's protection circuit is damaged, the battery may charge at extreme current (or voltage)
and an abnormal chemical reaction may occur. The battery may generate heat or smoke, rupture, or
burst into flame.
• Use only the specified charger and observe charging requirements!
If the battery is charged in unspecified conditions (under high temperature over the regulated
value, excessive high voltage or current over regulated value, or with a remodeled charger), it may
overcharge or an abnormal chemical reaction may occur. The battery may generate heat or smoke,
rupture, or burst into flame.
• Do not pierce the battery with any object, strike it with an instrument, or step on it!
This may break or deform the battery, causing a short-circuit. The battery may generate heat or
smoke, rupture, or burst into flame.
• Do not jar or throw the battery!
An impact may cause the battery to leak, generate heat or smoke, rupture, and/or burst into flame.
If the battery's protection circuit is damaged, the battery may charge at an abnormal current (or
voltage), and an abnormal chemical reaction may occur. The battery may generate heat or smoke,
rupture, or burst into flame.
• Do not use the battery pack if it is damaged in any way!
The battery may generate heat or smoke, rupture, or burst into flame.
• Do not solder directly onto the battery!
If the insulator is melted or the gas release vent or safety function is damaged, the battery may
generate heat or smoke, rupture, or burst into flame.
THANK YOU
We are grateful you have chosen KENWOOD for your land mobile radio applications.
NOTICES TO THE USER
◆ Government law prohibits the operation of unlicensed radio transmitters within the territories under
government control.
◆ Illegal operation is punishable by fine and/or imprisonment.
◆ Refer service to qualified technicians only.
Safety: It is important that the operator is aware of, and understands, hazards common to the
operation of any transceiver.
PRECAUTIONS
• Do not charge the transceiver and battery pack when they are wet.
• Ensure that there are no metallic items located between the transceiver and the battery pack.
Do not use options not specified by KENWOOD.
•
• If the die-cast chassis or other transceiver part is damaged, do not touch the damaged parts.
• If a headset or headphone is connected to the transceiver, reduce the transceiver volume. Pay
attention to the volume level when turning the squelch off.
• Do not place the microphone cable around your neck while near machinery that may catch the
cable.
• Do not place the transceiver on unstable surfaces.
• Ensure that the end of the antenna does not touch your eyes.
• When the transceiver is used for long transmissions, the radiator and chassis will become hot. Do
not touch these locations when replacing the battery pack.
• Do not immerse the transceiver in water.
• Always switch the transceiver power off before installing optional accessories.
• For safety reasons, we recommend that the AC adapter (for the battery charger) should be
connected to an easily accessible AC socket.
Turn the transceiver power off in the following locations:
• In explosive atmospheres (inflammable gas, dust particles, metallic powders, grain powders, etc.).
• While taking on fuel or while parked at gasoline service stations.
• Near explosives or blasting sites.
• In aircrafts. (Any use of the transceiver must follow the instructions and regulations provided by the
airline crew.)
• Where restrictions or warnings are posted regarding the use of radio devices, including but not
limited to medical facilities.
• Near persons using pacemakers.
• Do not disassemble or modify the transceiver for any reason.
• Do not place the transceiver on or near airbag equipment while the vehicle is running. When the
airbag inflates, the transceiver may be ejected and strike the driver or passengers.
• Do not transmit while touching the antenna terminal or if any metallic parts are exposed from the
antenna covering. Transmitting at such a time may result in a high-frequency burn.
• If an abnormal odor or smoke is detected coming from the transceiver, switch the transceiver power
off immediately, remove the battery pack from the transceiver, and contact your KENWOOD dealer.
• Use of the transceiver while you are driving may be against traffic laws. Please check and observe
the vehicle regulations in your area.
• Do not expose the transceiver to extremely hot or cold conditions.
• Do not carry the battery pack with metal objects, as they may short the battery terminals.
• Danger of explosion if the battery is incorrectly replaced; replace only with the same type.
• When operating the transceiver in areas where the air is dry, it is easy to build up an electric charge
(static electricity). When using an earphone accessory in such conditions, it is possible for the
transceiver to send an electric shock through the earphone and to your ear. We recommend you
use only a speaker/microphone in these conditions, to avoid electric shocks.
• Do not reverse the battery polarity (and terminals)!
When charging a reversed battery, an abnormal chemical reaction may occur. In some cases, an
unexpected large amount of current may flow upon discharging. The battery may generate heat or
smoke, rupture, or burst into flame.
• Do not reverse-charge or reverse-connect the battery!
The battery pack has positive and negative poles. If the battery pack does not smoothly connect
with a charger or operating equipment, do not force it; check the polarity of the battery. If the battery
pack is reverse-connected to the charger, it will be reverse-charged and an abnormal chemical
reaction may occur. The battery may generate heat or smoke, rupture, or burst into flame.
• Do not touch a ruptured and leaking battery!
If the electrolyte liquid from the battery gets into your eyes, wash your eyes with fresh water as soon
as possible, without rubbing your eyes. Go to the hospital immediately. If left untreated, it may cause
eye-problems.
Do not charge the battery for longer than the specified time!
•
If the battery pack has not finished charging even after the regulated time has passed, stop it. The
battery may generate heat or smoke, rupture, or burst into flame.
• Do not place the battery pack into a microwave or high pressure container!
The battery may generate heat or smoke, rupture, or burst into flame.
• Keep ruptured and leaking battery packs away from fire!
If the battery pack is leaking (or the battery emits a bad odor), immediately remove it from flammable
areas. Electrolyte leaking from battery can easily catch on fire and may cause the battery to
generate smoke or burst into flame.
• Do not use an abnormal battery!
If the battery pack emits a bad odor, appears to have different coloring, is deformed, or seems
abnormal for any other reason, remove it from the charger or operating equipment and do not use it.
The battery may generate heat or smoke, rupture, or burst into flame.
Firmware Copyrights
The title to and ownership of copyrights for firmware embedded in KENWOOD product memories are
reserved for JVC KENWOOD Corporation.
© 2016
UNPACKING AND CHECKING EQUIPMENT
Carefully unpack the transceiver. If any of the items listed
below are missing or damaged, file a claim with the carrier
immediately.
SUPPLIED ACCESSORIES
• Antenna .................................................................................. 1
• Battery charger/ AC adapter (KSC-35S) ................................ 1
Charging slot
• Li-ion Battery pack (KNB-63L) ................................................ 1
• Speaker/ microphone jack cover ............................................ 1
Indicator
• Belt clip (KBH-10) ................................................................... 1
• Screw with washer
(M3 x 8 mm) ................................................ 2
• Screw
(M3 x 6 mm) ..................................................................... 1
• Instruction manual .................................................................. 1
• It takes approximately 3 hours to charge the battery pack.
• When the charger will not be used for a long time, unplug
PREPARATION
the AC adapter from the AC outlet.
Note:
INSTALLING/ REMOVING THE BATTERY PACK
◆ When an abnormality occurs during charging, the indicator
performs as follows:
Blinks red: The battery pack is either defective or the battery
pack contacts are not properly mated with those of the charger.
◆ Do not short the battery terminals or dispose of the battery by
Alternates flashing green and orange: The battery pack
fire.
has not satisfied the charging start temperature. Remove the
◆ Never attempt to remove the casing from the battery pack.
battery pack from the charger and wait until it reaches a normal
temperature before charging it again.
1 To install the battery pack, align
◆ The ambient temperature should be between 5°C and 40°C
the base of the battery pack
Lock lever
while charging is in progress. Charging outside this range may
with the transceiver, then press
not fully charge the battery.
the battery pack into place until
◆ The battery pack life is over when its operating time decreases
the lock lever is secure.
even though it is fully and correctly charged. Replace the battery
pack.
◆ While operating the transceiver using a Li-ion battery pack
in areas with an ambient temperature of –10°C and lower,
operating time may be shortened.
◆ Attention should be drawn to the environmental aspects of
battery pack disposal.
2 To remove the battery pack,
push the lock lever up, then pull
Lock lever
the battery pack away from the
transceiver.
Antenna
INSTALLING THE ANTENNA
Screw the antenna into the connector
Antenna
on the top of the transceiver by holding
the antenna at its base and turning it
clockwise until secure.
Note: The antenna is neither a handle, Channel selector
Rotate to change the operating channel.
a key ring retainer, nor a speaker/
microphone attachment point. Using the • If your dealer has set the [S-Selector] function,
antenna in these ways may damage the rotate the Channel selector and select the "S"
antenna and degrade your transceiver's position to begin scanning.
performance.
LED indicator
Refer to the LED Indicator Status table.
Power switch/ Volume control
Turn clockwise to switch the transceiver ON. To switch the
transceiver OFF, turn counterclockwise until a click sounds.
INSTALLING THE BELT CLIP
Rotate to adjust the volume level.
PTT (Push to Talk) switch
If necessary, attach the belt clip using
Press and hold, then speak into the microphone to transmit.
the two supplied M3 x 8 mm screws
Side key
with washer.
Press to activate its programmable function.
Speaker/ microphone jacks
Insert the speaker/ microphone or headset plug into this
jack.
Belt clip
PROGRAMMABLE AUXILIARY FUNCTIONS
• To remove the battery pack when Your dealer can program the Side key each with one of the
Lever
Lever
the belt clip is attached, slide the
following functions.
left and right levers to the upper
■ None
side to release the lock of the
No function has been programmed.
battery. Then pull the battery pack
■ Autodial
away from the transceiver by lifting
up the belt clip. DTMF Autodial allows you to make a private call to another
party.
■ Monitor
Momentarily press this key to deactivate QT or DQT
signaling. Press the key again to return to normal operation.
■ Monitor Momentary
INSTALLING THE COVER OVER THE SPEAKER/
Press and hold this key to deactivate QT or DQT signaling.
MICROPHONE JACKS
Release the key to return to normal operation.
If you are not using a speaker/ ■ Scan
Speaker/ microphone, install the cover over Press this key to start scanning the transceiver channels.
microphone the speaker/ microphone jacks
■ Squelch Off
jack cover using the supplied M3 x 6 mm
Momentarily press this key to hear background noise. Press
screw.
the key again to return to normal operation.
Note: To keep the transceiver
■ Squelch Off Momentary
water resistant, you must cover the
Press and hold this key to hear background noise. Release
speaker/ microphone jacks with the
the key to return to normal operation.
supplied cover.
CHARGING THE BATTERY PACK
The battery pack is not charged at the factory; charge it before
1 Turn the Power switch/ Volume control clockwise to switch
use.
the transceiver power ON.
ATTENTION: Always switch OFF a transceiver equipped with a • A beep sounds if enabled by your dealer.
battery pack before inserting the transceiver into the charger.
2 Press the key programmed with the Monitor or Squelch Off
function to hear background noise, then rotate the Power
1 Plug the AC adapter cable into
switch/ Volume control to adjust the volume.
the jack located on the rear of the
3 Rotate the Channel selector to select your desired channel.
charger.
• When you receive an appropriate signal, you will hear audio
2 Plug the AC adapter into an AC
from the speaker.
outlet.
4 To make a call, press and hold the PTT switch, then speak
into the microphone using your normal speaking voice.
• Hold the microphone approximately 3 to 4 cm (1.5 inches)
from your lips.
5 Release the PTT switch to receive.
3 Slide a battery pack or a
transceiver equipped with a
Note: When the battery pack voltage becomes too low, transmission
battery pack into the charging
will stop and an alert tone will sound.
slot of the charger.
• Make sure the metal
LED Indicator Status
contacts of the battery pack
mate securely with the
Indicator Color
charger terminals.
• The indicator lights red and Lights red Transmitting
charging begins.
Lights green Receiving a call
4 When charging is completed,
the indicator lights green. Alternates red and
VOX gain level adjustment mode
green
Remove the battery pack
or the transceiver from the
Blinks red Battery power is low while transmitting
charging slot of the charger.
Blinks green Scanning
SQUELCH LEVEL SETTING
To adjust the Squelch Level, perform the following steps:
1 Turn the transceiver power OFF.
2 Rotate the Channel selector to select the "S" position.
3 Press and hold the Side key while turning the transceiver
power ON.
4 Continue to hold the Side key until a beep sounds.
• The LED indicator alternates between red and green.
5 Release the Side key.
6 Rotate the Channel selector clockwise to increase the
Squelch level and counterclockwise to decrease the Squelch
level.
• The Squelch level can be adjusted from levels 1 to 9. The
higher the level, the stronger the signals must be to receive.
• An error will occur when selecting the "10" ~ "S" positions.
7 Press and hold the Side key for 2 seconds to save the
setting.
• A beep will sound.
8 Turn the transceiver power OFF and then ON again to
activate the new settings.
ORIENTATION
Speaker
VOICE OPERATED TRANSMISSION (VOX)
VOX operation allows you to transmit hands-free. This feature
can be activated or deactivated by your dealer.
To activate VOX and set the VOX Gain level, perform the
following steps:
1 Connect the headset to the transceiver .
Battery Pack
• The VOX function does not activate when a headset is not
connected to the accessory terminal of the transceiver.
2 Rotate the Channel selector to select any position other
than "S".
3 With the transceiver power OFF, press and hold the Side
key while turning the transceiver power ON.
Microphone
4 Continue to hold the Side key until a beep sounds.
• The LED indicator alternates between red and green.
5 Release the Side key.
6 Rotate the Channel selector clockwise to increase the VOX
gain level and counterclockwise to decrease the VOX gain
level.
• The VOX Gain can be adjusted from levels 1 to 10 and OFF
(select the "11" ~ "S" position).
• While speaking into the transceiver, the LED will light
orange when you reach a VOX gain level that recognizes
your voice.
7 Press and hold the Side key for 2 seconds to save the
setting.
• A beep will sound.
8 Turn the transceiver power OFF and then ON again to
activate VOX.
Note: If a headset is connected to the transceiver while the VOX
function is switched ON and the VOX Gain level is configured to a
higher, more sensitive level, louder received signals may cause the
transceiver to start transmission.
BACKGROUND OPERATIONS
TIME-OUT TIMER (TOT)
The Time-out Timer prevents callers from using a channel for an
extended duration. If you continuously transmit for the duration
programmed by your dealer (default is 1 minute), transmission
will stop and an alert tone will sound. To stop the tone, release
the PTT switch.
BATTERY SAVER
When activated by your dealer, the Battery Saver function
decreases the amount of power used after no signal is present
and no operations are being performed for 5 seconds. When a
signal is received or an operation is performed, Battery Saver
turns off.
Note: While the Battery Saver is operating, the LED may flash
green when receiving a QT/DQT signal which does not match the
QT/DQT tone/code set up in your transceiver.
LOW BATTERY WARNING
While operating the transceiver, the Low Battery Warning
sounds an alert tone every 30 seconds and the LED indicator
blinks red when the battery needs recharged or replaced.
BUSY CHANNEL LOCKOUT (BCL)
BASIC OPERATIONS
When activated, BCL prevents you from interfering on a channel
that is already in use. Pressing the PTT switch will cause
an alert tone to sound and the transceiver will not transmit.
Release the PTT switch to stop the tone.
Note: Ask your dealer for an explanation on how BCL functions
when using QT or DQT signaling.
QT/ DQT SIGNALING
QT/ DQT is used to segregate talk groups, so users only hear
calls from their own group.
Meaning
