Summary of Contents for Cool lights CL-MF0070

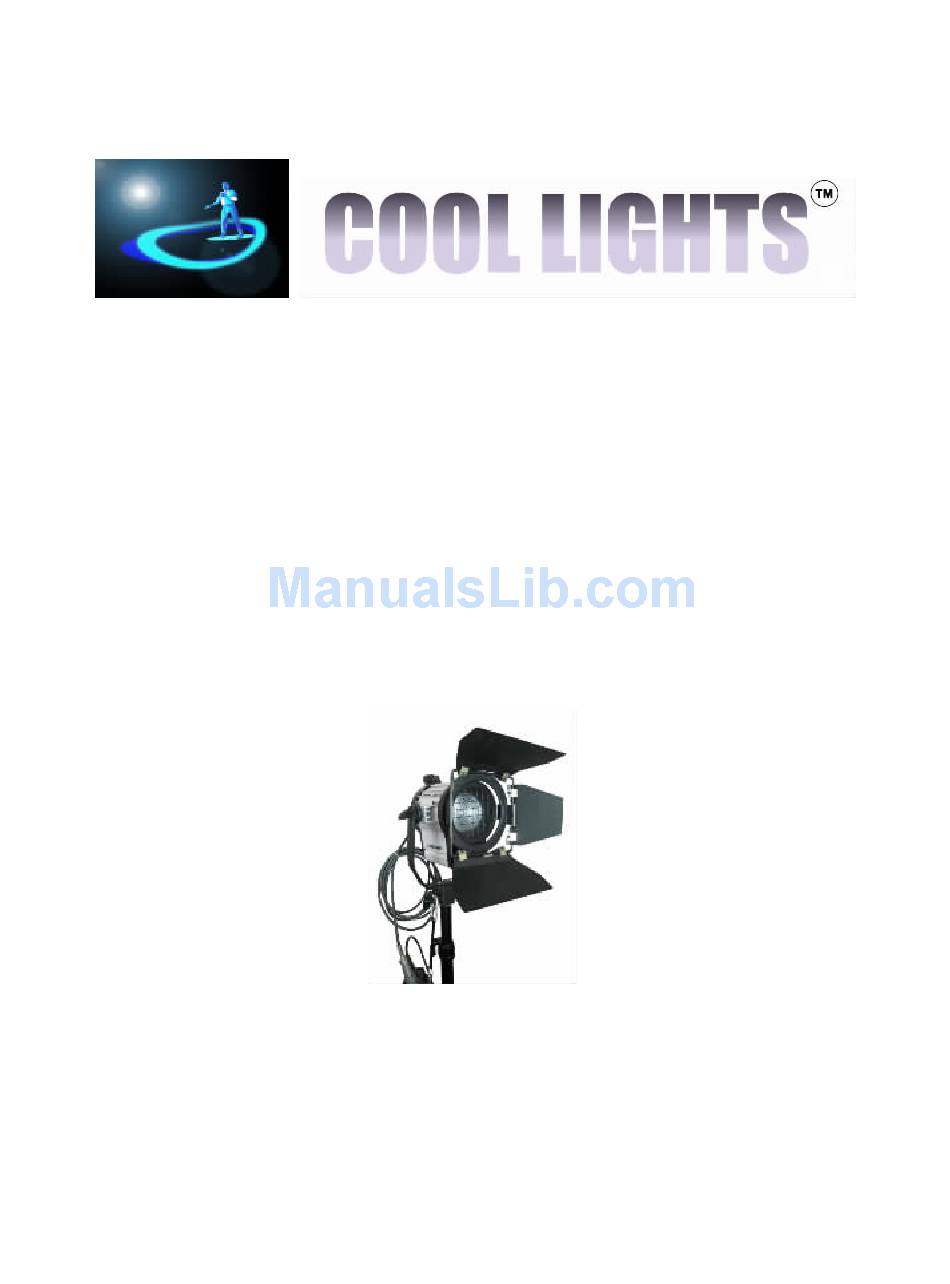

- Page 1 CL-MF0070 70w CDM (Ceramic Discharge Metalhalide) Fresnel Operations Manual Cool Lights USA www.CoolLights.biz Manual V1.0. Cool Lights CL-MF0070 is © Copyright 2009 CoolVideoLights.Com All Rights Reserved.
-
Page 2: Table Of Contents
Table of Contents INTRODUCTION .....................................3 ASSEMBLY PROCESS ................................... 3 ............................3 EMOVE THE FRESNEL FROM THE BOX ..............................4 NSERT THE BULB IN THE FRESNEL ...............................4 UT THE FRESNEL ON A STAND .................5 TTACH THE LAMP HEAD FRESNEL TO BALLAST CABLE TO THE BALLAST Mounting ballast on the light stand............................ -
Page 3: Introduction
You should have received the CL-MF0070 fresnel, a barndoor unit, mounting yoke with yoke to baby stand adapter, 10 ft. fresnel to ballast connection cable (permanently attached to fresnel on one... -
Page 4: I Nsert The Bulb In The Fresnel
Insert the bulb in the fresnel . In order to insert the CDM bulb into the fresnel, you must open the top lid to access the socket area inside. While the insertion of the bulb may be easy, it is not intuitive how to access the bulb compartment by opening the lid. -
Page 5: A Ttach The Lamp Head ( Fresnel ) To Ballast Cable To The Ballast
Warning. You should not over-tighten the thumbscrew either as it can be stripped and ruined with too much forcing. Just apply enough tightening pressure to get a good connection and not more. Attach the lamp head (fresnel) to ballast cable to the ballast . -
Page 6: Angle Adjustment Using The Yoke
(shown in figure 10) on the back of the fresnel simply move into the position desired and retighten the thumbscrew as shown in Figure 11. Barndoors . The CL-MF0070 CDM 70 fresnel includes as standard a barndoor unit which fits into the accessory holder on the front of the fresnel. -
Page 7: F Ixture Transport
locked in place with a safety lock on the top of the fresnel as pictured in Figure 12. In order to unlock this lock and remove the barndoors, simply pull up on the lock and swing it over to one side so it no longer attaches to the barndoor. -
Page 8: Operating Specifications And Parameters
Optimal Temperature Range: 60ºF to 125ºF (15ºC to 51ºC) Conclusion This completes setup and testing of the Cool Lights CL-MF0070 CDM 70 Fresnel Spotlight. With proper care, you should get many years of service out of its sturdy aluminum construction, high quality sockets and reflectors and superior universal voltage input ballasts.
