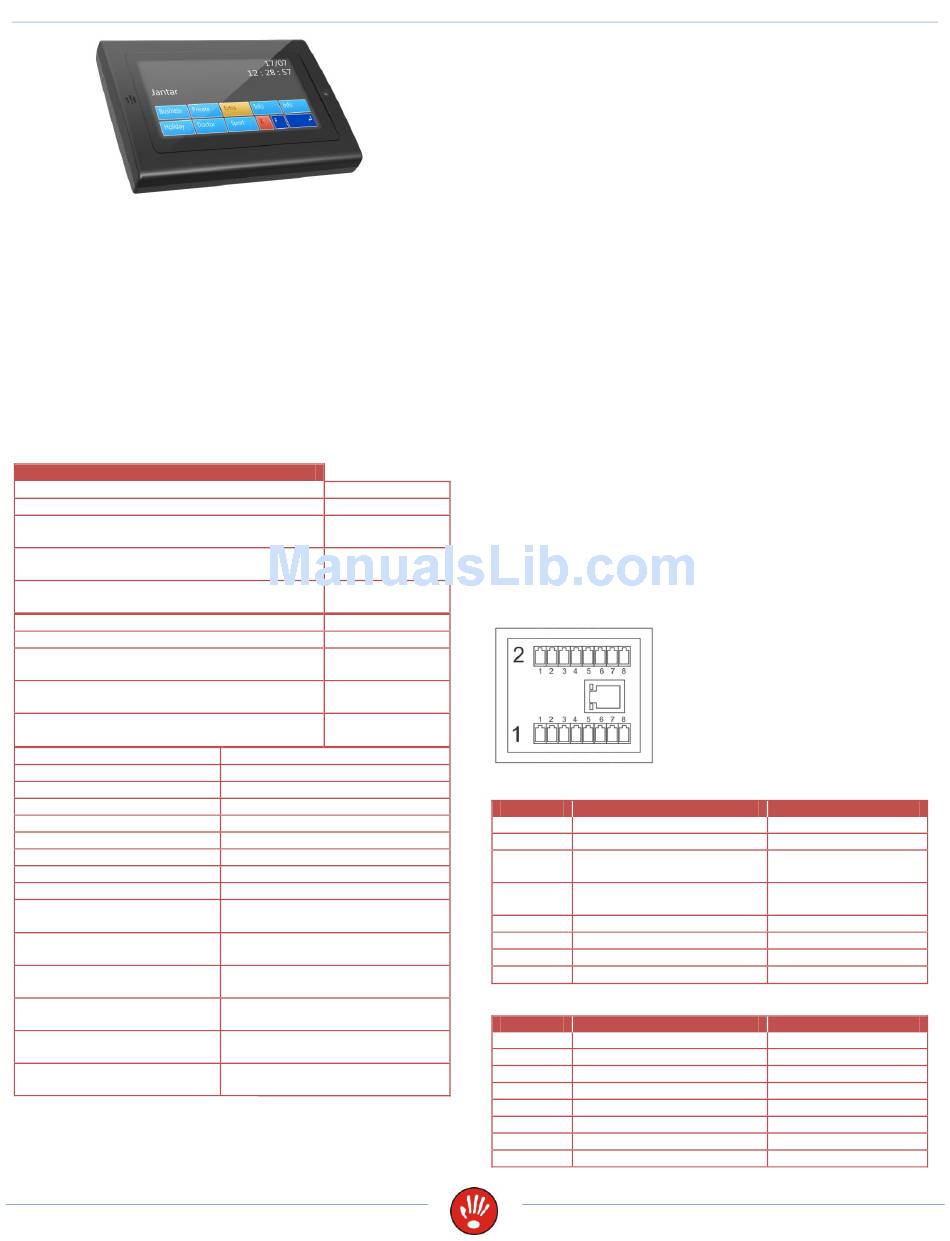

REGIS T-X-B – ACCESS or TIME AND
ATTENDANCE CONTROLLER
The Regis is a controller with built-in proximity card reader and 7"
LCD capacitive touch screen display. It is designed for residential
and business buildings, offices, shops, etc. The controller can have
125kHz or 13.56MHz reading frequency.
The entire set-up procedure is carried out with the software. The
controller allows access for up to 30000 users and saves 100000
events. If you bought the controller in time and attendance kit,
then inputs and outputs cannot be controlled.
It can also be used as a Wiegand 26-bit reader, if needed.
The SDK is also available for this controller. If a user or software
producer wants to develop its own application, please contact us.
TECHNICAL DATA
REGIS T-X-B
REGIS T-1-B reading frequency
REGIS T-1-B reading distance
REGIS T-1-B current consumption in
standby mode
REGIS T-1-B reading field in vertical
position
REGIS T-1-B reading field in horizontal
position
REGIS T-3-B reading frequency
REGIS T-3-B reading distance
REGIS T-3-B current consumption in
standby mode
REGIS T-3-B reading field in vertical
position
REGIS T-3-B reading field in horizontal
position
Dimensions (mm)
Protection
Operating voltage
Operating temperature
Connector
Display
Tamper
Display resolution
Humidity
Memory
Inputs
Outputs
Clock
Communication
Keypad
*if Regis T is in Spider mode, the same data applies
Black line
REGIS T-X-B – Access or time and attendance controller
125kHz
Up to 15cm
300mA
Bottom side of
the controller
Right side of the
controller
13.56MHz
Up to 7cm
330mA
Bottom side of
the controller
Right side of the
controller
210x150x35 (WxHxD)
IP21
From 9V to 14V DC
From -20°C to 60°C
2x 8pin, 1x ethernet
TFT - capacitive touch
Accelerometer
1024 x 600
10-80%, non condensing
30000 cards or codes
100000 events
Door status
Push button
Transistor output for el. strike
0.5A
Real time clock, battery backup
(max. ten hours)
RS485
Ethernet
Configurable buttons
Selectable colors
Power supply
The controller need's external power supply to operate. The Spider
W40 power supply is sufficient to power two controllers and two
12V electric strikes or two 12V magnetic locks (0.5A). If you will
use it as a standalone controller and low consumption electric
strike (0.25A) you can use power supply Spider W5.
Voltage drops and cable signal interferences
When you connect the controller, use cable with a diameter of at
2
least 0.22mm
. If the cable length exceeds 25m, use one twisted
pair of UTP cables for the positive (+) pole and one for the
negative (-) pole. The cable length between power supply and the
controller should not exceed 50m.
Take into consideration that a 0.22mm
approximately 9 ohm per 100m. The power supply at the end of
cable should be a minimum of 9V. If you are using el. strike, it is
highly recommended that the voltage drop is calculated. At greater
distances, a thicker cable of 0.5mm
wherever possible.
If the load is, for example, 0.5A (with el. strike) then, on the
2
0.22mm
cable voltage drop will be 4.5V at 100m. For the device
with 60mA consumption, the voltage drop is 0.5V.
Reading distance depends on where the controller is installed. The
presence of metal or interferences can significantly reduce the
reading distance. DO NOT install the controller directly on metal
surfaces and/or cover it with a metal cover.
It is not recommended to install controllers closer than 30cm
from each other in any direction. Otherwise, it may result in
inaccurate readings or, indeed, in the controller not reading at
all.
For the Regis T-3-B to comply with EMC directives (CE), you
have to put ferrite core on the cable as close to the
controller as possible, making two turns!
CONNECTOR DESCRIPTION
Connectors are marked on the housing
with 1 in 2. First contact on both
connectors starts on the marked side (1
and 2)
CONNECTOR 1 – connection of power supply, el. strike...
Contact
Description
1
9-14V DC
2
GND
3
El. strike output
4
Alarm output
5
Door status switch input
6
Push button input
7
CA
8
CB
CONNECTOR 2 – connection of external reader
Contact
Description
1
9-14V DC
2
GND
3
Data 0
4
Data 1
5
Buzzer output
6
LED output
7
XA – for protocol reader
8
XB – for protocol reader
2
cable has a resistance of
2
or more should be used
Specification
Power supply
Ground
Max. 0,5A
Active = GND
Max. 0,5A
Active = GND
Active = GND
Active = GND
RS485 A line
RS485 B line
Specification
Power supply
Ground
Wiegand protocol
Wiegand protocol
Active = GND
Active = GND
RS485 XA line
RS485 XB line
10/2016
