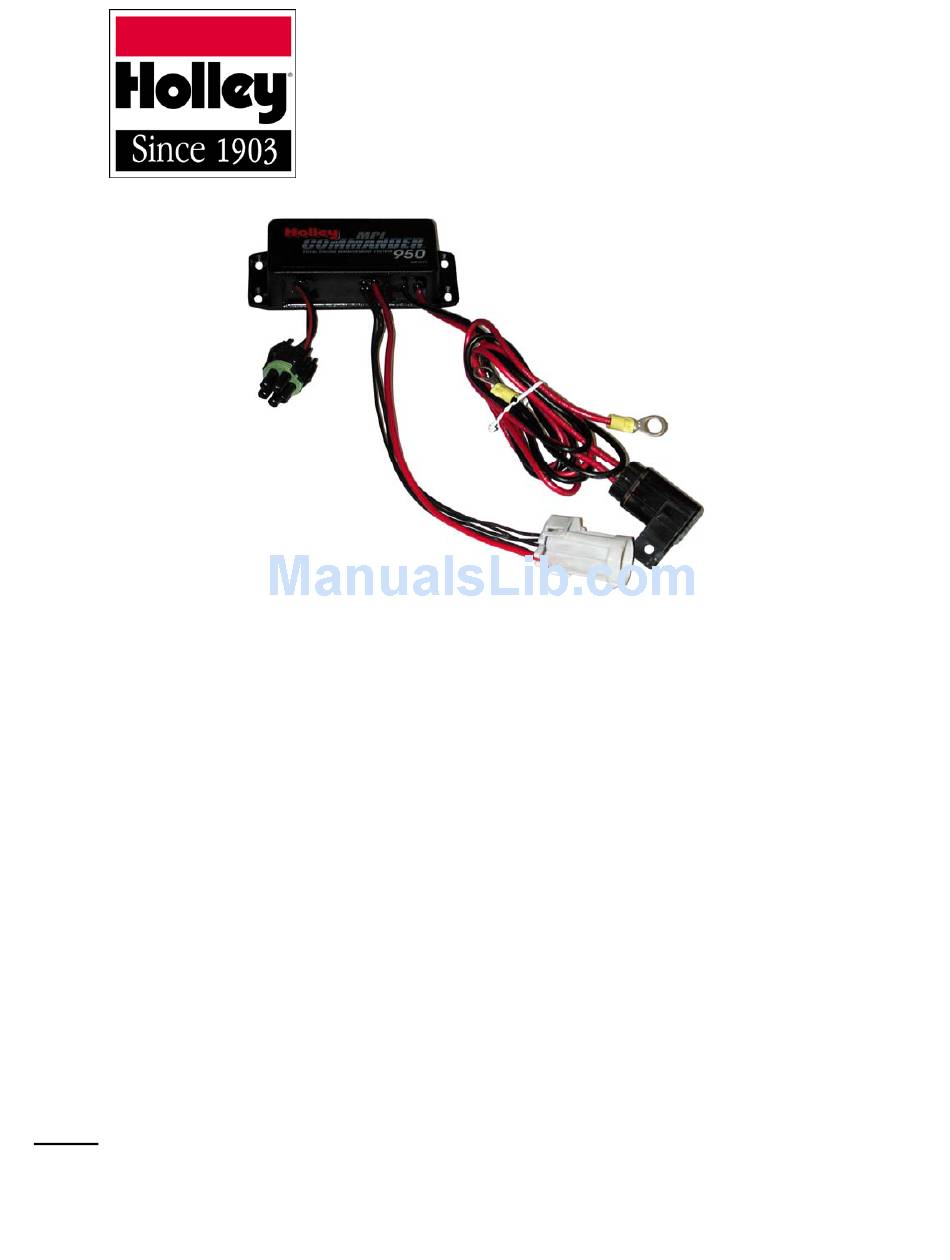

Auxiliary injector driver module

Advertisement

Quick Links

One or more of the following items may be required to complete the installation of this kit.
Parts:
Twin TBI Adapter Harness PN 534-196 (Required if using (2) 4 bbl TBI throttle bodies)
Appropriate Terminal Ends
Fasteners to Mount Box
Tools:
Screwdriver
Drill and Bits
Wire Cutters
Wire Strippers/Crimpers
NOTE:
These instructions must be read and fully understood before beginning
installation. If this manual is not fully understood, installation should not be
attempted.
Installation Instructions &
Troubleshooting Manual
P/N 199R10387
Commander 950
Auxiliary Injector
Driver Module
P/N 534-195

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 534-195 and is the answer not in the manual?

Questions and answers

Summary of Contents for Holley 534-195

  • Page 1 Commander 950 Auxiliary Injector Driver Module P/N 534-195 Installation Instructions & Troubleshooting Manual P/N 199R10387 One or more of the following items may be required to complete the installation of this kit. Parts: Twin TBI Adapter Harness PN 534-196 (Required if using (2) 4 bbl TBI throttle bodies)
  • Page 2 TABLE OF CONTENTS: TABLE OF CONTENTS: ..............................2 INTRODUCTION: .................................3 Warnings, Notes, & Notices:............................3 OVERVIEW: .................................3 What this kit is designed for:............................3 AUXILIARY INJECTOR DRIVER MODULE INSTALLATION: ...................3 Module Installation:..............................3 Dual Throttle Body Installation:..........................4 Top-Fed Port Injectors:..............................4 BATTERY CONNECTIONS: ............................4 SPECIFICATIONS:...............................4...
  • Page 3 Commander 950 ECU or vehicle may result. WARNING! Do not use any non-Holley devices that alter the pickup signal to the Commander 950 Fuel Injection ECU, (i.e. timing retard modules, external over-rev modules, etc.). Use of any non-Holley device with the Commander 950 system may result in damage to the system.
  • Page 4 Throttle Position Sensor, Manifold Air Temp, Engine Coolant Temp, oxygen sensor, ignition, injectors, and switched power. You are now ready to start the mapping process. Refer to the Commander 950 manuals for more information. SPECIFICATIONS: Input Voltage: 10 - 16 volts DC (negative chassis) Holley Performance Products Inc. 199R10387 Date: 12-5-05...
