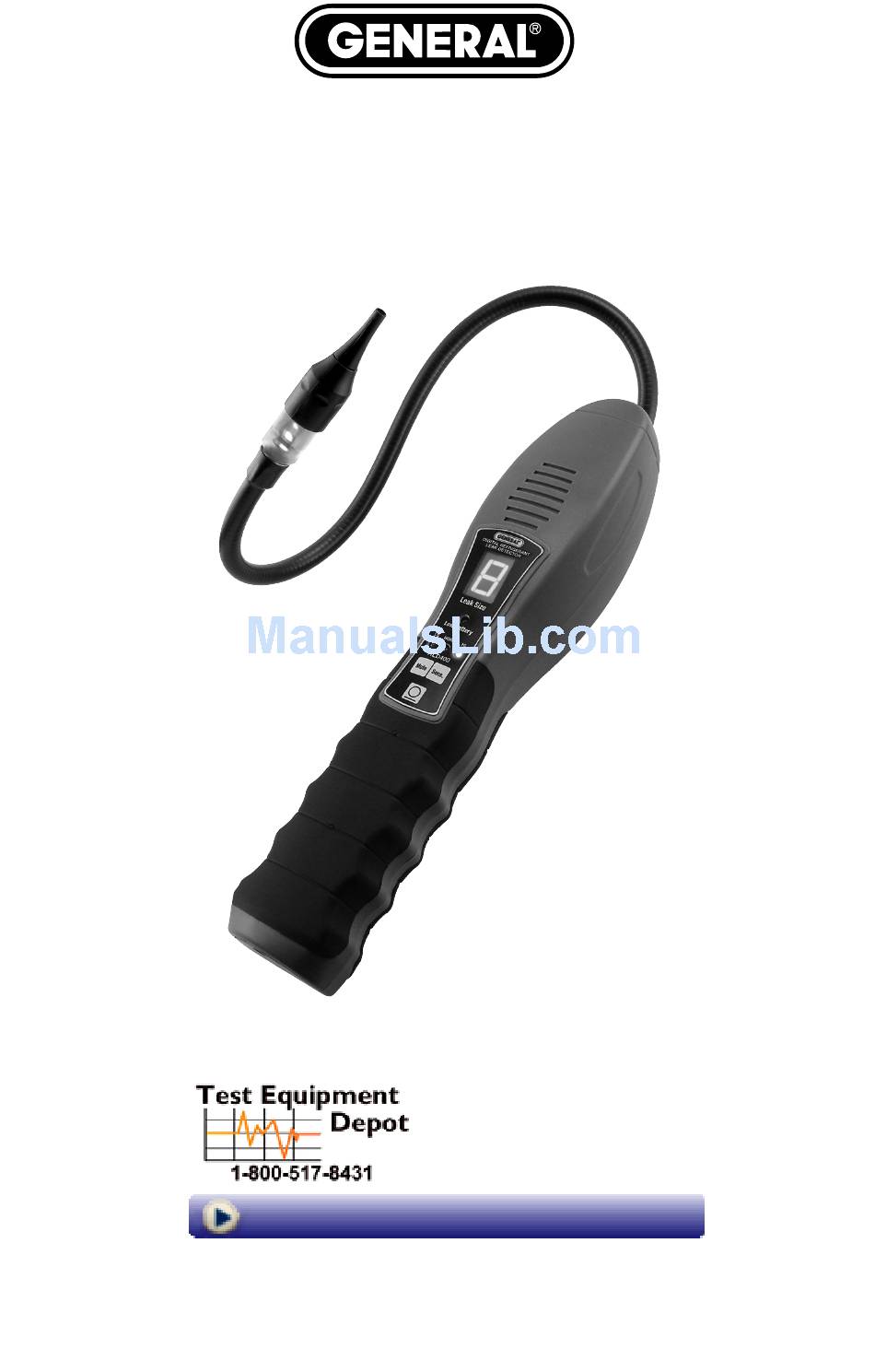

REFRIGERANT LEAK DETECTOR
Please read this manual carefully and thoroughly before using this product.
DIGITAL
WITH PUMP
USER'S MANUAL
RLD400
Visit us at www.TestEquipmentDepot.com
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLD400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for General RLD400

Summary of Contents for General RLD400

  • Page 1 DIGITAL REFRIGERANT LEAK DETECTOR WITH PUMP USER’S MANUAL RLD400 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Please read this manual carefully and thoroughly before using this product.

  • Page 2: Table Of Contents

    Refrigerant Leak Detector with Pump. Please read this user’s manual carefully and thoroughly before using the product. The RLD400’s long-lasting solid electrolyte semiconductor sensor can detect leaks of all halogenated (chlorine or fluorine-based) refrigerant gases currently in common use. They include HFCs (hydrofluorocarbons), CFCs (chlorofluorocarbons) and HCFCs (hydrochlorofluorocarbons).

  • Page 3: How It Works

    4 ft. onto concrete. HOW IT WORKS A small mechanical pump inside the RLD400 draws a sample of air through the tip of the instrument’s 17-in. long probe into a proprietary sensor 1-1/2 inches downstream. A proportional halogen detector in the sensor determines whether any refrigerant gas is in the sample.

  • Page 4: Key Features

    A third feature of the RLD400 that helps locate leaks is a red LED adjacent to the sensor at the end of the probe. This light flashes in sync with the beep. In other words, it flashes three times every two seconds whenever the unit is on, and much faster whenever the unit detects refrigerant.

  • Page 5: What's In The Case

    Mute button. The warmup cycle normally takes 17–20 seconds. 3) READY. The RLD400 is ready to search for leaks when: 1) the display stops flashing “0” and goes dark; 2) the green LED indicating NORM sensitivity (the default level)

  • Page 6: Checking For Leaks

    LED CHECKING FOR LEAKS Position the end of the RLD400’s flexible-obedient probe—which retains its configured shape—close to any suspected source of leaking refrigerant gas. In a vehicle, wet oily areas around hose connections and fittings, and greasy streaks radiating outward around the compressor clutch or on the underside of the hood just above the compressor are telltale signs of a leak.
  • Page 7 The reading reflects the concentration of refrigerant gas sensed. The maximum value will be displayed when the tip of the probe is at the source of the leak. Try switching between different sensitivity levels while moving the probe until the highest number appears.

  • Page 8: Using The Leak Test Vial

    NOTE: If the above check does not produce a non-zero reading, either your leak test vial is empty or your RLD400 is defective. If the bottom of your leak test vial does not appear green, replace the vial. To locate a replacement, search the Internet for “Refrigerant leak detector reference”.

  • Page 9: Specifications

    “AA” batteries. To do so, follow the procedure in the Setup Instructions section of this manual. CHANGING THE FILTER The RLD400 ships with a pack of five small disc filters that install upstream of the sensor. Replace the filter whenever it becomes visibly dirty, or every few months, depending on use.

  • Page 10: Warranty Information

    Acceptance of the exclusive repair and replacement remedies described herein is a condition of the contract for purchase of this product. In no event shall General be liable for any incidental, special, consequential or punitive damages, or for any cost, attorneys’...
  • Page 11 NOTES ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________ ________________________________________________________________...
  • Page 12 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com Specifications subject to change without notice ©2012 GENERAL TOOLS & INSTRUMENTS NOTICE - WE ARE NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. MAN#RLD400 07/19/12...
