PowerItUp PBC-3012 User Manual

2-in-one car charger power bank

Hide thumbs

2-in-one Car Charger

Power Bank

User Manual

Model: PBC-3012

Table of Contents

Need help?

Do you have a question about the PBC-3012 and is the answer not in the manual?

Questions and answers

Summary of Contents for PowerItUp PBC-3012

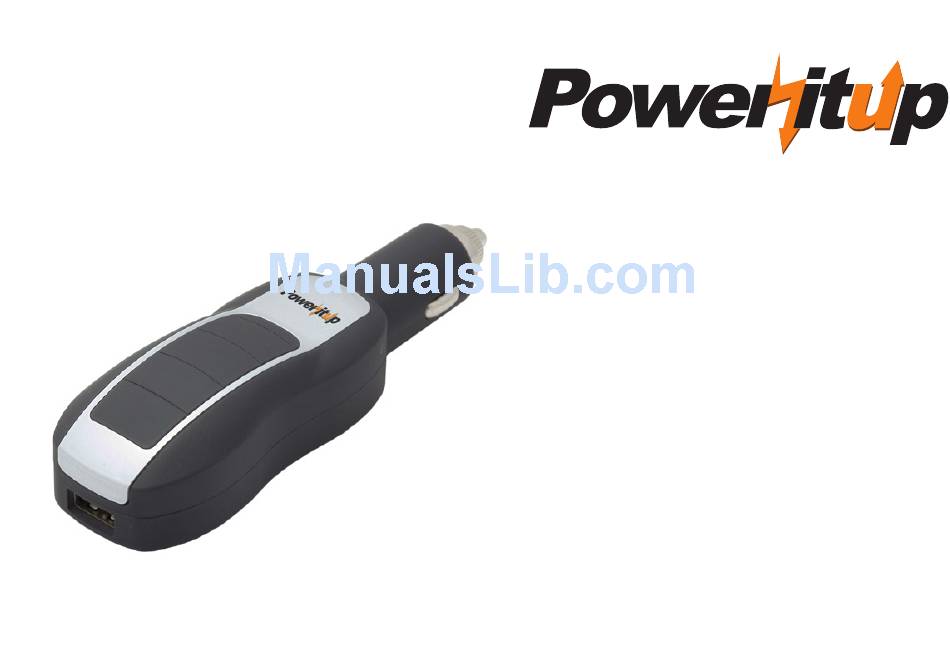

Page 1 2-in-one Car Charger Power Bank User Manual Model: PBC-3012...
Page 2 IN THE BOX 2-in-one Car Charger Power Bank User’s manual DESCRIPTION 1. Cigarette lighter connector 2. Power Capacity Indicator (25%, 50%, 75%, 100%) 3. USB-A Connector (to charge your other devices) 4. Power switch INTRODUCTION: Your Car Charger Power Bank is a unique product designed to perform two functions in one.
Page 3 In the car: • Plug the Car Charger Power Bank into your car’s power (cigarette lighter) socket. • The PCB-3012 will charge itself automat- ically. You should see blue blinking lights as long as it has not obtained a full charge. (Steady lights show that it has reached at least that level of charge and the next light will be blinking to show that it’s between...
Page 4 3000 mAh battery. I tried to charge my phone from a dead state and only got to 70% before the PBC-3012 ran out of power. What’s going on? A: All portable power banks have some level of efficiency that’s lost during the...
Page 5 Q: How come my Car Charger Power Bank isn’t showing any indication of life, even though I pressed the power button? A: There are a few possible causes: • The PBC-3012 has run out of power; • There is something wrong with the USB cord connecting the two de- vices;...
Page 6 SPECIFICATIONS 3000mAh Lithium ion Battery USB Output-5V/2.1A Charge via car 12v-24VDC/500mA 4 level LED Battery indicator Comfortable ergonomic design with rubberized finish Overcharge & Overcurrent protection, w/replaceable fuse Extended standby time – up to 24 months Life cycle – 1000+ times Working temperature -4°F –...
Page 7 WARNINGS • Do not puncture, throw, drop bend or modify. • Do not throw into a fire or expose to excessive heat or flame. • Do not disassemble the battery pack. • Stop using if unit generates strange smell or gets very hot. •...
