- Page 1 Part Number: D3570A 10/24/2001...
-
Page 2: Table Of Contents
Digi-Star EZ3200/EZ3200V/EZ3200V RC Table of contents Table of contents 1. About the product..........................1 FEATURES OF MODELS EZ3200, EZ3200V AND EZ3200V RC ..........1 OPERATING SPECIFICATIONS....................1 HOUSING............................1 2. Mounting and connection ......................... 2 INDICATOR MOUNTING ....................... 2 POWER CONNECTION........................2 POWER CABLE CONNECTIONS .................... - Page 3 Always keep this manual by your scale indicator All rights reserved. Reproduction of any part of this manual in any form whatsoever without Digi-Star’s express written permission is forbidden. The contents of this manual are subject to change without notice. All efforts have been made to assure the accuracy of the contents of this manual.
-
Page 4: About The Product

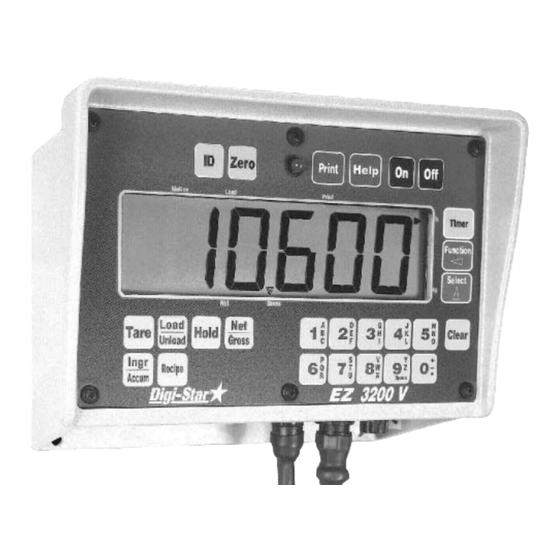

Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 1. About the product 1. About the product FEATURES OF MODELS EZ3200, EZ3200V AND EZ3200V RC Three recipe programming modes " - Ingredient percentage of total - Amount per animal - Amount per ingredient Accumulation for tracking ingredient usage "... -
Page 5: Mounting And Connection
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 2. Mounting and connection 2. Mounting and connection INDICATOR MOUNTING The indicator is easily attached to the Indicator Mounting Bracket by hooking the top over the plate and securing the bottom with two screws and nuts (size# 10 - 24 × 5/8" or M5 × 16mm). -
Page 6: Load Cell Connection
Additional protection can be achieved with the proper installation of grounding rods. Please call (920) 563-1400 to request Digi-Star Form F3050. TECHNICAL MANUAL Technical Manual available upon request. Please call (920) 563-1400 to request Digi-Star Manual for New EZ3200. ! copyright - 10/24/2001... -
Page 7: Setup And Calibration Requirements
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 3. Setup and Calibration Requirements 3. Setup and Calibration Requirements Warning! This indicator was calibrated at the factory to weigh accurately with your system. Additional calibration is not necessary under normal conditions. The Short Form Setup & Calibration procedure allows you to change the SETUP and CAL numbers of the indicator. -
Page 8: Matching Ez Scale To Another Scale
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 4. Matching EZ scale to another scale 4. Matching EZ scale to another scale Sometimes two different scales are used to weigh the same load. When this is done, the weight measured by each scale may not be the same. This can be caused by one or both of the two scales being slightly out of calibration. -
Page 9: Connecting Ez Indicator To Other Load Cells
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 4. Matching EZ scale to another scale CONNECTING EZ INDICATOR TO You will need the number and type of load cells OTHER LOAD CELLS used in the new scale system. You will also need the current "SETUP" and "CAL" as described above. -
Page 10: To Return To Weigh Mode
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 4. Matching EZ scale to another scale TO RETURN TO WEIGH MODE To exit setup without changing any values, press and hold the key, then press the key. ! copyright - 10/24/2001... -
Page 11: Getting Started
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 5. Getting started 5. Getting started To operate the scale, first attach the scale's power cord to connector J901 and the loadcell cable to connector J902 on the bottom panel of the scale. HELLO Press the key. -
Page 12: System Operation
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation 6. System operation EZ3200 V shown - EZ3200 and ES3200V RC operations are the same. LB and KG annunciators are located along right hand edge of the 3200V display. TURNING ON THE SCALE Press A brief message will be displayed (such as HELLO ). -
Page 13: Using The Help Key
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation USING THE HELP KEY provides additional information about the weighing modes, setup/calibration, and recipe programming. Pressing while displaying weight will display information about the last key pressed. TO SELECT GROSS MODE Gross Mode displays the weight change since the unit was last Zero/Balanced. -
Page 14: To Select Hold Mode
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO SELECT HOLD MODE Hold Mode prevents the displayed weight from changing due to “zero shift” while moving the scale. hold Press to "hold" the displayed weight and enter the Hold Mode. The scale is in Hold Mode if the word HOLD is flashing on the display and the flashing hold weight is only displayed for a brief time. -
Page 15: To Enter A Preset
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO ENTER A PRESET A Preset is a weight amount that can be set in the scale. 1. Use the numeric keypad to enter the desired preset preset weight value. 2. Press . The indicator will round the preset amount to the nearest display count size. -
Page 16: To Clear The Preset Alarm
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO CLEAR THE PRESET ALARM 1. Press once to clear the preset alarm and re-enter a new preset weight using the numeric keypad. 2. Press once to print the weight and clear the preset. -
Page 17: To Preload A Tare Value
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation The Preload Tare Feature (PRETAR) is useful for TO PRELOAD A TARE VALUE weighing containers after they have already been loaded. If the weight of the container is known, a Tare Weight is preloaded in the scale and only the Net Weight is displayed. -
Page 18: To Use The Pre-Alarm
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO USE THE PRE-ALARM The Pre-Alarm feature is an "early warning" for the preset. For example, if the Pre-Alarm is set for Weight with a value of 100 and the preset is 1000, the preset alarm will flash during the last 100 lbs/kgs of the preset. -
Page 19: To Start The Mix Timer
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO START THE MIX TIMER There are two ways to start the Mix Timer. Method 1 1. Press to see the time currently set. 00:01:44 2. Press the keys to change the displayed value. The [Select] key increments the "flashing"... -
Page 20: To Start The Rotation Counter
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO START THE ROTATION COUNTER There are two ways to start the Rotation Counter. Method 1 1. Press to see the rotation count currently set. 2. Press the keys to change the displayed value. The [Select] key increments the "flashing"... -
Page 21: Programming Recipes
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation PROGRAMMING RECIPES There are three different methods for programming recipes: 1 - Amount per Animal 2 - Percent (%) per Load 3 - Amount per Load Recipes programmed in one method will not be converted when a new entry method is selected. -
Page 22: To Program A New Recipe
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO PROGRAM A NEW RECIPE Before programming a new recipe: Set the desired entry method (see page 20: " change the entry method). Rename ingredients as needed (see page 29: " progrm To rename ingredients). -
Page 23: To Change The Entry Method
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation 7. Use the numeric keypad to select the four digit ingredient value. stored 8. Press to enter the value. STORED scale will display message indicating that the ingredient has been saved into non-volatile memory. -
Page 24: System Operation (Continued)
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO EDIT A RECIPE Press and hold and then press Continue holding both keys until the indicator beeps and the scale displays the message PROGRM . rec- _ _ The scale then displays the first recipe number programmed REC-XX . -
Page 25: To Erase A Recipe
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation 9. The scale will display the message stored indicating that the ingredient has been saved into non-volatile memory. Non volatile memory stored is a special type of memory that allows the power to be removed from the scale without losing any of the recipes. -
Page 26: To Print A Single Recipe
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO PRINT A SINGLE RECIPE 1. Press . The scale will display the first recipe in memory. 2. Press REC-01 This prints the ingredients of this recipe. 3. Press to advance onto the next recipe. -
Page 27: Using The Auto Advance Feature
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation USING THE AUTO ADVANCE FEATURE The auto advance feature allows for hands free operation of programmed recipes. When the auto advance feature is activated, the indicator automatically prints and advances to the next ingredient once the Motion, Tolerance, and Delay Time requirements have been met. -
Page 28: Using Delay Time
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation USING DELAY TIME The Delay Time Feature allows an operator to select the amount of time the scale should wait before automatically advancing to the next ingredient of the recipe. This helps insure accuracy for the ingredient amount. - Page 29 Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation Method 2 totamt 1. Press 2. Use the numeric keypad to select the recipe number. 3. Press 4. The scale displays the message LOADING RECIPE XX and TOTAMT . The message TOTAMT represents either the Total amount to be loaded or the Total amount of animals for that recipe.
-
Page 30: To Manually Advance To Next Ingredient
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO MANUALLY ADVANCE TO THE 1. If loading a batch using a recipe and the Delay NEXT INGREDIENT Timer is set to manual, you must press twice to advance to the next ingredient when loading a recipe. -
Page 31: To Review Ingredient Accumulation
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO REVIEW INGREDIENT Review ingredient accumulations (the total ACCUMULATION amount of each ingredient that has been loaded) by following these steps. 1. Press The scale displays the first corn-3 = ingredient used by the recipes and the total amount that has been loaded/unloaded. -
Page 32: To Print The Ingredient Table
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation TO PRINT THE INGREDIENT TABLE 1. Press review ingredient accumulations. 2. Press . This prints the total accumulation 01:0050 for this ingredient. 3. Press again. Accumulations for all ingredients currently used in all recipes will be printed. -
Page 33: To Erase Accumulation For One Ingredient
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation Method 2 1. Use numeric keypad enter corn-1 ingredient number. 2. Press . The ingredient name will be displayed: CORN-1 . 3. Press to backspace or press & hold the [Clear] key to delete the entire name. -
Page 34: To Erase Accumulation For All Ingredients
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 6. System operation Method 2 1. Use numeric keypad enter corn-1 ingredient number to be erased. 2. Press . The ingredient name will be displayed- CORN-1 . 3. Press 4. Press and hold , then press to erase the recipe. -
Page 35: Optional Features
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 7. Optional features 7. Optional features Optional features are installed in the indicator if the corresponding keys are on the front panel or if additional connectors are on the bottom panel. REMOTE DISPLAY A Remote Display is available for viewing weight data at convenient locations. The Remote Display includes a visual alarm light which can be used with the TR option listed below. -
Page 36: To Use Function & Select Keys
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 7. Optional features TO USE FUNCTION & SELECT KEYS The [Function] key provides additional features for operating the scale. The [Function] key is similar to the F1 key of a computer. It provides Help and additional functionality. The [Select] key is used to... -
Page 37: To Add Weight To Weigh Memory
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 7. Optional features TO ADD WEIGHT TO WEIGH 1. Press until M+ is displayed. This assigns MEMORY the Memory Plus (M+) operation to 2. Press to perform the Memory Plus (M+) option and this stores the new weight data in memory. -
Page 38: Weigh Averaging
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 7. Optional features WEIGH AVERAGING 1. Press to assign the RM operation to the [Function] key. 2. Press twice within three seconds to 1258 perform the weigh averaging operation. 2× The COUNT or number of weight values added to the weigh memory will be displayed first. -
Page 39: Pulsed Output
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC 7. Optional features PULSED OUTPUT The Clock Option is required as part of the Pulsed Output option. The Pulsed Output option provides one output line to indicate decreasing weight. Pulsed Output pulls the connected signal line to ground through a 330 Ohm resistor for 150 milli- seconds every time the scale decreases one display count. -
Page 40: Appendix 1: Ingredient Names
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC APPENDIX 1: Ingredient names APPENDIX 1: Ingredient names This list shows the number and name of the ingredients as shipped from Digi-Star. Each name can be changed. See the section To Rename Ingredients to change an ingredient name. -
Page 41: Appendix 2: Examples
Digi-Star Model EZ3200/EZ3200V/EZ3200V RC APPENDIX 2: Examples APPENDIX 2: Examples of programming recipes These examples are shown to illustrate the three different program entry methods available. Each method can be used to obtain the same results, the choice is yours. Note that Recipe #5 includes some of the same ingredients as Recipe #12, but are loaded in a different sequence to illustrate the flexibility of programming to match actual loading sequence. - Page 42 Digi-Star Model EZ3200/EZ3200V/EZ3200V RC APPENDIX 2: Examples to program recipe#5 program entry methods available (choose one) ingredient ingredient amt. per amount per % per load name number animal load (1) Corn Silage 15.0 37.50 1800 (2) Haylage 14.5 36.25 1740 (3) Soy Bean 5.75...
- Page 43 Digi-Star Model EZ3200/EZ3200V/EZ3200V RC APPENDIX 2: Examples 3: Amount per load - lb/kg Recipe programmed in total lbs/load Ingredient presets for 5200 lb load Haylage 1800 lbs Haylage 1800 lbs Corn Silage 1000 lbs Corn Silage 1000 lbs HM Shell Corn...
- Page 44 Digi-Star Model EZ3200/EZ3200V/EZ3200V RC INDEX Annunciator 9-12-15-20 Auto Advance 24-26 Black out Cable Connection Changing the Pre-alarm Changing the Recipe Entry Method Clearing the Mix Timer Clearing the Preset Alarm using TR option Clearing the Rotation Counter Clearing Weigh Averaging...
- Page 45 Digi-Star Model EZ3200/EZ3200V/EZ3200V RC INDEX Preset Preset Alarm - Clear using the TR option PRETAR Printing a Single Recipe Printing All Recipes Printing Ingredient table Printing Weigh Memory Programming a new recipe Programming Recipes Pulsed output Recalling Weigh Memory Recipe - Editing...
