TDAS WET
User's Manual
April 2012
Rev. 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TDAS WET and is the answer not in the manual?

Questions and answers

Summary of Contents for DTS TDAS WET

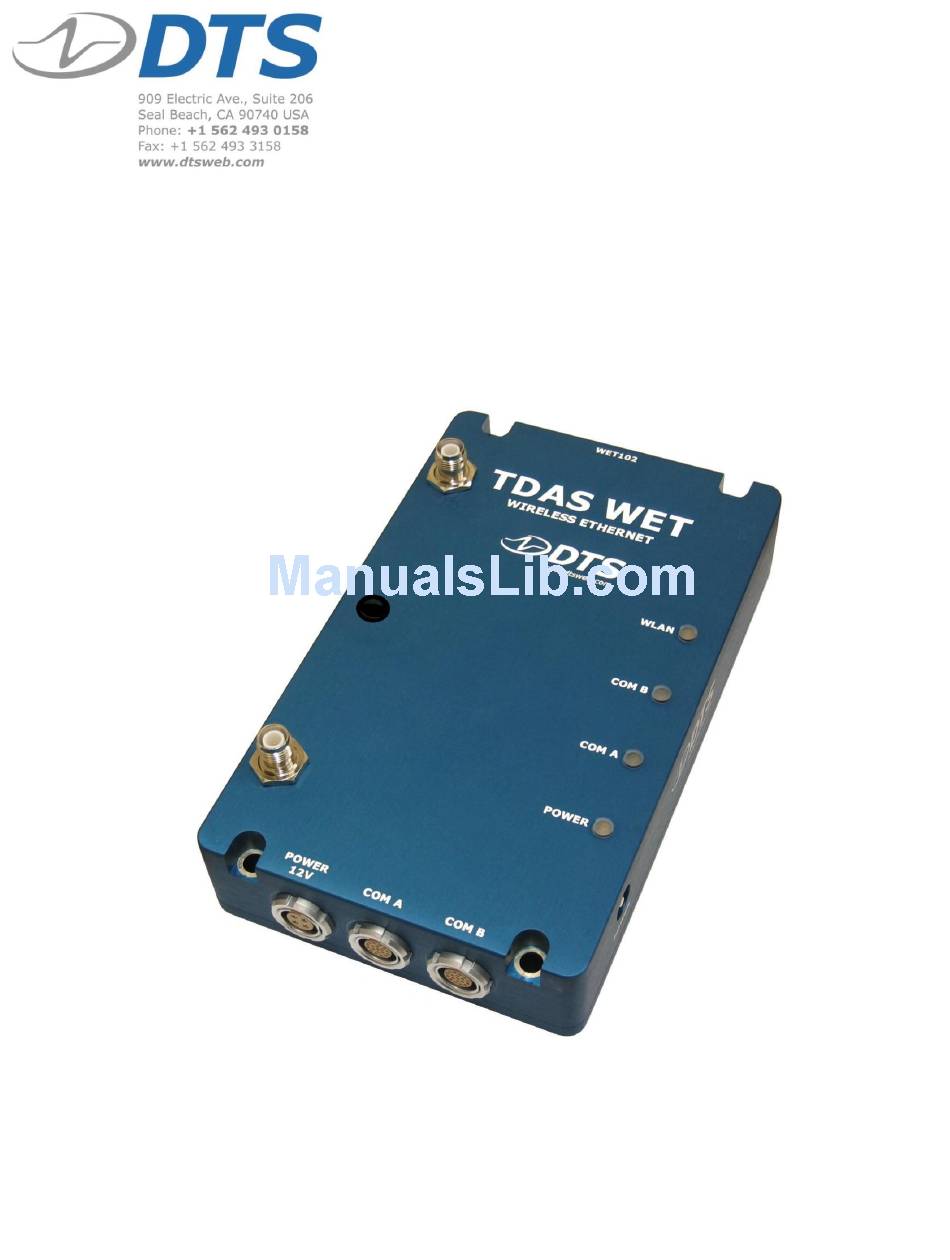

  • Page 1 TDAS WET User’s Manual April 2012 Rev. 4...

  • Page 2: Table Of Contents

    Shock Rating ....................6 Mounting Considerations ................7 Temperature Rating ..................7 Using Your TDAS WET with other TDAS Equipment ......... 7 TDAS PRO racks and TDAS G5 Vehicle Docking Stations ........7 TDAS PLUS Distributor ..................7 TDAS PLUS Mini Distributor ................8 TDAS PLUS Crashworthy Battery ...............

  • Page 3: Dts Support

    This manual supports the following product: 10300-01010: TDAS PLUS Wireless Ethernet (802.11b/g/n), with 2 antennas If your TDAS WET uses 3 antennas, please see the User’s Manual dated April 2008. support@dtsweb.com Rev. 4...

  • Page 4: Introducing The Tdas Wet

    TDAS WET Connector Panel 12V POWER Connector The unit has a dedicated connector for primary input power (12 V nominal at 1 A; 11- 15 V range). The TDAS WET does not contain a battery or back-up power source. support@dtsweb.com Rev. 4...

  • Page 5: Com A And Com B Connectors

    TDAS WET User’s Manual April 2012 A good power source is very important. The TDAS WET should be powered from a fully-charged 12 V battery or high-quality 12 V power source. When assessing power requirements, please consider any voltage drops that may occur due to cables, connectors, power converters, etc.

  • Page 6: Com A And Com B

    When not in use or if shipping is required, we suggest that you always place the unit in the padded carrying case originally provided with your system. The TDAS WET is not user-serviceable and should be returned to the factory for service or repair.

  • Page 7: Mounting Considerations

    COM port on the TDAS WET.  If the TDAS WET is in the middle of the chain, use a second RDC cable and connect the end marked “MASTER” to the open COM port on the TDAS WET. Connect the end marked “SLAVE” to either COM port on the third device in the chain.

  • Page 8: Tdas Plus Mini Distributor

    TDAS SYSTEM ports on TDAS PLUS Mini Distributor. Connect the 19-pin connector on the other end of the cable to either COM port on the TDAS WET; connect the 4-pin connector to the 12V POWER input on the TDAS WET.
  • Page 9 TDAS WET User’s Manual April 2012 When using a laptop, power save settings and authentication should be disabled. The general procedure is outlined below. support@dtsweb.com Rev. 4...

  • Page 10: Communication Methods

    30 m (90 ft).) To maximize range, follow these basic guidelines: 1. Keep the number of walls and ceilings between the TDAS WET and the other network devices to a minimum. Position the devices so that the number of walls or ceilings is minimized and that direct line-of-sight with the WAP is maintained whenever possible.
  • Page 11 They should not be changed without full knowledge of the impact on the communication environment. If you have any questions, please contact your network administrator for assistance. If your in-house network support person is not available, we encourage you to contact DTS. support@dtsweb.com Rev. 4...

  • Page 12: Appendix A: Connector Information

    TDAS WET User’s Manual April 2012 Appendix A: Connector Information 19-pin COM A and COM B connectors 4-pin 12V POWER connector (ECG.2B.319.CLL) (ECG.2B.304.CLL) 15 16 17 (panel view) (panel view) Suggested cable connector P/N: Suggested cable connector P/N: FGG.2B.319.CLAD72 FGG.2B.304.CLAD82...

  • Page 13: Suggested Connector Sources

    TDAS WET User’s Manual April 2012 Suggested Connector Sources DTS uses LEMO connectors on the TDAS WET. If you need to purchase connectors, we suggest first going to LEMO directly (www.lemo.com). Their web site and worldwide sales team are very helpful.

  • Page 14: Appendix B: Mechanical Specifications

    1.5 inches/ 1.1 inches/ 38.1 mm 27.94 mm Please contact DTS if you need to purchase additional TDAS WET accessories. 10300-01020: Antenna, magnetic; 5 dBi, RP-TNC plug, 6" high, 4 ft cable 10300-01030: Antenna extension cable; RP-TNC, M/F (3 m) support@dtsweb.com...

  • Page 15: Appendix C: Hardware Configuration Specifications

    TDAS WET User’s Manual April 2012 Appendix C: Hardware Configuration Specifications This is a custom page provided at time of shipment. If you need information on the specifics of your equipment, please e-mail your request to support@dtsweb.com with the serial number(s) of the equipment and parameters you are asking about.
