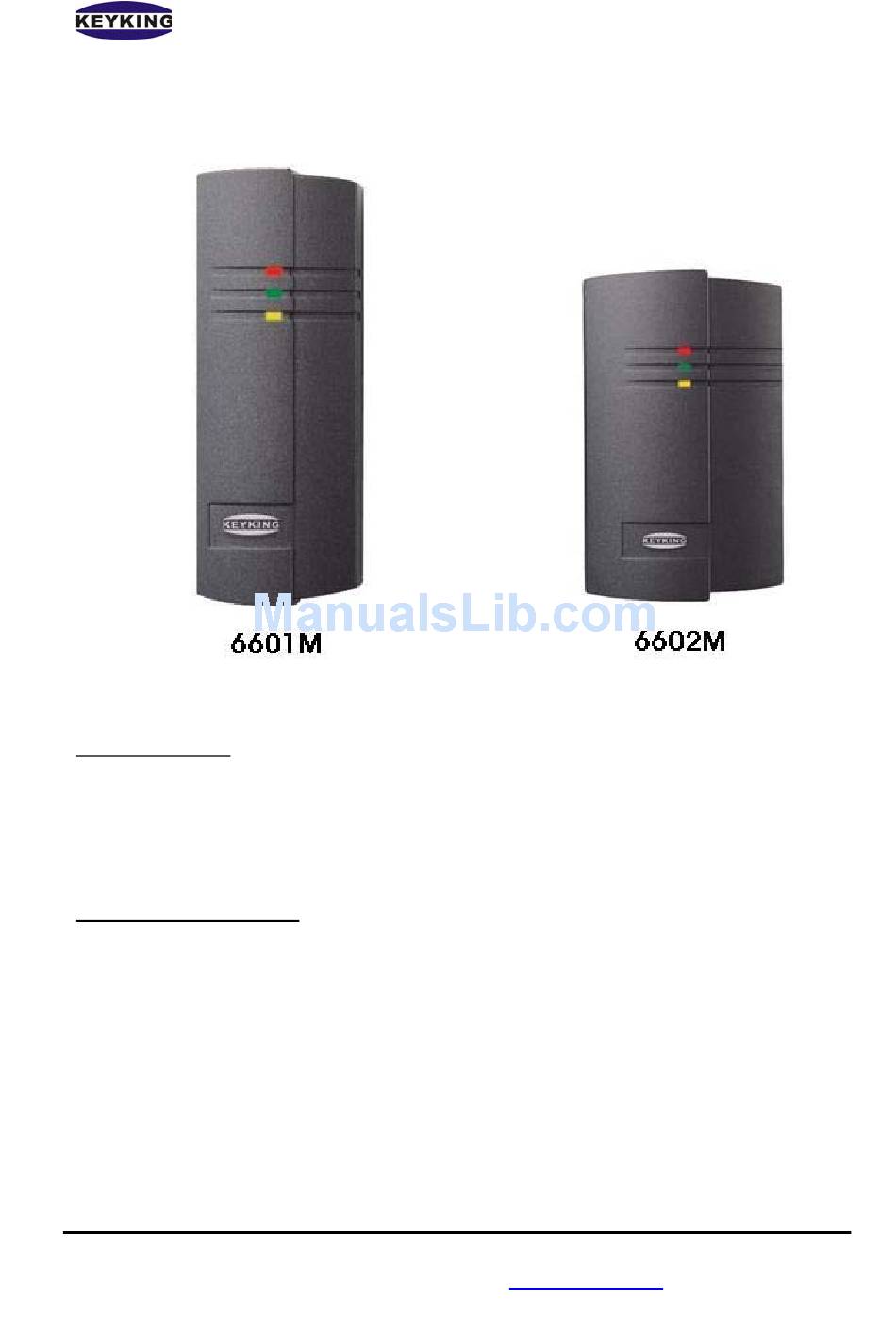

6601M /6602M Mifare Reader User Manual
System Features
1.
Read any Mifare card or ISO14443 Type A (serial number).
2.
Weigand 26 interface
3.
Water proof design
4.
6601M is for doorcase mounting and 6602M is for surface mounting
Technical Specifications
1. Card Format: Mifare1 S50 1KB or compatible
2. Output: Wiegand 26 bits
3. DC Power: 6 – 15VDC
4. Static Current: 50mA, Operating Current: 60mA.
5. Operating temperature: -14℃ ~ +70℃.
6. Hole diameter: 75mm
7. Humidity: 10%～90%
Keyking International Limited
Suite 3, 12/B Wissotzky St., Tel Aviv, 62338, Israel
Tel: (972)-3-5464256 Fax: (972)-3-5464259 Website:
6601M/6602M Mifare Reader User Manual
www.key-king.com
Page 1
Advertisement
Table of Contents
Related Manuals for KEYKING 6601M
Summary of Contents for KEYKING 6601M
- Page 1 Read any Mifare card or ISO14443 Type A (serial number). Weigand 26 interface Water proof design 6601M is for doorcase mounting and 6602M is for surface mounting Technical Specifications 1. Card Format: Mifare1 S50 1KB or compatible 2. Output: Wiegand 26 bits 3.
- Page 2 2. Drill the reader’s wire through the hole, and use screw (6*22mm) to peg the reader module. 3. Cover the reader module with reader case. When you hear “Ka”, it’s OK. Note: For 6601M, you may also inset it into the doorframe. Keyking International Limited Page 2 Suite 3, 12/B Wissotzky St., Tel Aviv, 62338, Israel...
