Summary of Contents for PICO USB TC-08

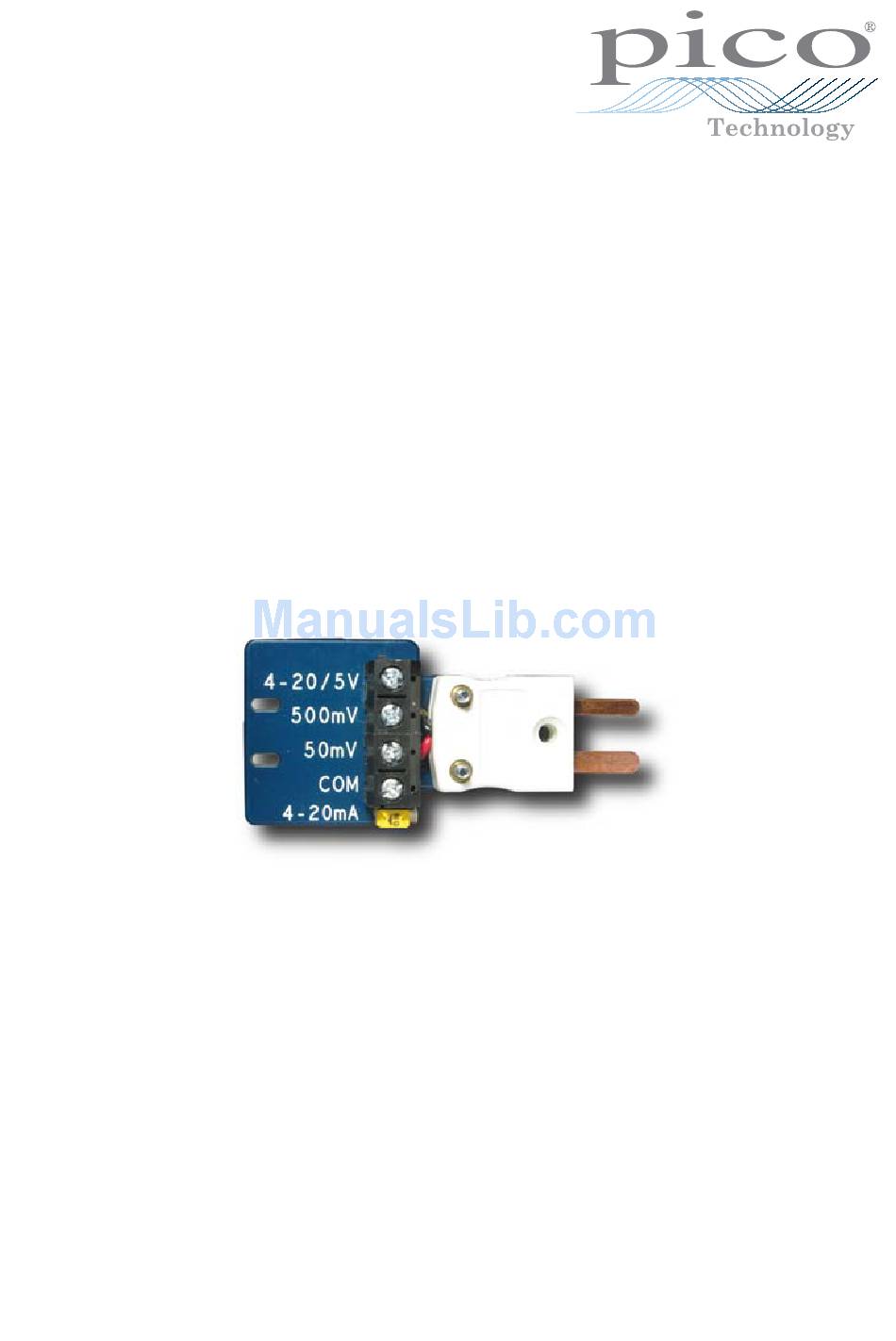

  • Page 1 USB TC-08 Single-Channel Terminal Board User’s Guide...

  • Page 2: Safety Notices

    USB TC-08 to measure voltages from 0 to + 5 V or 4-20 mA loop currents. The terminal board is designed for use with the USB TC-08 and is not guaranteed to work with other thermocouple data loggers.
  • Page 3 For a 4-20 mA loop signal, set the switch to “ON”. For a voltage signal, set the switch to “OFF”. Plug the terminal board into the USB TC-08. Connect the USB TC-08 to the computer using the USB cable supplied with the logger. Run PicoLog on the computer.
  • Page 4 USB TC-08 Single-Channel Terminal Board User’s Guide Pico Technology Issue history: 14.9.09. New. Pico Technology James House Colmworth Business Park ST. NEOTS Cambridgeshire PE19 8YP United Kingdom Tel: +44 1480 396395 Fax: +44 1480 396296 www.picotech.com Copyright © 2009 Pico Technology Ltd. All rights reserved. DO167-1...
