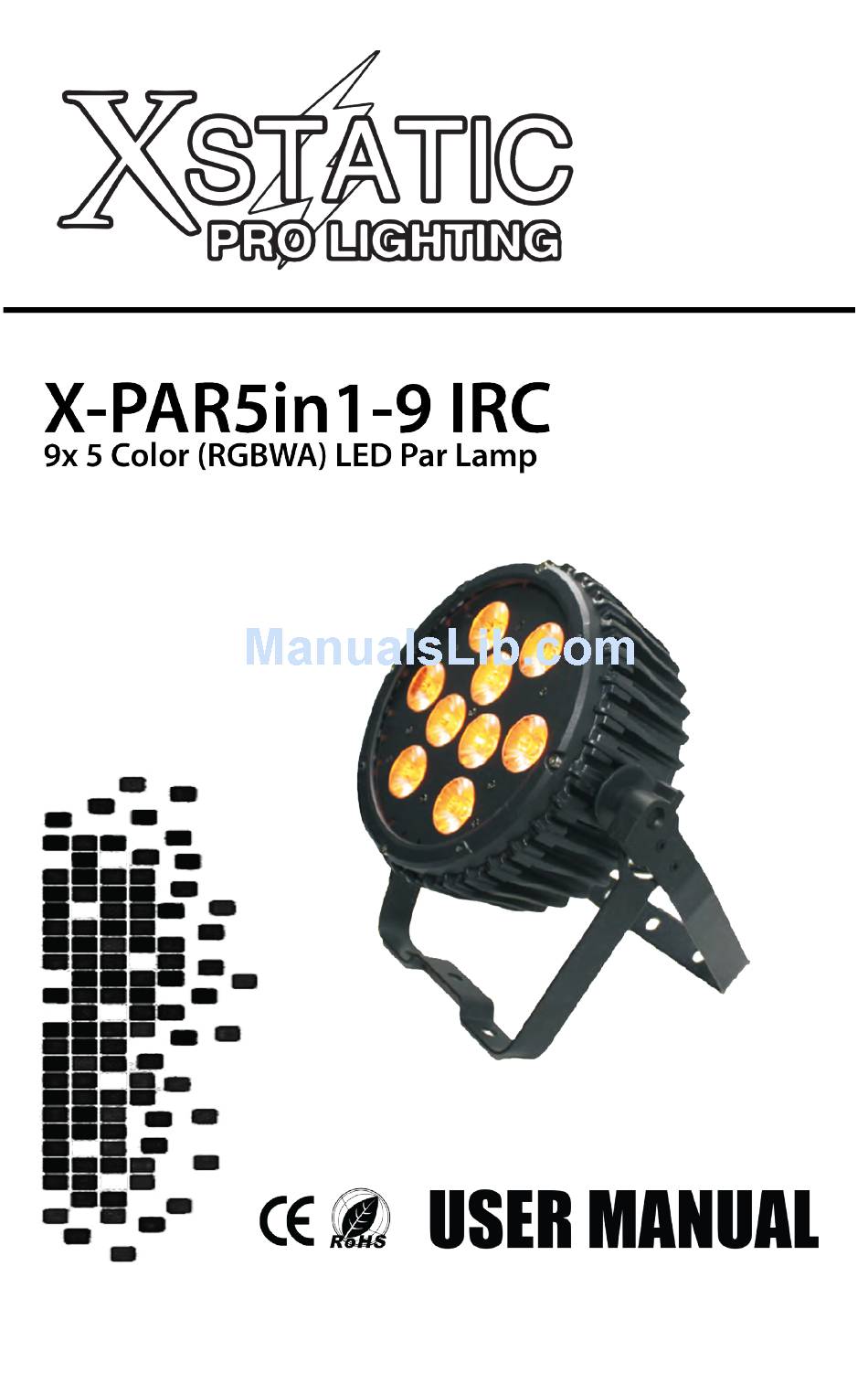

Summary of Contents for Xstatic Pro Lightning X-PAR5In1-9 IRC
- Page 2 High Power Indoor PAR, 9x RGBWA 3W User Manual...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS: CAUTION! READ BEFORE USE! For your own safety, please read this user manual carefully before you initially power up your fixture. ● Examine packaging to ensure all parts included ● Disconnect all power and other cables prior to servicing ●... - Page 4 FEATURES: ● RGB Color Mixing ● Color Strobe Effect ● Color Mix Effect ● LED Chases (Adjustable Speeds) ● Electronic Dimming 0-100% ● Operating Modes: Sound Active, Master / Slave, or DMX Control ● DMX-512 Protocol Compatible (ch’s 5, 7, 9) ●...
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS: ● Voltage: 100V~240V,50Hz~60Hz ● LEDs: 9 x 10W RGBWA LEDs ● Power Consumption: 84W ● Weight: 3.4Kgs. ● Dimensions: 263 x 295 x 88mm ● Colors: RGB Color Mixing ● DMX In and Out ● LCD Control Screen ●... -
Page 6: Menu Controls
MENU / CONTROLS: SETUP MENU: You can easily setup and control your TRI5in1-9LED Par light from the on-board LCD screen. Using the MENU, SETUP, UP and DOWN, buttons, you will find the following options to select and modify: The Control Screen with MENU, SETUP, UP, and DOWN Navigation buttons. - Page 7 MENU OPTIONS CONT’D: Now pressing SETUP and the UP and DOWN buttons will navigate within these Program’s choices and settings. You will now see in the F500 display field indicating the program speed. Press UP or DOWN to scroll through to the highest speed at (1-100).
-
Page 8: Dmx Mode
MENU OPTION CONT’D: 4. SOUND MODE - This menu will let you select your desired Sound Mode Setting. Press the MODE button until displays on the Menu screen. The menu SUND will display the parameters where the user can set the level of SU.00 - SU.3 1. - Page 9 DMX SETUP (CONTROL OPTIONS)
- Page 10 DMX SETUP CONT’D: Assembling a DMX Chain is as simple as connecting two more more fixtures with DMX In/Outs with the proper DMX specific 3-pin XLR-style cables. NOTE: The last or final fixture in the DMX chain MUST have a terminator plug.
-
Page 11: Dimming Mode
INFRARED REMOTE FUNCTIONS: 8. INFRARED REMOTE OPTIONS Your fixture comes with an Infrared Remote Control. This requires aiming the remote forward and at the face of the light in order to send it your selections. The remote has two sections of control, settings and colors. - Page 12 (NO DIRECT SALES, DEALERS AND DISTRIBUTORS ONLY) Please Register your product warranty on ProXDirect.com, submit your testimonials and setup photos to our website, & Tag us on your social media websites. #proxdirect...
