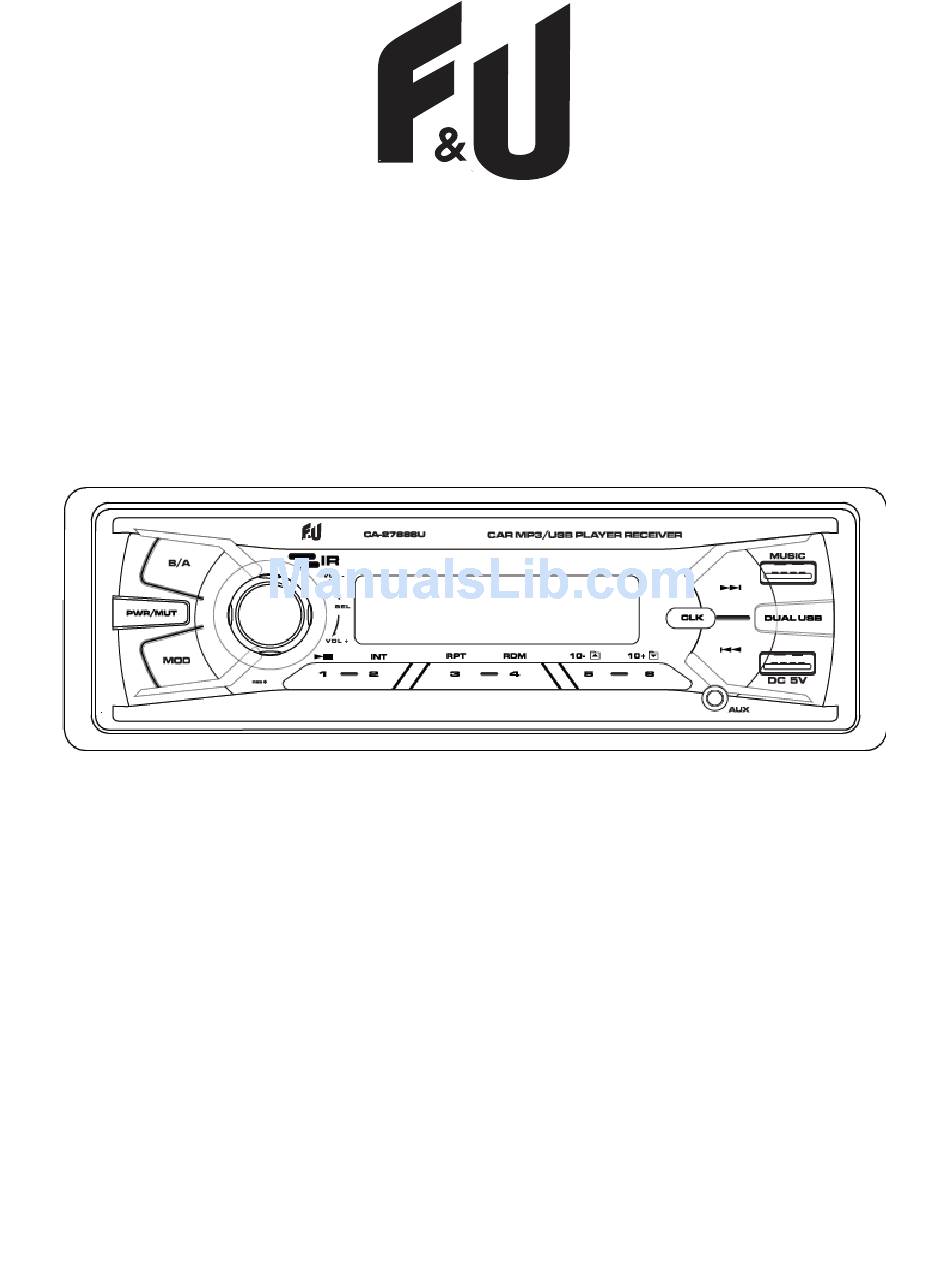

- Page 1 INSTRUCTIONS MANUAL CAR AUDIO Model No.: CA 2788SU Please read the instructions before use...
-
Page 2: Key Functions
Key Functions: 1. Power/MUT Button Power control: Press to turn on. Press and hold to turn off. Mute control: While unit is on, press once to temporarily turn off the volume, press again to recover to the previous volume. 2. B/A Button In Radio mode, press to change among FM1-FM2-FM3. - Page 3 6. CLK Button Press to display and adjust the time. Button In Radio mode, press to fast forward to your desired channel. In MP3 mode, press to fast forward the track. 8. USB Slot – Music Insert USB for MP3 playback 9.
- Page 4 16. 6/+10 & Folder button In MP3 mode, press this button to forward 10 songs at one time. Press and hold to select next folder. 17. Aux In Function Choose to connect and play any compatible external audio equipment. Button In Radio mode, press to tune backward to your desired channel.
- Page 5 Main Functions: Electronic Tuning Stereo FM Receiver with ID3 Dual USB Slot with Aux In Support charging mobile phone and listen to playback at the same time Digital LCD Display / Real Time Clock Electronic Audio Control: VOL/BAS/TRE/BAL/FAD Electronic Preset EQ: POP/ROCK/CLASS Night Illumination –...
- Page 6 Then slightly rotate the rotary knob or press VOL-/VOL+ on remote control to set the hour, to confirm the hour setting, press SEL. Then again rotate the rotary knob or press VOL-/VOL+ on remote control to set the minute. To confirm the time setting, simply press SEL button. 4.
- Page 7 4. When the file type is WMA; then WMA icon is found on the display. 5. Press fast forward to go to next track and press rewind backward to rewind to the previous track. 6. When MP3 is playing, press “1” number button to pause it and to resume it by pressing “1” again.
-
Page 8: Installation
Installation The unit has antitheft locked box design, please follow the below installation instruction: 1. Push the trim plate against the chassis until it is fitted. 2. Insert the unit into the dashboard then push the unit into the metal chassis until it is locked. Attention: 1. -
Page 9: Troubleshooting
Trouble Shooting Symptom Cause Solution No Power Speaker cable is disconnected. Check to see that all the power Poor power connection. and speaker leads are securely connected. The fuse is burnt out. Replace the fuse. No Sound Volume is set to the minimum. Adjust volume to a desired level. -
Page 10: Declaration Of Conformity
Audio High Power Output – 4x20 Watts Speaker impedance – 4 Ohms ~ 8 Ohms FM Tuning Frequency Range – 87.5 – 108 MHZ Usable Sensitivity – 10dB (S/N 30 dB) 15 dB Declaration of Conformity This product complies with the standards of the below directives: RED Directive 14/53/EU RoHS2 Directive 11/65/EU amended by the CE-marking Directive 93/68/EEC...
