Chronos DS3525U3-2 Installation Manual

1. Getting Started

Kit Contents

● Dual Bay Dock
● Connection Cable
● Power Adapter
● Quick Installation Guide (QIG)

3. Information before Using

The content of this installation information is the latest version relating to this device. If any relative content is changed,
it will be published on manufacturer's website.
We strongly advise that you make a data backup before commencing the cloning process in case of a power failure during
the cloning process. The manufacturer can't accept the responsibility for the loss of data or the misuse of the device.
Please also check the content of the package before commencing with the use of the device.

Minimum System Requirements

Intel Pentium II 350 MHz Compatible or Mac G3 Processor & greater
Microsoft Windows XP/Vista/7 compatible
USB-equipped system (Optional)
For USB3.0 speed, the system must come with USB3.0 specifications

4. Formatting Hard Drive

If you are using new/unformatted hard drives, you will need to first format and partition the drives before your operating
system will recognized them. Please refer to the documentation included with your hard drive and/or operating system
for more information about correctly formatting a hard drive.

5. Disk Dock Operation

The dual bay clone dock primarily functions as a 2-bay drive dock that allows you to easily connect up to 2 hard drives
to your computer through a single USB connection.

2. Main Features

1. Supports 2.5 inches & 3.5 inches SATA I/II HDD
2. Supports hardware duplication
3. Output interface USB3.0 / eSATA (optional)
4. Easy installation, plug & play and hot-swappable
5. With LED indicator for working sta

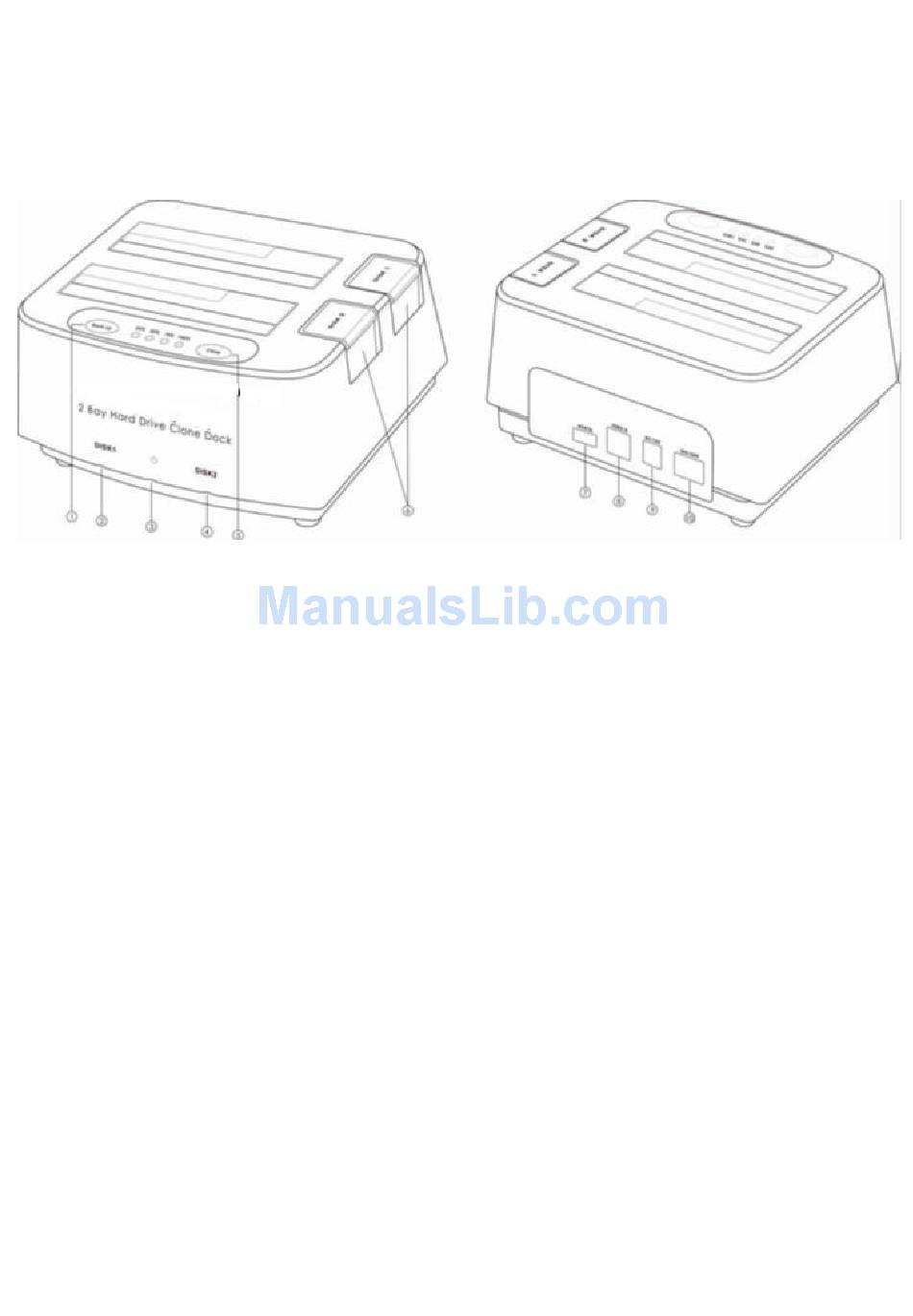

Product Overview

1. OTB button
3. Power indicator
5. Hardware clone button 6. Disk eject buttons
7. eSATA port (optional)
9. Power socket
2. Disk 1 LED (Source Drive Bay)
4. Disk 2 LED (Target Drive Bay)
8. USB3.0 port
10. Power switch
