Channel Vision CVT-2/4PIA-II Manual

Specifications: (typical @25º C)
CVT-2/4PIA-II
Gain
Cable In to Out: 7dB
54MHz - 1000MHz
Mod In to Out: 2dB
450MHz - 1000MHz
Reverse Gain
Out to Cable In: -14dB
5 - 42MHz
Isolation Out / Cable In: -80dB 450MHz - 1000MHz
Flatness: ± 2dB (all outputs terminated)
Noise Figure: 3.8dB
Hum modulation: -70dB
RFI rejection: -130dB
Power supply: 12VDC @ 500mA (supplied)
Specifications subject to change without notice.
CHANNEL VISION

Limited Warranty

Channel Vision Technology will repair or replace any defect in material or workmanship which occurs
during normal use of this product with new or rebuilt parts, free of charge in the USA, for two years from
the date of original purchase. This is a no hassle warranty with no mail in warranty card needed. This
warranty does not cover damages in shipment, failures caused by other products not supplied by
Channel Vision Technology, or failures due to accident, misuse, abuse, or alteration of the equipment.
This warranty is extended only to the original purchaser, and a purchase receipt, invoice, or other proof
of original purchase date will be required before warranty repairs are provided.
Mail in service can be obtained during the warranty period by calling (800) 840-0288 toll free. A Return
Authorization number must be obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other rights (which vary from state to
state). If a problem with this product develops during or after the warranty period, please contact
Channel Vision Technology, your dealer or any factory-authorized service center.
CVT-2/8PIA-II
4dB
2dB
Both models
500-004 rev A

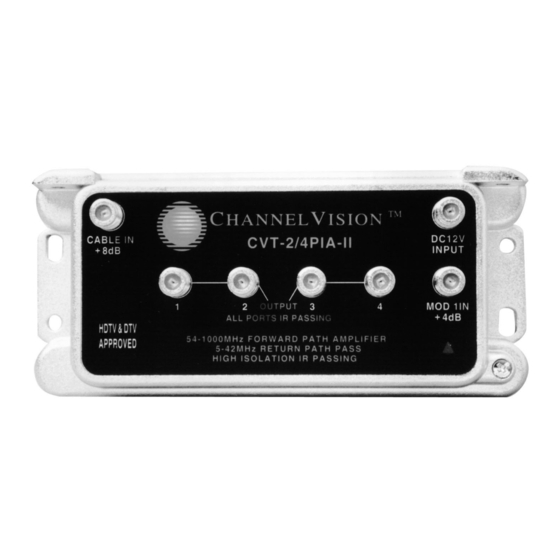

CVT-2/4PIA-II
CVT-2/8PIA-II
Amplified RF splitters
C
H A N N E L
234 F A
ISCHER VENUE
(714) 424-6500 • (800) 840-0288 • (714) 424-6510 fax
www.channelvision.com • email: sales@channelvision.com
© 2003 Channel Vision Technology
V
I S I O N
TM
• C M , CA 92626
OSTA ESA
