Summary of Contents for Cooper Security i-dig02

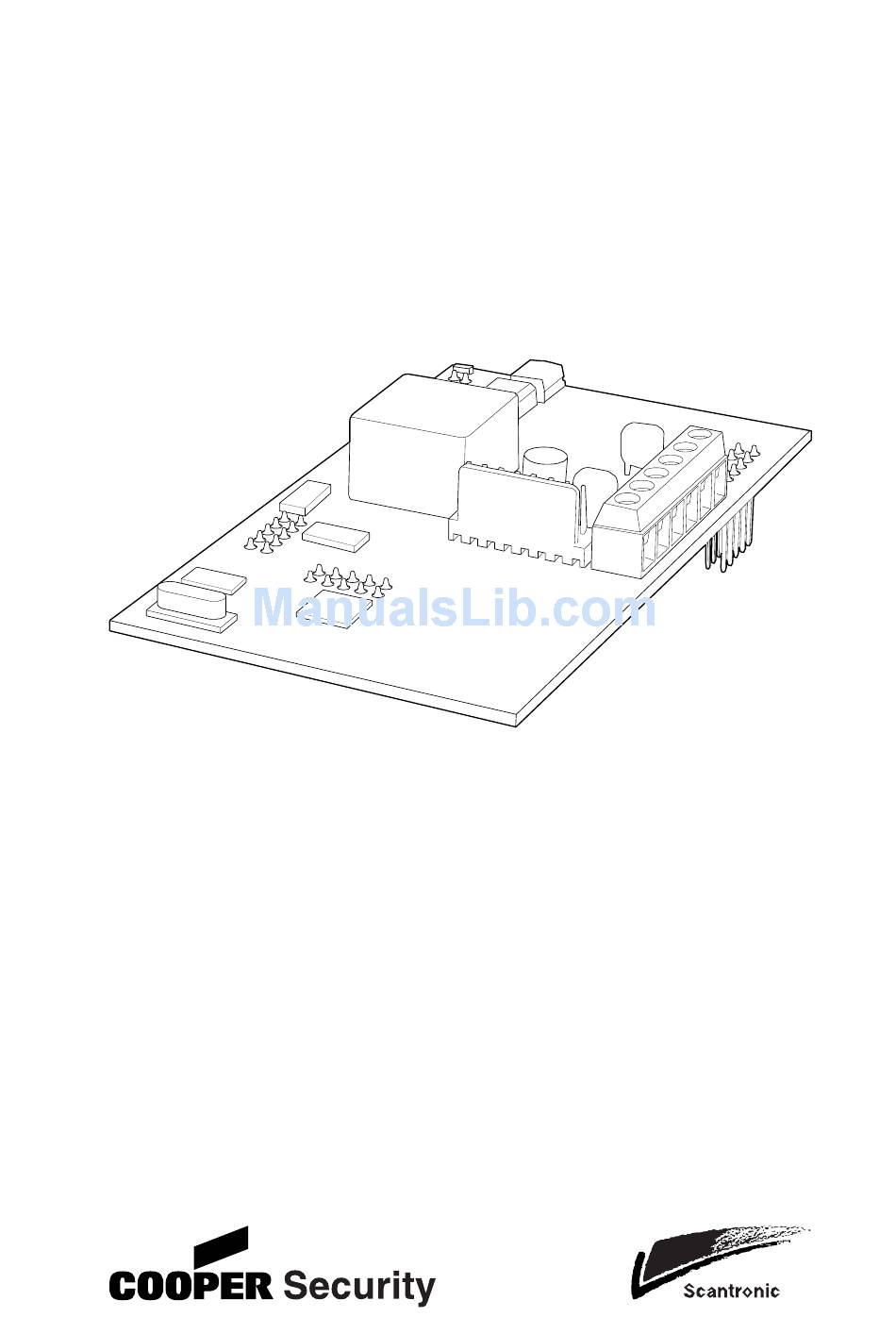

- Page 1 Digital Communicator Installation Guide...
- Page 2 Introduction The i-dig02 module is designed to fit on the i-on40 control unit. The i-dig02 allows the control unit to report alarm conditions over the public switched telephone network (PSTN) using standard ARC protocols such as Fast Format, SIA I, -II, –III, or extended SIA, Contact ID, or SMS (Short Message Service) texts to mobile telephones by way of the PSTN.
- Page 3 Before fitting the i-dig02 module, check whether the telephone line you intend to use is shared with an ADSL (broadband) modem. If it is, then remove the factory fitted jumpers from the i-dig02 and fit filter ADSL01 as shown in Figure 3 .
- Page 4 1. Remove mains power from the end station. 2. Open the end station lid and disconnect the battery. 3. Fit the i-dig02 to the plug on module sockets (see Figure 4). Figure 4. Fitting i-dig02 Module 4. Connect the module to the PSTN.
-
Page 5: Finishing The Installation
The person connecting the i-dig02 module to the PSTN must be suitably qualified. Connect the i-dig02 telephone connector (see Figure 5) ONLY to the PSTN or to other circuits designated as Telecommunications Network Voltage. Programming For details on programming the i-dig02 please refer to the i-on40 Programming Reference Guide. - Page 6 NOTES: Page 6...
- Page 7 NOTES: Page 7...
- Page 8 Every effort has been made to ensure that the contents of this book are correct. However, neither the authors nor Cooper Security Limited accept any liability for loss or damage caused or alleged to be caused directly or indirectly by this book. The contents of this book are subject to change without notice.
