Summary of Contents for SM Pro MBC502

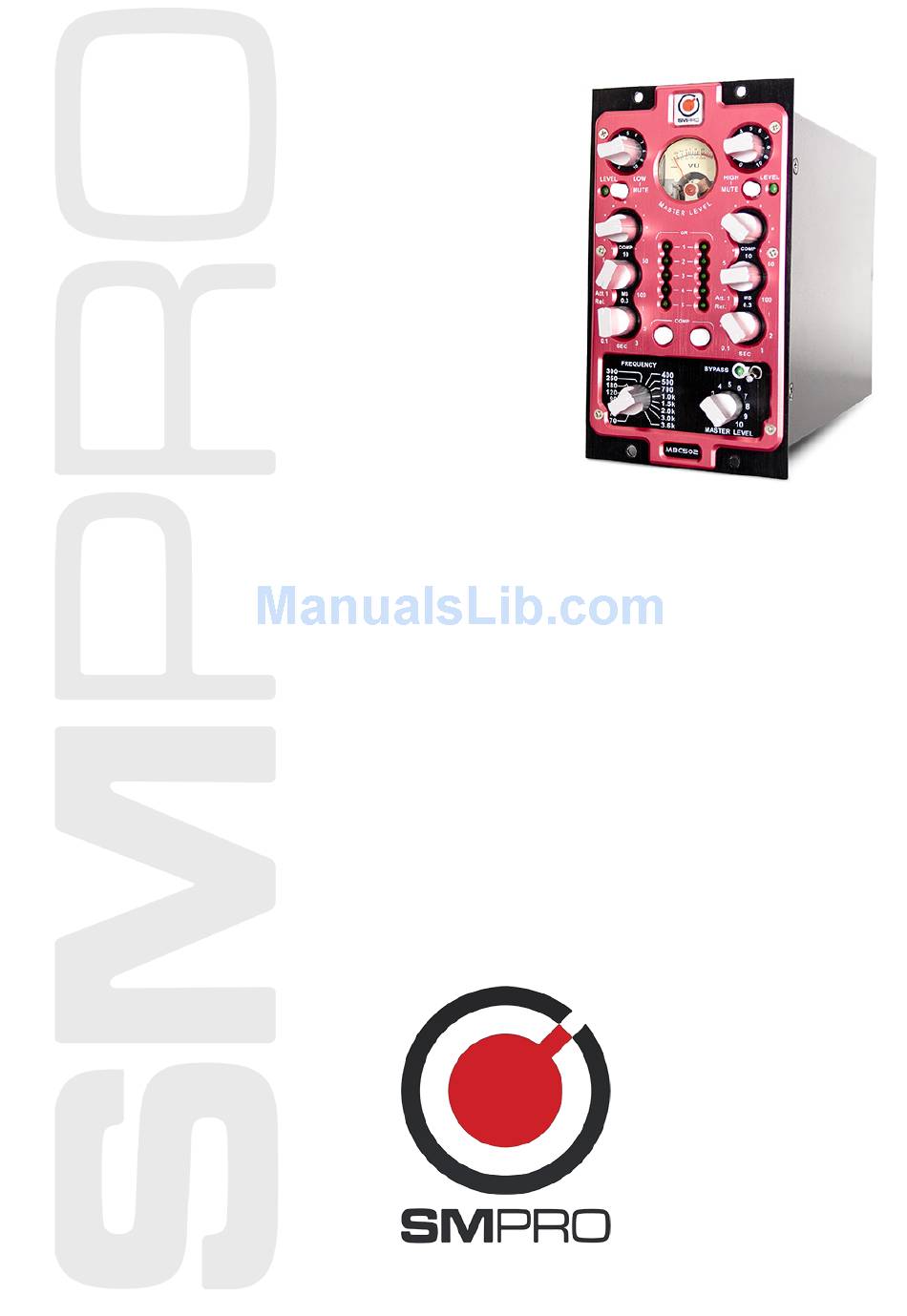

- Page 1 MBC502 500 series Optica l com pressor Operating Manual V1.1...
-
Page 2: Table Of Contents
10.3 Return Authorization Number ................9 10.4 Warranty Regulations .................... 9 10.5 Claim for Damages ....................10 10.6 Other Warranty Rights ..................10 11 FCC and CE Regulation ..................... 11 12 Correspondence ......................11 SM Pro Audio Page 2 of 11 MBC502 manual ... -
Page 3: Safety Instructions
NOT recommended. If the power is on whilst exchanging modules, the pins on the modules multipin connector may short and burn the regulator. For this reason, hot swapping of modules is not covered under the SM Pro Audio warranty. DETAILED SAFETY INSTRUCTIONS: All safety and operation instructions of this manual should be read and adhered to before operation. -
Page 4: Foreword
Dear Customer, Thank you for purchasing this SM Pro Audio product. Our MBC502 has been designed as a tool for use in home & professional studios, P.A. rental companies, Schools and in many other situations where audio products would be used. -
Page 5: Introduction
Introduction MBC502 is a 500 series module that occupies 2 slots in your 500 series rack. It is a dual band optical compressor with a Linkwitz-Riley 4 order (24dB/octave) crossover. Each channel – low frequency and high frequency offer control over level, compression amount, attack and release times. -
Page 6: Optical Compressor
Channel controls Controls for each channel are: Level The rotary knob control at the top of the MBC502 (labelled 0 to 10), controls the amount of output level on each channel. Mute The white push buttons marked LOW MUTE & HIGH MUTE mutes the audio signal for its respective channel. -
Page 7: Master Level
Frequency The Frequency rotary control is the sweep that selects the frequency at which the low and high band compressor is crossed over. The MBC502 employs a Linkwitz-Riley 4 order (24dB/octave) crossover. -
Page 8: Let's Play
Let’s play The MBC502 opamps are in DIP8 sockets, this simply means that users can interchange between different types of opamps to achieve different results, and we would be happy if you report the results to us as well. Please note that any damage caused in this process cannot be covered under warranty. -
Page 9: Warranty
The warranty does not cover any such modification/adaptation, irrespective of whether it was carried out properly or not. Under the terms of this warranty, SM Pro Audio shall not be held responsible for any cost resulting from such a modification/adaptation. -
Page 10: Claim For Damages
Products which do not meet the terms of this warranty will be repaired exclusively at the buyer‘s expense. SM Pro Audio will inform the buyer of any such circumstance. If the buyer fails to submit a written repair order within 4 weeks after notification, SM Pro Audio will return the unit C.O.D. with a separate invoice for freight and packing. -
Page 11: Fcc And Ce Regulation
If necessary, consult an experienced radio/television technician for additional suggestions. 12 Correspondence For technical support, warranty claims, and all other enquiries, please contact your local SM Pro Audio distributor. Contact details of all SM Pro Audio distributors list can be found online at http://www.smproaudio.com/index.php/en/dealers-‐distributors ...
