- Page 1 SMART MATE ELED UHD SMATE Smart Mate SMART TV Experience reality at its best! OPERATIONS Entertaining Australia! MANUAL For use with models: SM1UHDSE55, SM1UHDSE49 For support please contact us at support@smate.com.au www.smate.com.au...
-
Page 2: Table Of Contents
Installing Batteries to the Remote Control ....................15 TV Remote Control ............................17 Smart TV Operations ............................ 21 Traditional TV Operations ..........................29 How do I clean the TV? ..........................53 Troubleshooting ............................54 Specifications ..............................58 Support ................................60 © SMATE... -
Page 3: Declaration
This symbol alerts user about the presence of important operating instructions and maintenance in the document enclosed in the package. ATTENTION RISK OF SHOCK ELECTRIC Packaging and electrical goods should be recycled appropriately, and not treated as household waste. Please dispose of this equipment © SMATE... - Page 4 10. Lightning: For added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning or power-line surge. © SMATE...
- Page 5 TV is in safe operating condition. 19. Heat: The product should be situated away from heat s sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. © SMATE...
-
Page 6: Safety Instructions
© SMATE... -
Page 7: Safety Instructions
Any power source covered. Do not place the TV in a other than the specified one may cause bookcase or cabinet unless proper fire or electric shock. ventilation is provided. © SMATE... - Page 8 Unplug the power cord immediately and Operating environment: Temperature: 5°C contact your dealer for repair. Continued ~ 35°C, Humidity: 10% to 90% non- use of the product may cause fire or condensing, Altitude: 0~10,000 ft. electric shock. © SMATE...
-
Page 9: Important Information
TV from the wall outlet and disconnect the antenna or cable system. Power Lines Do not locate the antenna near overhead light or power circuits, or where it could fall into such power lines or circuits. © SMATE... -
Page 10: Attaching Or Removing The Stand
THE PANEL AS A RESULT OF UNSAFE HANDLING IS NOT COVERED UNDER THE WARRANTY. To attach the stand, place the display unit flat on a table. Afterwards match the 4 pins on the neck to the 4 pin holes on the stand. © SMATE... -
Page 11: Identifying Front And Rear Panel
The light turns blue when the TV is turned on. Because of the LED in the panel, the TV might take 10 – 12 seconds to power on. REMOTE SENSOR –When the remote control is under RF mode, the remote sensor receives RF signals from the remote control. -10- © SMATE... -
Page 12: Rear View Mounting Pattern
Please Note: The 8mm length of screw refers to how deep the screw can go inside the mounting holes. When you’re buying screws, you should add the original 8mm to the thickness of your mounting plate in order to get the total screw length. -11- © SMATE... -
Page 13: Side Control Buttons
P- – This button changes the TV channel down. If the OSD is active, this button functions as down for the menu. POWER – Turn on the TV by pressing the button once. Press the button again to turn off the TV. -12- © SMATE... -
Page 14: Rear View Connections
HD DVD player, or HD cable / satellite set-top box. This connection port receives pure digital audio and high definition signal through one single cable. This port can also accept a HDCP video device for video. -13- © SMATE... - Page 15 Please Note: This TV features a power saving function which will turn off the TV automatically after 10 minutes of idling on a connection with no signal. This feature is present on all connection. -14- © SMATE...
-
Page 16: Installing Batteries To The Remote Control
Dispose the batteries in accordance with local laws and regulations. Keep the batteries away from children and pets. If the remote control is not used for a long time, remove the batteries. Keep the remote control away from moisture, sunlight, and high temperatures. -15- © SMATE... - Page 17 If the remote control does not work when operated near the TV, replace the batteries. NOTE: Remove the batteries if the remote control is not going to be used for a long time. -16- © SMATE...
-
Page 18: Tv Remote Control
TV Remote Control This remote control is actually an air mouse, which has combined mouse function and traditional remote control function. -17- © SMATE... - Page 19 VOLUME UP/DOWN BUTTONS: Press to adjust the volume. -- Home button: back to launcher page. -- MUTE button: Press to mute or restore the TV sound. CURSOR BUTTON & OK BUTTON: Direction button for selecting up/down/left/right & Press to confirm and execute the selection. -18- © SMATE...
- Page 20 DTV mode. - arrow cursor. When this button is pressed, the arrow cursor will appear and when pressed again, it will disappear. - home button. Press it to take to smart mode launcher page. -19- © SMATE...
- Page 21 • To enter the numbers and characters shown on the keys in blue, press the ‘Alt’ button first, followed by the chosen letter button. • The ‘Backspace’ button on the keyboard performs the delete function. • As an alternative to the remote control keyboard, you can use the on screen keyboard. -20- © SMATE...
-
Page 22: Smart Tv Operations
The TV portal; Gallery application; Favorite applications and in the upper right corner it will display network and SD card state. The Navigation bar: Click on the corresponding icon to jump to Play Store app, Browser, Apps, Settings or Media. -21- © SMATE... - Page 23 Choose “Settings”, and Press OK button to display the settings interface. The following is a brief description of the function of each menu: Network Wi-Fi Turn ‘on’ Wi-Fi to search for the network to connect to and follow the prompts to enter the password to connect. -22- © SMATE...
- Page 24 This sub item will display the status of the wired network connection, and the user can set up the network agent here. PPPoE The user can enter the account number and password provided by the telecom operators to dial-up for Internet access. -23- © SMATE...
- Page 25 In this menu, you can set the volume; notify the prompt tone, button prompt tone, as well as other audio settings. Apps In this menu, you can view the system applications, running applications and all installed application. -24- © SMATE...
- Page 26 Here you can view the details of the internal storage space and the use of the SD card. With backup & reset, you can do factory data reset. After resetting, all user installed data on TV will be erased. -25- © SMATE...
- Page 27 You can modify the date and time, and also choose to synchronize with the date& time of the connected network. Please ensure the right time zone is selected as it ascertains the right EPG times for the DTV operation. -26- © SMATE...
- Page 28 Language System language can be selected here. Keyboard User keyboard can be customized to personal preferences using keyboard input settings and you can also view the personal dictionary. -27- © SMATE...
- Page 29 The user can set the security function in the menu: whether to allow the installation of unknown source program, application program verification, limit the application to access your account, allowing Android device manager to lock device or erase the data on the device which has been lost. -28- © SMATE...
-
Page 30: Traditional Tv Operations
Press the “source” button on the air mouse, to display the input source menu, select the corresponding input signal source and press the confirm button to enter the relevant signal source. TV MENU Press the “menu” button to display the menu Picture -29- © SMATE... - Page 31 • User: Selects your custom sound settings (See "User settings for Sound”). Balance If the volumes of the left speaker and the right speaker are not the same, you can adjust the "Balance" to suit your personal preference. -30- © SMATE...
- Page 32 You can use the search button to choose the frequency. Press OK button to search, and then the TV will store the DTV channel if there is a DTV signal present. Bandwidth Switch Please note: Default for Australia is 7 -31- © SMATE...
- Page 33 Fav: If you like the program of a channel, you can press the FAV button on the remote control to add it to your favourite list. You can later press the FAV button on the remote control to navigate to your favourite program. Creating Favourite List: Press the Fav button to add to favourite list: -32- © SMATE...
- Page 34 So, unlike analogue channels, you are not able fine tune a digital channel. If the signal strength indicates that the signal is weak, a possible solution is to adjust your antenna to increase the signal strength. Continue to adjust the antenna until you find the best position with the strongest signal. -33- © SMATE...
- Page 35 EPG button to display the EPG interface (above). The area at the top will display information about the selected program or channel. NOTE: You can go to Settings > Menu Time to edit how long the MENU & EPG is displayed on the screen -34- © SMATE...
- Page 36 You can revert back to the channel program list by pressing the View”. By scrolling to the preferred program and pressing the “green” info button, a sub-menu displaying the program information can be displayed as per below. Program View: -35- © SMATE...
- Page 37 If in the above view (program view), the “red” Record button is pressed with the PVR system set-up properly (please refer the PVR system information in the guide), it will display the menu as below to allow for instant program recording. -36- © SMATE...
- Page 38 In the channel view as per below, if the “red” Record button is pressed with the PVR system set-up properly (please refer the PVR system information in the guide), it will display the menu as below to allow for scheduling program recording (Please refer PVR system information for PVR set-up & guide). Channel View: -37- © SMATE...
- Page 39 PVR Scheduling View: For displaying the schedule of events to be recorded, press the “yellow” button to display the schedule which can further be edited or deleted. Schedule View: -38- © SMATE...
- Page 40 For scheduling a reminder of a program it can be done by pressing the “blue” Remind button in either “Program View” or “Channel View” to set the program reminder as per below. Reminder View: -39- © SMATE...
- Page 41 Press the “INFO” button to display full program information on the top of your screen as per below. “RETURN” button to exit the EPG menu. You can press -40- © SMATE...
- Page 42 NOTE: In the Program View, if the Program Guide Channel is highlighted and scrolling is done ◄or ►buttons to view the Channel View, it will automatically display the current by pressing program channel in the list, highlighted in blue for easier browsing. Program View: -41- © SMATE...
- Page 43 NOTE: If it’s not done, then the PVR system may not work properly and interfere with DTV channel broadcasting. WARNING: 1. Before connecting your USB device to the TV, please back up your files to prevent them from damage or loss of data. -42- © SMATE...
- Page 44 This is not a malfunction, please wait for the formatting to finish. And if you wish to use the format feature please back up all your existing files as any existing content on the memory device will be deleted. -43- © SMATE...
- Page 45 Press “EPG” on the remote control, and press the “yellow “button, for “Schedule”. It will list all the scheduled programs. You can modify and/or delete the schedule When it’s time to record, other source/s will stop and revert back to DTV channel being recorded -44- © SMATE...
- Page 46 Channel View>Record: Please set the channel, time & dates as per example below and press the OK button. It will display a message “success” to confirm the recording schedule has been set successfully. PVR Scheduling View (Channel View>Record): -45- © SMATE...
- Page 47 (such as HDMI, Android), it will revert back to the recording channel. If the TV is off-standby, it will start to record in standby mode with the LED sensor light flashing green and red. PVR Schedule View (EPG>Channel/Program View>Yellow Schedule Button: -46- © SMATE...
- Page 48 “STOP RECORDING. System will stop record if user wants to change channel or enter some other TV mode. -47- © SMATE...
- Page 49 Windows, it may not be recognised. Ensure any USB devices connected to the TV do not use/exceed 500mA power rating. If an “Unsupported File” message is displayed, the file format or codec is unsupported or corrupted. -48- © SMATE...
- Page 50 To list the devices which have been connected to the TV via HDMI connection. Restore to Default It will reset DTV mode to the default factory settings. NOTE: Re-tuning of channels will be required after the reset. -49- © SMATE...
- Page 51 You can press any button to cancel the timer function and not enter the sleep mode. The sleep timer you have set will be cancelled when the TV turns off, or if a power failure occurs. -50- © SMATE...
- Page 52 Use the lock system for blocking channels or programs of certain ratings like MA15+, AV15+, Set Password The default password is 0000. Set user defined password for the locking system. Block Program Set channels for blocking Parental Guidance Set programs of certain rating like MA15+, AV15+, R to be blocked -51- © SMATE...
- Page 53 Media When you insert USB disk into the USB port, it will show a message, check whether open the disk. Or you can also press “Source” button, choose “Media Browser” and access the disk. -52- © SMATE...
-
Page 54: How Do I Clean The Tv
When the screen is dirty to the point where you cannot simply dry wipe it, please lightly dampen the wiping material with clean water and wipe again. Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterwards. -53- © SMATE... -
Page 55: Troubleshooting
If you CHANNELS have a cable connection, please contact your cable company THROUGH THE and ask them about the signal strength of your local cable ATSC/NTSC TUNER connection. -54- © SMATE... - Page 56 I CANNOT CHANGE Your TV syncs time automatically according to your local TV channel. This function only works while the TV’s tuner is THE TIME MANUALLY FOR DTV connected to an ANTENNA. -55- © SMATE...
- Page 57 PICTURE AFTER PVR experience no sound or picture after the TV is turned on in RECORDING ON DTV mode, please change source to ATV and then back to STANDBY MODE DTV or simply power off/on the TV to resolve. -56- © SMATE...
- Page 58 If it does, then press install and select FINDING APPS your listed TV as the device for installation. It should then push the same installation onto your TV. We ensure compatibility of the Playstore app with the Android version from the factory. -57- © SMATE...
-
Page 59: Specifications
Bass / Treble / Balance Bass / Treble / Balance Spdif Out Yes (coax) Yes (coax) Speakers 8 watt per channel 8 watt per channel Surround Sound Build In Build In Sound Equalizer 5 Bands 5 Bands -58- © SMATE... - Page 60 1 output x Earphone out 1 output x Coaxial out 1 output x Coaxial out *The product’s specifications may change without notice or obligation. **The manual is for references only and is subject to change without notice or obligation. -59- © SMATE...
-
Page 61: Support
1.6 The product will be at the owner's risk whilst in transit to and from the Smate Authorised Service Centre, unless transported by Smate or its Authorised representatives. - Page 62 3.0 To the full extent permitted by law but subject always to section 1.1: 3.1 Smate will not be liable for any loss, damage or alterations to (1) third party hardware or software; or (2) programs, data or information stored on any media or any part of the product, no matter how occurring;...
- Page 63 -62- © SMATE...
Need help?
Do you have a question about the SM1UHDSE55 and is the answer not in the manual?
Questions and answers
What remote control can I buy for this TV? Thank you.

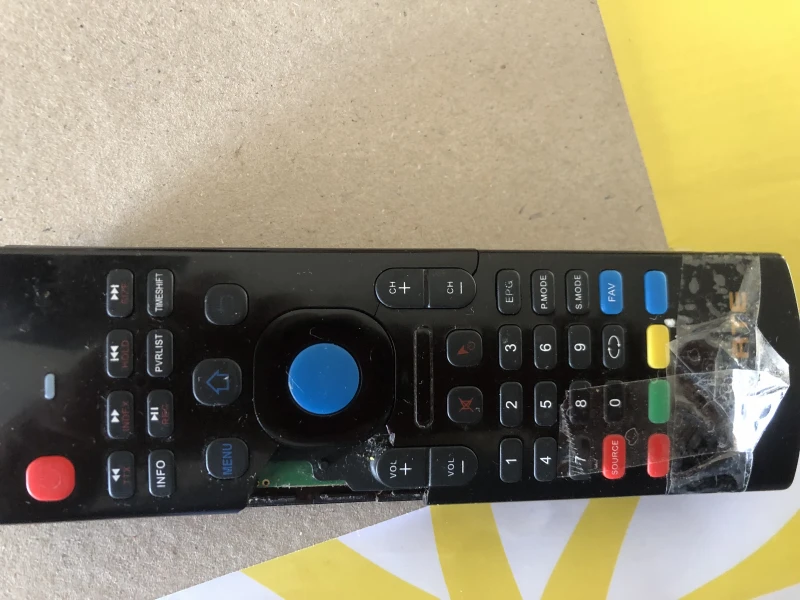

The compatible remote control for the SMATE TV model SM1UHDSE55 is an air mouse that combines mouse and traditional remote control functions and operates in 2.4G mode.
