MODO-KING SFR1M44-LUN User Manual

Floppy to usb conversion unit for muller3 staubli-jc5 bonas
Hide thumbs
1
2
Table of Contents

Advertisement

Quick Links

Download this manual
SFR1M44-LUN for MULLER3 STAUBLI-JC5 BONAS

Features:

Use ordinary usb pen driver as the medium for transfer design.
Same size, same interface with floppy driver, easy to install.
Connect through floppy driver interface, no need to modify system settings.
1.44Mb built-in flash memory, used for conversion of file system between usb pen driver and format of
floppy disk.
Files in root directory and 99 folders can be searched, 4-level subdirectories can be used in 99 folders.
Long file name of design available, suitable for format of design used on STOLL.

Installation:

Shut down the power of machine, connect through 34pin floppy driver interface.

Function:

Two 8segment LED correspond with the name of folder, 00 regard as the root directory, and 01-99 is for
folder. Name of folder must start by a number '0', and then the 00-99, for example, folder name: 028muller ,
the 'muller' is named by user.
Two button used to select the 8segment LED from 00-99, left is tens-digit, right is single-digit, and after
plug a usb pen driver, the 2 button used as IN and OUT instruction. Press the IN button to transfer files from
usb pen driver to built-in memory. When the total capacity of files in current directory exceed 1.44Mb, press
IN button again to transfer files into built-in memory, and the OUT button is used to transfer files from
machine to usb pen driver.

Operation:

Read sequence:

1.Select root or folder by 2 button(tens/single) before plug usb pen driver
2.Plug usb pen driver
3.8segment change to 'd0', 1-20 seconds later, return back to number of folder
4.Operate machine to read disk.
5.If total capacity of files in current directory exceed 1.44Mb, and file you need is not in current space,
press IN(single),go to step 3 and 4.

Write sequence:

1.Select root or folder by 2 button(tens/single) before plug usb pen driver
2.Plug usb pen driver
3.8segment change to 'd0', 1-20 seconds later, return back to number of folder
FLOPPY TO USB CONVERSION UNIT FOR
MULLER3 STAUBLI-JC5 BONAS LABEL WEAVING MACHINE

User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFR1M44-LUN and is the answer not in the manual?

Questions and answers

Summary of Contents for MODO-KING SFR1M44-LUN

  • Page 1: User Manual

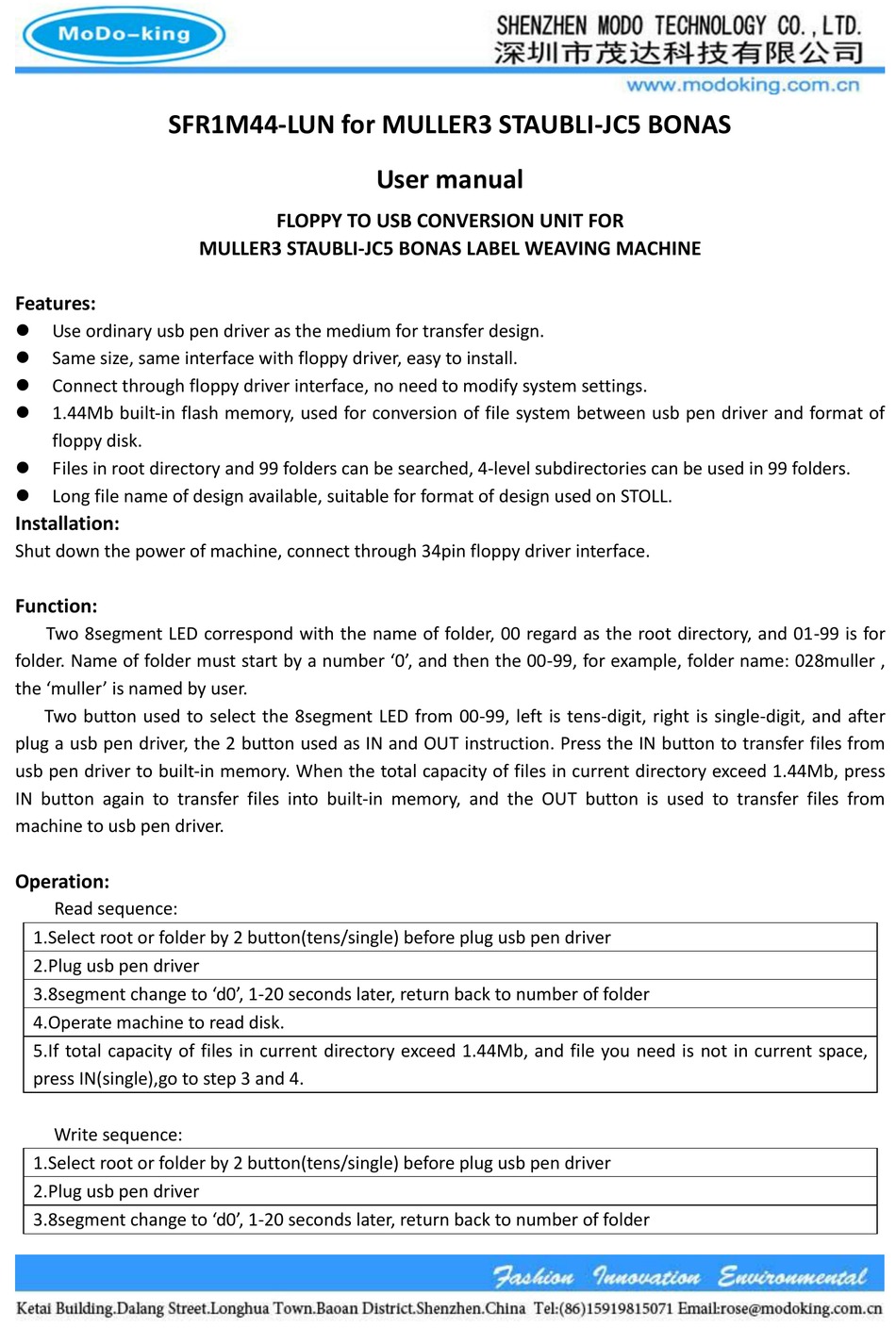

    SFR1M44-LUN for MULLER3 STAUBLI-JC5 BONAS User manual FLOPPY TO USB CONVERSION UNIT FOR MULLER3 STAUBLI-JC5 BONAS LABEL WEAVING MACHINE Features:  Use ordinary usb pen driver as the medium for transfer design.  Same size, same interface with floppy driver, easy to install.
