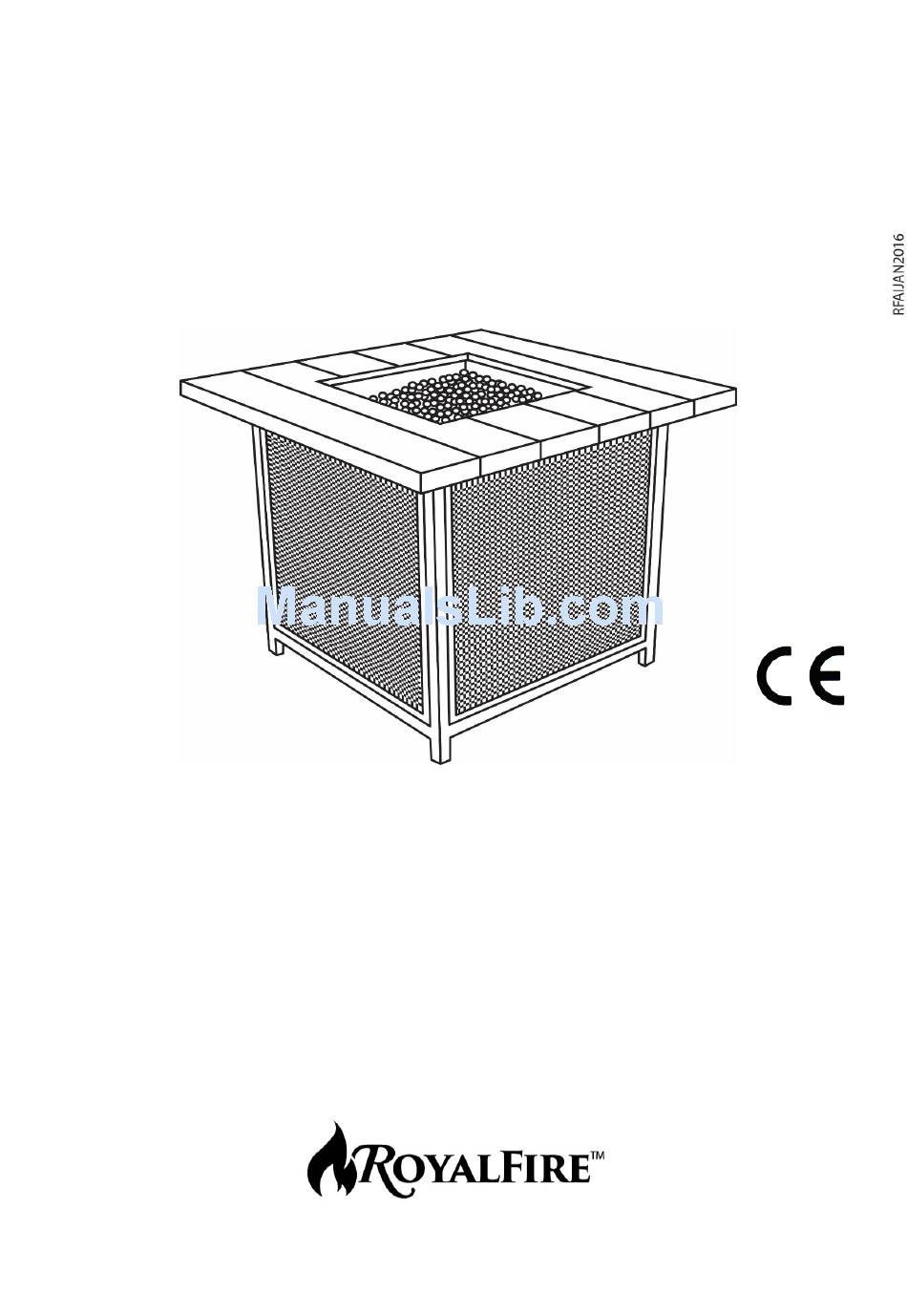

Square Gas Firepit
Assembly Instructions
0051-15
This appliance is intended for decorative purposes
Warning: For Outdoor use only!
Not for domestic use!
Keep the instruction for future reference!
"These instructions are only valid if the country symbol appears on the instruction manual and on the appliance"
Product Code: RFJC34501GF-MB
Advertisement
Table of Contents
Summary of Contents for RoyalFire RFJC34501GF-MB
-
Page 1: Assembly Instructions
This appliance is intended for decorative purposes Warning: For Outdoor use only! Not for domestic use! Keep the instruction for future reference! “These instructions are only valid if the country symbol appears on the instruction manual and on the appliance” Product Code: RFJC34501GF-MB... -
Page 3: Table Of Contents
WARNING: • Do not modify the appliance; • Do not move the appliance during use; • Turn off the gas supply at the gas container after use • Accessible parts may be very hot. Keep young children away • The appliance should not be used in basements or below ground level. •... -
Page 4: Specification
SPECIFICATION Product Name Square Gas Firepit Model RFJC34501GF-MB Gas Type LPG gas mixture Butane at (28~30) mbar/ LPG gas mixture Propane at 37mbar Gas Category 3B/P (30) 3B/P (50) Pn (mbar) 28~30 28-30/37 Nominal heat input (Hs) 12 kW Gas consumption... -
Page 5: Gas Firepit Safety Warnings
GAS FIREPIT SAFETY WARNINGS WARNING: Failure to heed the Dangers, Warnings and cautions contained in this Instruction Manual may results in a serious explosion causing damage to property, bodily injury. & WARNINGS FOR YOUR SAFETY GENERAL WARNINGS FOR OUTDOOR USE ONLY- DO NOT OR STAND ON TABLE Warning -For your safety •... - Page 6 • Any sealed parts by Manufacture or his agent cannot be altered by the user • Do not store or use gasoline or other flammable vapors and liquids within 25 feet (7.62m) of this or any other appliance. • Do NOT store any combustible materials in the base enclosure. •...
- Page 7 • Storage of this outdoor fireplace indoors is permissible only if the tank is disconnected, removed from the outdoor fireplace and properly stored outdoors. • Do not attempt to disconnect the gas regulator from the tank or any gas fitting while the outdoor fireplace is in use. •...
-
Page 8: Liquid Propane Gas Warnings
LIQUID PROPANE GAS (LPG) WARNINGS • LP gas is flammable and hazardous if handled improperly. Please review the characteristics before using any LP gas product. • Propane Characteristics: • Flammable, explosive under pressure, heavier than air, and settles in pools in low areas. In its natural state, propane has no odour. - Page 9 • Use only the type of gas and the type of LPG cylinder specified by the manufacturer. • Appliance is fitted with gas regulator, flexible gas rubber pipe and clamps according to the National Rules in force of the country of destination. •...
-
Page 10: Expanded View
EXPANDED VIEW... -
Page 11: Installation
INSTALLATION Packed components list: Item Description Quantity Fire Pit 1 pc Lava rocks 3 kg AAA Battery 1 pc... -
Page 12: Set Up
Set up This Gas Fire Pit must be installed on flat, stable surface, away from any combustible materials or construction. • Remove fire pit from a carton and remove cylinder cargo from another carton, place them on any level, non- combustible surface. -
Page 13: Connecting Gas Circuit To Lpg Cylinder
• Open the door, and Take down the lid of cylinder cargo carefully and put it in the center of the tank bracket (See the picture 6-7) • Locate the hose out of the pathways where people may trip over it or in areas where the hose may be subjected to accidental damage. -
Page 14: Operating Instructions
• Connect the hose to the appliance and the regulator. Tighten the screw of the hose clamp with a screwdriver. (see below Figure9) (Picture 9) OPERATING INSTRUCTIONS Lighting Before ignite the appliance, perform “Leakage Testing” in a well ventilated area (outdoor). At first use and after every LPG cylinder substitution, appliance gas circuit must be purged of the inside air before igniting! To do this, turn the control knob counter-clockwise to the ignition position and push it holding for 1 minute before attempting ignition. -
Page 15: Leakage Testing
7. Adjust the heat input by turning the knob from the Maximum position (big flame), to the Minimum position, as properly. 8. After lighting, turn knob from Minimum to Maximum (big flame) position and back, to check flame stability. 9. In case of accidental break down of the flame (for wind or other reasons), FSD will shout-off gas supply automatically (FSD = Flame Safety Device) not over 60 seconds. -
Page 16: Maintenance And Cleaning
MAINTENANCE AND CLEANING To enjoy years of outstanding performance from your appliance, regular services of the appliance is mandatory as followings: • The appliance should be inspected before at least one time a year by a Qualified Service only. More frequent cleaning may be required according to the use of the appliance. -
Page 17: Storage (After Use)
STORAGE (after use) Turn control knob in “OFF” position (full disk). Turn LPG cylinder in “OFF” position. Store the appliance in a cool dry place away from direct sunlight; store it upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris). If desired, cover to protect exterior surfaces and to prevent build up in air passages. -
Page 18: Troubleshooting
TROUBLESHOOTING Problem: Condition: Solution suggested: Control knob is not in Maximum position (big Turn control knob in Maximum position (big flame). flame). LPG cylinder valve is closed / Empty. Open the valve / Replace LPG cylinder with a new one. Blockage in the injector. - Page 20 Royal Fire | Cozy Bay Ltd | Unit 26, Upton Industrial Estate, Factory Road, Poole, Dorset, BH16 5SL | England & Wales Reg. 06641823 Tel: 01202 622331 | www.CozyBay.co.uk...
