Marine PC MPC-MI19 User Manual

19” bridge display type approved by abs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

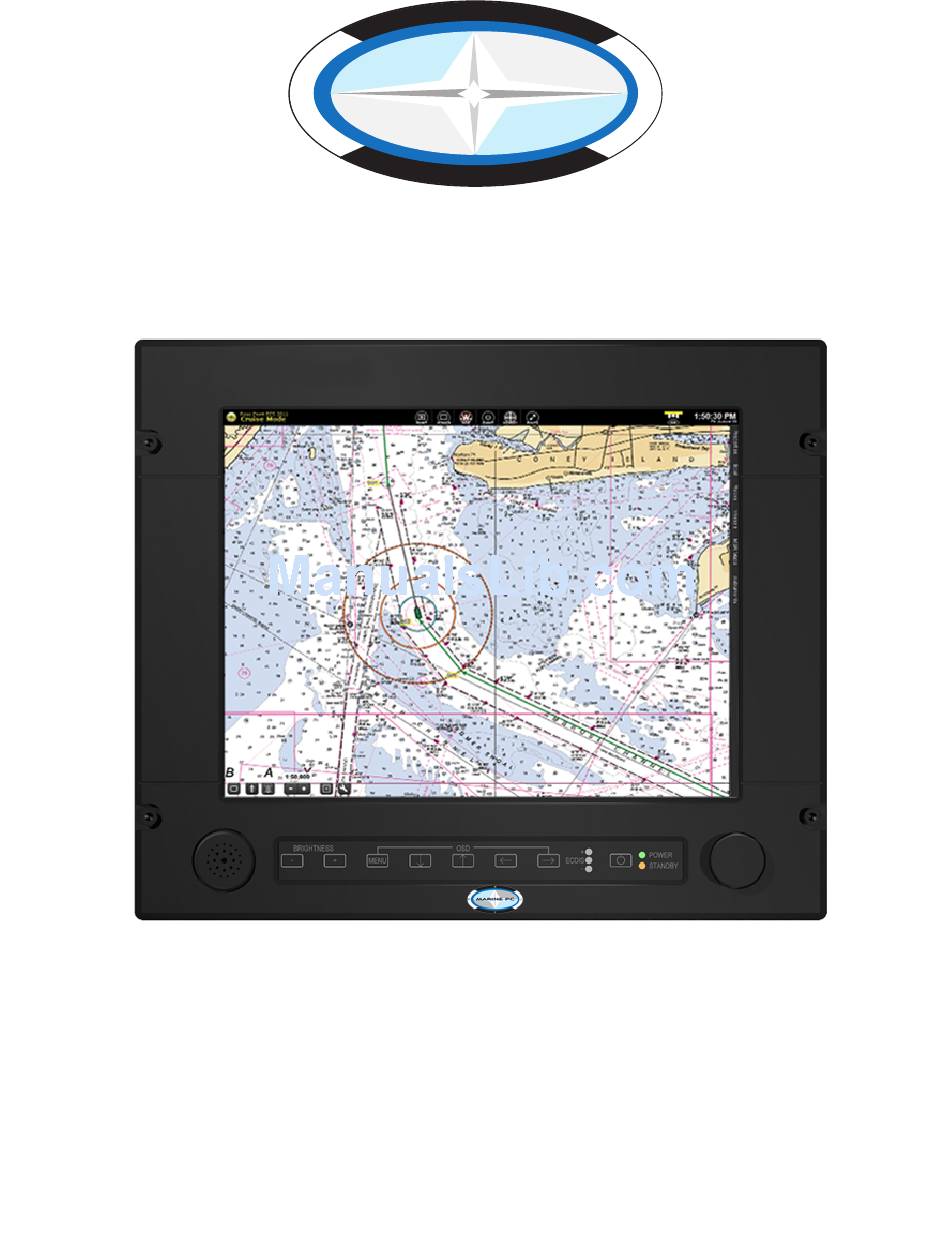

N
MARINE PC
MARINE PC
W
E
S
USER MANUAL
19" Bridge Display
Type Approved by ABS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPC-MI19 and is the answer not in the manual?

Questions and answers

Summary of Contents for Marine PC MPC-MI19

  • Page 1 MARINE PC MARINE PC USER MANUAL 19” Bridge Display Type Approved by ABS...
  • Page 2 The unit’s serial number is located on the back panel. If the unit ever requires service, please refer to this information when contacting the MarinePC Service Center. Product Serial Number Invoice Date MPC-MI19 ____ ____ ____ CAGE CODE 3W7C2 GSA Contract GS-07F-0154T...
  • Page 3 WARNING TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

  • Page 4: Table Of Contents

    INTRODUCTION.......................7 About MarinePC......................7 MarinePC Customer Service..................7 PRODUCT SAFETY PRECAUTIONS................8 ABBREVIATIONS ......................9 MPC-MI19 USER FEATURES ..................10 INSTALLATION ......................11 General Installation and Mounting Instructions............11 General Installation and Mounting....................11 Mounting Instructions ......................... 11 Cables ...........................12 DC power input connector assembly..................12 Cable Connections.......................13...
  • Page 5 APPENDIX ......................32 SHIPPED OSD CONFIGURATION ................32 Function description for de-interlacing mode AFM, TNR, MADI, LADI .....33 PIP mix table .........................33 INPUT CONNECTOR PIN ASSIGNMENTS ............34 DC Power Connection Male (24V DC IN) ..............34 RGB HD15 Signal Connections (RGB IN) ..............34 COMPOSITE BNC Connections (COMP 1) ..............35 COMPOSITE BNC Connections (COMP 2) ..............35 DVI-D VIDEO Signal Connections (DVI-D IN) ..............35...

  • Page 6: Contents

    CONTENTS SHIPPING CARTON CONTENTS Thank you for purchasing this MarinePC MPC-MI19 Display. The carton contains the items listed below: • 19 INCH MPC-MI19 Display • Mounting Accessory Kit • Product CD containing: – User’s Guide – Data Sheet ECDIS CD with Color Tables (Optional) •...

  • Page 7: Introduction

    INTRODUCTION With this purchase of this Marine Grade Bridge Display, the MPC-MI19, we welcome you to MarinePC’s family of ruggedized marine grade products. Serious mariners require serious products for their demanding applications. MarinePC has been dedicated to providing exceptional computing and display products for the maritime industry for many years.

  • Page 8: Product Safety Precautions

    PRODUCT SAFETY PRECAUTIONS Follow all warnings and instructions marked on the display.  Do not attempt to service this display yourself. Removing the display cover or back  may expose you to dangerous voltage or other risks. Refer all servicing to qualified service personnel.

  • Page 9: Abbreviations

    ABBREVIATIONS ACK – Acknowledge AMLCD – Active Matrix Liquid Crystal Display cd/m – Candelas per meter squared DVI-D – Digital Video Interface ENC – Electronic Navigational Charts ESD – Electrostatic Discharge ECDIS – Electronic Chart Display and Information Systems Hz – Hertz IAW –...

  • Page 10: Mpc-Mi19 User Features

    MPC-MI 19 DISPLAY FEATURES  Capable of displaying 16,772,166 colors: The display’s high-contrast LCD enhances color vibrancy and improves focus with no geometric distortion.  Auto Screen size adjustment: Will adjust display for optional performance and provide full screen images on even non-native formats. ...

  • Page 11: Installation

    INSTALLATION General Installation and Mounting Instructions General Installation and Mounting • Our displays are designed for various installation mountings (panel mounting, bracket mounting and VESA mounting). For details please see our installation drawings. • When mounting the display in a confined area, i.e. console, adequate ventilation must be provided to limit the maximum temperature to 55°C.

  • Page 12: Cables

    Cables Only high quality shielded signal cables should be used. Video cables should be kept as short as possible to preserve the quality of the video signal. The maximum signal cable length will depend on the signal type, resolution and frequency, in addition to the quality of the signal output of the video source.

  • Page 13: Cable Connections

    Cable Connections AC Power Input AC operating input voltage is 90-264 VAC Auto-ranging, 47-400 Hz, IEC-320 display connector. Mating power cord is available separately. DC Power Male Connector (24V DC IN) Connect the DC Power input connector to the two pin male connector and secure the cable with the two jack screws.

  • Page 14: Rgb Hd15 Female Signal Connector (Rgb In)

    RGB HD15 Female Signal Connector (RGB IN) The LCD Display RGB input can be connected to a video source using a HD15- male to HD15-male cable available separately. COMPOSITE BNC Connector (COMP 1) Connect the BNC cables (not provided) to the COMP 1 BNC connector on the back of the display as shown below.

  • Page 15: Remote Brightness Interface Male Connector (Remote Brightness)

    Remote Brightness Interface Male Connector (REMOTE BRIGHTNESS) Connect the remote brightness Cable (not provided) to the DB9 male input connector on the back of the unit. The brightness of the LCD Display can be controlled remotely through this interface connector using two push button switches for brightness up and brightness down.

  • Page 16: Compass Safe Distance

    Compass Safe Distance The following is the compass safe distance for the MPC-MI19 19 inch display: Front of unit: 200mm 0.3° deflection Rear of unit: 300mm 0.3° deflection Left side of unit: 0° deflection Right side of unit: 0° deflection...

  • Page 17: Operation

    OPERATION FRONT PANEL DISPLAY USER CONTROLS The operator front panel user controls are described below. Power ON/OFF The POWER Button is used to power the display ON and OFF. Press and hold the POWER Button for 3 to 5 seconds to power the unit ON or OFF. When power is first applied to the display it will power ON automatically.

  • Page 18: Osd Hot Keys

    OSD HOT KEYS The OSD Hot key adjustment is disabled. Hot key 1 Hot key 2 Hot key 1 function is initiated by either the up arrow or down arrow. Hot key 2 function is initiated by either the left arrow or right arrow. Pressing any of these keys will cause a small screen to appear with an adjustment bar.

  • Page 19: Front Panel Alarms

    FRONT PANEL ALARMS Buzzer – Remotely controlled The Buzzer can be activated through a remote switch or through the SCOM (RS232) interface. Remote Backlight Dimming Control NOTE: Use of a Brightness control may inhibit visibility of ECDIS information, particularly when using the night color tables Remote Backlight Buttons The backlight brightness is increased and decreased by pushing the remote Plus and Minus buttons respectively.

  • Page 20: Osd Functions

    OSD FUNCTIONS The OSD settings highlighted in green are the preferred settings. See the shipped OSD configuration in the APPENDIX. Picture : Brightness Increase/decrease panel brightness level, total: 100 steps Contrast Increase/decrease panel contrast level, total: 100 steps NOTE: Use of the Brightness or Contrast controls may inhibit visibility of ECDIS information, particularly when using the night color tables.
  • Page 21 Input : Select the input video signal MAIN Input Source: Composite 1 Composite 2*** PIP Setup PIP Source  VGA / DVI / Composite 1 / Composite 2 / Off PIP Size : Off / Small / Medium / Large / PBP 4 possible input groups that can be mixed for PIP : a) VGA b) DVI...
  • Page 22 Utilities : Setup  Auto Picture Setup : Auto adjust the image position, phase and size Auto Color Gain : Auto Color Calibration (See appendix) Wide Screen Mode detection  : Recognize the wide screen mode coming from ARGB port 1280x768 1366x768 Manual Clock...
  • Page 23 Horizontal pan : : Pan the image horizontally Vertical pan : : Pan the image vertically Reset to Defaults : Restore to default values Color Temperature  5000K R Gain : G Gain : B Gain : Reset to Defaults : Resume to the default values 6500K R Gain : G Gain :...

  • Page 24: Ecdis Operation

    ECDIS OPERATION The remote brightness pot must be disconnected for ECDIS operation. This Display has been calibrated for ECDIS operation at the factory and is provided along with an ECDIS Color Calibration CD containing the ECDIS information and color tables. Setting Controls for route monitoring It is important that the display be adapted to lighting conditions on the bridge by selecting the correct color table (Day, Dusk or Night).

  • Page 25: Grayscale Test

    The diagram is in the form of an ENC and so can be displayed using any of the three color tables. The color tables should be checked subjectively by means of the color differentiation test diagram as follows: 1. The person carrying out the test should have passed the Isihara color blindness test, or other test used to qualify bridge watch keepers, and should adapt to night viewing for 10 minutes before checking the night display.
  • Page 26 OSD ECDIS Calibration Settings The OSD Brightness Control is set to 50% The OSD Contrast Control is set to 50% The OSD Saturation Control is set to 50% The OSD Hue Control is set to zero The OSD Gamma Value is set to 1.0 The OSD Color Temperature is set to USER The OSD User Color Temperature Red Level is set to 100% The OSD User Color Temperature Green Level is set to 100%...

  • Page 27: Backlight Dimming Operation

    Backlight Dimming Operation The Backlight Brightness adjustment allows the operator to adjust the Backlight Brightness of the display from Minimum Brightness to Maximum Brightness depending on the user’s needs. The Backlight Brightness level can be adjusted by the Remote Brightness push button controls or Front Panel Brightness controls.

  • Page 28: Maintenance

    MAINTENANCE Field Maintenance should be limited to front panel adjustments, and external cleaning. Any action that requires opening the display chassis should be deferred to the depot or factory. PREVENTIVE MAINTENANCE The only periodic maintenance recommended is exterior surface cleaning when necessary. Surface Cleaning The window and exterior surfaces may be cleaned with standard non-abrasive glass cleaners applied with a soft cloth to avoid scratching the anti-reflective coating on the glass...

  • Page 29: Specifications

    SPECIFICATIONS...
  • Page 30 Resolutions Supported NOTE Resolution is based on horizontal and vertical frequencies only. ARGB (RGB IN) Mode Resolution Horizontal Vertical Sync Mode [MHz] freq freq [Hz] [KHz] T_70 720x400 28.322 31.469 70.087 Digital Separate Sync 70Hz T_70 720x400 28.322 31.469 70.087 Sync On Green 70Hz V_60...
  • Page 31 SV_75 800x600 49.500 46.875 75.000 Sync On Green 75Hz SV_75 800x600 49.500 46.875 75.000 Composite Sync 75Hz X_60 1024x768 65.000 48.363 60.004 Digital Separate Sync 60Hz X_60 1024x768 65.000 48.363 60.004 Sync On Green 60Hz X_60 1024x768 65.000 48.363 60.004 Composite Sync 60Hz X_70...

  • Page 32: Appendix

    APPENDIX SHIPPED OSD CONFIGURATION The shipped configuration is the changes to the OSD setup from a Factory Reset condition. The changes are as follows: PICTURE ASPECT SIZE – 1:1 MAIN SOURCE SET TO – DVI UTILITIES SETUP AUTO SOURCE SEEK – VGA, DVI, COMPOSITE 1, and COMPOSITE 2 set to ON, all others set to OFF.

  • Page 33: Function Description For De-Interlacing Mode Afm, Tnr, Madi, Ladi

    Function description for de-interlacing mode AFM, TNR, MADI, LADI AFM = Auto Film Mode : It is a frame based method which used for the input ODD and EVEN fields have a fixed relation between each other, such as static image, 3:2 pull down mode. If two fields are correctly merged, it can get the best quality.

  • Page 34: Input Connector Pin Assignments

    INPUT CONNECTOR PIN ASSIGNMENTS DC Power Connection Male (24V DC IN) Signal + 24 VDC 24 VDC Return RGB HD15 Signal Connections (RGB IN) Signal Signal Red Video Signal No Connection Green Video Signal Ground Blue Video Signal Ground Ground No Connection No Connection Horizontal Sync Signal...

  • Page 35: Composite Bnc Connections (Comp 1)

    COMPOSITE BNC Connections (COMP 1) Shield – Signal Return Pin 1 Video Signal COMPOSITE BNC Connections (COMP 2) Shield – Signal Return Pin 1 Video Signal DVI-D VIDEO Signal Connections (DVI-D IN) Signal Signal Signal T.M.D.S. DATA 1/3 T.M.D.S. DATA 2- T.M.D.S.

  • Page 36: Scom (Rs232) And Buzzer Control Input Connections (Scom/Buzzer)

    SCOM (RS232) and Buzzer control input Connections (SCOM/BUZZER) Signal Signal Signal Buzzer In + DTE READY TXD – Data Out SIGNAL GND RXD – Data In DCE READY Buzzer In - Remote Brightness Interface Connections (REMOTE BRIGHTNESS) Signal Signal Signal POT High BRTSW- BRTSW +...

  • Page 37: Troubleshooting Tips

    TROUBLESHOOTING TIPS If you experience trouble with your MPC-MI19 LCD display, check the following items before contacting the factory or local dealer: Trouble Troubleshooting Tip • The signal cable should be completely connected to the display card/computer. • The display card should be completely seated in the slot.

  • Page 38: Serial Communication Interface (Scom-Rs232)

    SERIAL COMMUNICATION INTERFACE (SCOM-RS232) The host interface uses RS-232 standard with the following settings: Data Rate: 9600 bits/sec Data Format: • Start Bit = 1 • Stop Bit = 1 • Data Bits = 8 • Parity Bit = None Flow Control: RTS/CTS (must be connected for proper operation) Message Format Sample:...

  • Page 39: Response Time

    Byte 8: The last byte in a message with data is an Inverse Data Checksum. Sum all of the data bytes, then take the low order eight bits of the result and invert each bit such that the sum plus IDCHK equals FF. Response Time The display must initiate a response within 150 msec after receipt of a message from the host.

  • Page 40: (Bzz) Input

    a. The OSD Brightness Control is set to 50% b. The OSD Contrast Control is set to 50% c. The OSD Saturation Control is set to 50% d. The OSD Hue Control is set to zero e. The OSD Gamma Value is set to 1.0 The OSD Color Temperature is set to USER g.

  • Page 41: Download Ecdis Vga Table From Display Command (Dnv) Input

    Acknowledge Command to Download ECDIS DVI-D Table Page: ATTN ADDR CMD0 CMD1 CMD2 IHCHK DATA DATA 0x06 0xFF 0x44 0x4E 0x44 0x40 0xE4 0x01 Data 1 DATA DATA DATA DATA DATA DATA DATA DATA IDCHK Data 2 Data3 …….. Data Data Data Data...

  • Page 42: Elapsed Time Counter Command (Etc) Input

    Elapsed Time Counter Command (ETC) INPUT: This command shall be sent to the display to read the amount of time on the Elapsed Time Counter. No data shall be sent with this command. The display shall reply to this command with an ACK attention code. The data field shall be set to a 5 byte string with the MSB byte transmitted first.

  • Page 43: Display Firmware Version (Swi) Input

    S/N configuration: YYWWMNNN YY – Last two digits in year of manufacturer WW – Week of manufacturer (01 – 52) M – Product built in main manufacturing facility NNN – Unique Three-digit number assigned at time of manufacturer Command to read unit serial number: ATTN ADDR CMD0...

  • Page 44: Request Type/Model Number (Typ) Input

    If the data checksum is valid the display shall reply to this command with an ACK attention code. The data field shall be an ASCII string, fifteen bytes maximum, to indicate the model number i.e. MPC-MI19. Command to read Type/model number:...

  • Page 45: Osd Control Command (Mcc) Input

    OSD Control Command (MCC) INPUT: This command allows remote access of the OSD settings. See following tables for valid commands. If the data checksum is valid the display shall reply to this command with an ACK attention code. The ACK response contains the original command with the data sent, if any, followed by the revised data.
  • Page 46 On Screen Display (OSD) Control Buttons Function Command Menu button 0xf7 MCC Command Example Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 0x07 0xFF 0x4D 0x43 0x43 0x01 0x25 0xF7 0x08 Acknowledge Response Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9...
  • Page 47 On Screen Display (OSD) Control Buttons Function Command Select-up button 0xfb MCC Command Example Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 0x07 0xFF 0x4D 0x43 0x43 0x01 0x25 0xFB 0x04 Acknowledge Response Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9...
  • Page 48 On Screen Display (OSD) Function Command OSD turn o 0xbd MCC Command Example Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 0x07 0xFF 0x4D 0x43 0x43 0x01 0x25 0xBD 0x42 Acknowledge Response Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 Byte #10 0x06...

  • Page 49: Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 Byte #10

    On Screen Display (OSD) Function Command OSD status enquiry 0xbb MCC Command Example Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 0x07 0xFF 0x4D 0x43 0x43 0x01 0x25 0xBB 0x44 Acknowledge Response Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 Byte #10 0x06...

  • Page 50: 0Xff 0X4D 0Xfb

    On Screen Display (OSD) Function Command 0x90, OSD H position “0”“0””0” to “0”“F”“F” | “+” | “ -” | “r” | “R” | “?” “+” = increment OSD H position “-“ = decrement OSD H position “r” or “R” = reset OSD H position to “0” “8” “0” = center of display “?”...

  • Page 51: Acknowledge Response Byte #1

    Display Function Command 0x81, Brightness control “4””E” to “B ”“2” | “+” | “ -” | “r” | “R” | “?” “4” “E” = 0 “B” “2” = 100 “+” = increment brightness control “-“ = decrement brightness control “r” or “R” = reset brightness control to “8” “0” = 50 “?”...

  • Page 52: Byte #11 Byte #12 Byte #13

    Display Function Command 0x82 0x41 or 0x82 0x61, Contrast control “1””C” to “E”“ 4” | “+” | “ -” | “r” | “R” | “?” “1” “C” = 0 “E” “4” = 100 “+” = increment contrast control “-“ = decrement contrast control “r”...
  • Page 53 Display Function Command 0x9d, GAMMA value select “0” | “1” | “2” | “r” | “R” | “?” “0” = set GAMMA value select to 1.0 “1” = set GAMMA value select to 1.6 “2” = set GAMMA value select to 2.2 “r”...
  • Page 54 Display Function Command 0x84, Hue control “5””3” to “9”“F” | “+” | “ -” | “r” | “R” | “?” “5” “3” = set hue control to -45 “9” “F” = set hue control to +45 “+” = increment hue control “-“...
  • Page 55 Display Function Command 0x83, Saturation control “0””1” to “F ”“F” | “+” | “ -” | “r” | “R” | “?” “0” “1” = set saturation control to 0 “F” “F” = set saturation control to 100 “+” = increment saturation control “-“...
  • Page 56 Display Function Command 0xb3, Color temperature select “0” | “1” | “2” | “3” | “4” | “?” “0” = 9300K “1” = 8000K “2” = 6500K “3” = 5000L “4” = User “?” = query color temperature select MCC Command Exampl e Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 Byte #10 0x07 0xFF...
  • Page 57 Display Function Command 0xb6, Blue level for selected color temperature “9””C” to “F”“F” | “+” | “ -” | “r” | “R” | “?” “9” “C” = set blue level for selected color temperature to 0 “F” “F” = set blue level for selected color temperature to 100 “+”...
  • Page 58 Display Function Command 0xb5, Green level for selected color temperature “9””C” to “F”“F” | “+” | “ -” | “r” | “R” | “?” “9” “C” = set green level for selected color temperature to 0 “F” “F” = set green level for selected color temperature to 100 “+”...
  • Page 59 Display – Color Temperature Function Command 0xb4, Red level for selected color temperature “9””C” to “F”“F” | “+” | “ -” | “r” | “R” | “?” “9” “C” = set red level for selected color temperature to 0 “F” “F” = set red level for selected color temperature to 100 “+”...
  • Page 60 Video Function Command 0x98, Input main select 0x41, 0x31 | 0x42, 0x31 | 0x46, 0x31 | 0x42, 0x32 | “?” 0x41, 0x31 = ARGB 0x42, 0x31 = Composite #1 0x46, 0x31 = DVI-D 0x42, 0x32 = Composite #2 “?” = query input main select MCC Command Example Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 Byte #10 Byte #11 0x07...
  • Page 61 Video Function Command 0xbc, Display Video Source Select “0” | “1” | “?” “0” = after switching to a new video source the name of the video source is not displayed “1” = after switching to a new video source the name of the video source is displayed “?”...
  • Page 62 Video Function Command Query video input status 0xc9 MCC Command Example Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 0x07 0xFF 0x4D 0x43 0x43 0x01 0x25 0xC9 0x36 Acknowledge Response Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 Byte #10 0x06 0xFF...
  • Page 63 Video Function Command Graphic horizontal sync frequency enquiry 0xb9 MCC Command Example Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 0x07 0xFF 0x4D 0x43 0x43 0x01 0x25 0xB9 0x46 Acknowledge Response Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 Byte #10 Byte #11 By 0x06 0xFF...
  • Page 64 Video Function Command Graphic vertical sync frequency enquiry 0xba MCC Command Example Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 0x07 0xFF 0x4D 0x43 0x43 0x01 0x25 0xBA 0x45 Acknowledge Response Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 Byte #10 0x06 0xFF...
  • Page 65 Video - Composite Function Command 0x9b, Video System “0” | “1” | “2” | “3” | “4” | “5” | “6” | “7” | “8” | “9” | “r” | “R” | “S” | “s” | “?” “0” = Auto “1”...
  • Page 66 Picture In Picture (PIP) Function Command 0xa7, PIP source select 0x41, 0x31 | 0x42, 0x31 | 0x46, 0x31 | 0x42, 0x32 | “?” 0x41, 0x31 = ARGB 0x42, 0x31 = Composite #1 0x46, 0x31 = DVI-D 0x42, 0x32 = Composite #2 “?”...
  • Page 67 Picture In Picture (PIP) Function Command 0xa6, PIP window size select “0””0” | “0”“1” | “0””2” | “0””3” | “?” “0” “0” = PIP window o “0” “1” = small PIP window “0” “2” = medium PIP window “0” “3” = large PIP window “?”...
  • Page 68 Picture In Picture (PIP) Function Command 0xa2, PIP brightness control “4””E” to “B”“2” | “+” | “ -” | “r” | “R” | “?” “4” “E” = 0 “B” “2” = 100 “+” = increment PIP brightness control “-“ = decrement PIP brightness control “r”...
  • Page 69 Picture In Picture (PIP) Function Command 0xa3, PIP contrast control “1””C” to “E”“4” | “+” | “ -” | “r” | “R” | “?” “1” “C” = 0 “E” “4” = 100 “+” = increment PIP contrast cont r ol “-“...
  • Page 70 Picture In Picture (PIP) Function Command 0xa4, PIP H position “0”“0””0” to “0”“6”“4” | “+” | “ -” | “r” | “R” | “?” “+” = increment PIP H position “-“ = decrement PIP H position “r” or “R” = reset PIP H position to “0” “5” “5” = upper right corner of display “?”...
  • Page 71 Picture In Picture (PIP) Function Command 0xa5, PIP V position “0”“0””0” to “0”“6”“4” | “+” | “ -” | “r” | “R” | “?” “+” = increment PIP V position “-“ = decrement PIP V position “r” or “R” = reset PIP V position to “0” “1” “4” = upper right corner of display “?”...
  • Page 72 Miscellaneous Function Command 0x8c, Scaling Mode “0” | “1” | “2” | “9” | “A” | “B” | “C” | “D” |“?” “0” = 1:1 “1” = ll screen “2” = ll to aspect ratio “9” = 4:3 “A” = 16:9 “B”...
  • Page 73 Miscellaneous Function Command 0x8e, Set display orientation “0” | “1” | “2” | “3” | “r” | “R” | “?” “0” = normal “1” = vertical inverse “2” = horizontal inverse “3” = inverted “r” or “R” = reset displays orientation to “0” = normal “?”...
  • Page 74 Miscellaneous Function Command 0xc8, Soft Power On/O “0” | “1” | “?” “0” = turn o the display backlight “1” = turn on the display backlight “?” = query soft power on/o MCC Command Example Byte #1 Byte #2 Byte #3 Byte #4 Byte #5 Byte #6 Byte #7 Byte #8 Byte #9 Byte #10 0x07 0xFF 0x4D...

  • Page 75: Input Errors And Responses

    INPUT ERRORS AND RESPONSES ADDR (Byte 1) Error Display disregards any message where the second byte is not FF. No response required. IHCHK (Byte 6) Error If the IHCHK is incorrect, the display should respond with a NAK message and no data field.
  • Page 76 Request Display Model number (TYP) response: ATTN ADDR CMD0 CMD1 CMD2 IHCHK 0x15 0xFF 0x54 0x59 0x50 0x00 0xEE Brightness Command (BRI) response: ATTN ADDR CMD0 CMD1 CMD2 IHCHK DATA IDCHK 0x15 0xFF 0x42 0x52 0x49 0x01 0x0D 0xxx 0xyy xx = last valid minimum BRT data (00 –...

  • Page 77: Data (Byte 7) Error

    0x15 0xFF 0x4D 0x43 0x43 0x00 0x18 Temperature Sensor (TMP) response: ATTN ADDR CMD0 CMD1 CMD2 IHCHK DATA IDCHK 0x15 0xFF 0x54 0x4D 0x50 0x01 0xF9 0x52 0xAD DATA (Byte 7) Error If the data byte is something other than 00 or FF, the monitor should respond with a BZZ NAK as shown below.

  • Page 78: Hex, Dec, Ascii Conversion Table

    Hex, DEC, ASCII conversion table Decimal Character 0x00 NULL (Null character) 0x01 (Start of Header) 0x02 (Start of Text) 0x03 (End of Text) 0x04 (End of Transmission) 0x05 (Enquiry) 0x06 (Acknowledgement) 0x07 (Bell) 0x08 (Backspace) 0x09 (Horizontal Tab) 0x0A (Line feed) 0x0B (Vertical Tab) 0x0C...
  • Page 79 0x2A (Asterisk) 0x2B (Plus sign) 0x2C (Comma) 0x2D (Hyphen) 0x2E (Full stop , dot) 0x2F (Slash) 0x30 (number zero) 0x31 (number one) 0x32 (number two) 0x33 (number three) 0x34 (number four) 0x35 (number five) 0x36 (number six) 0x37 (number seven) 0x38 (number eight) 0x39...
  • Page 80 0x56 (Capital V ) 0x57 (Capital W ) 0x58 (Capital X ) 0x59 (Capital Y ) 0x5A (Capital Z ) 0x5B (square brackets or box brackets) 0x5C (Backslash) 0x5D (square brackets or box brackets) 0x5E (Caret or circumflex accent) 0x5F (underscore, under strike, underbar or low line) 0x60 (Grave accent)
  • Page 81 0x81 ü (letter "u" with umlaut or diaeresis ; "u-umlaut") 0x82 é (letter "e" with acute accent or "e-acute") 0x83 â (letter "a" with circumflex accent or "a-circumflex") 0x84 ä (letter "a" with umlaut or diaeresis ; "a-umlaut") 0x85 à (letter "a"...
  • Page 82 0xAD ¡ (Inverted exclamation marks) 0xAE « (Guillemets or angle quotes) 0xAF » (Guillemets or angle quotes) 0xB0 ░ 0xB1 ▒ 0xB2 ▓ 0xB3 │ (Box drawing character) 0xB4 ┤ (Box drawing character) 0xB5 Á (Capital letter "A" with acute accent or "A-acute") 0xB6 Â...
  • Page 83 0xD8 Ï (letter "I" with umlaut or diaeresis ; "I-umlaut") 0xD9 ┘ (Box drawing character) 0xDA ┌ (Box drawing character) 0xDB █ (Block) 0xDC ▄ 0xDD ¦ (vertical broken bar ) 0xDE Ì (letter "I" with grave accent) 0xDF ▀ 0xE0 Ó...

  • Page 84: Display Dimensions

    MPC-MI19 DISPLAY DIMENSIONS For clarity, displays are shown without signal and power cables. MARINE PC PART NO. MPC-MI19 MPC-MI19 19” ABS Type Approved LCD Display 3W7C2...
  • Page 85 DISPLAY DIMENSIONS CONT. MARINE PC MPC-MI19 19” ABS Type Approved LCD Display 3W7C2...
