Summary of Contents for Tzone TZ-RD05
- Page 1 TZ-RD05 (TAG06B) ---User Manual...
-
Page 2: Product Overview

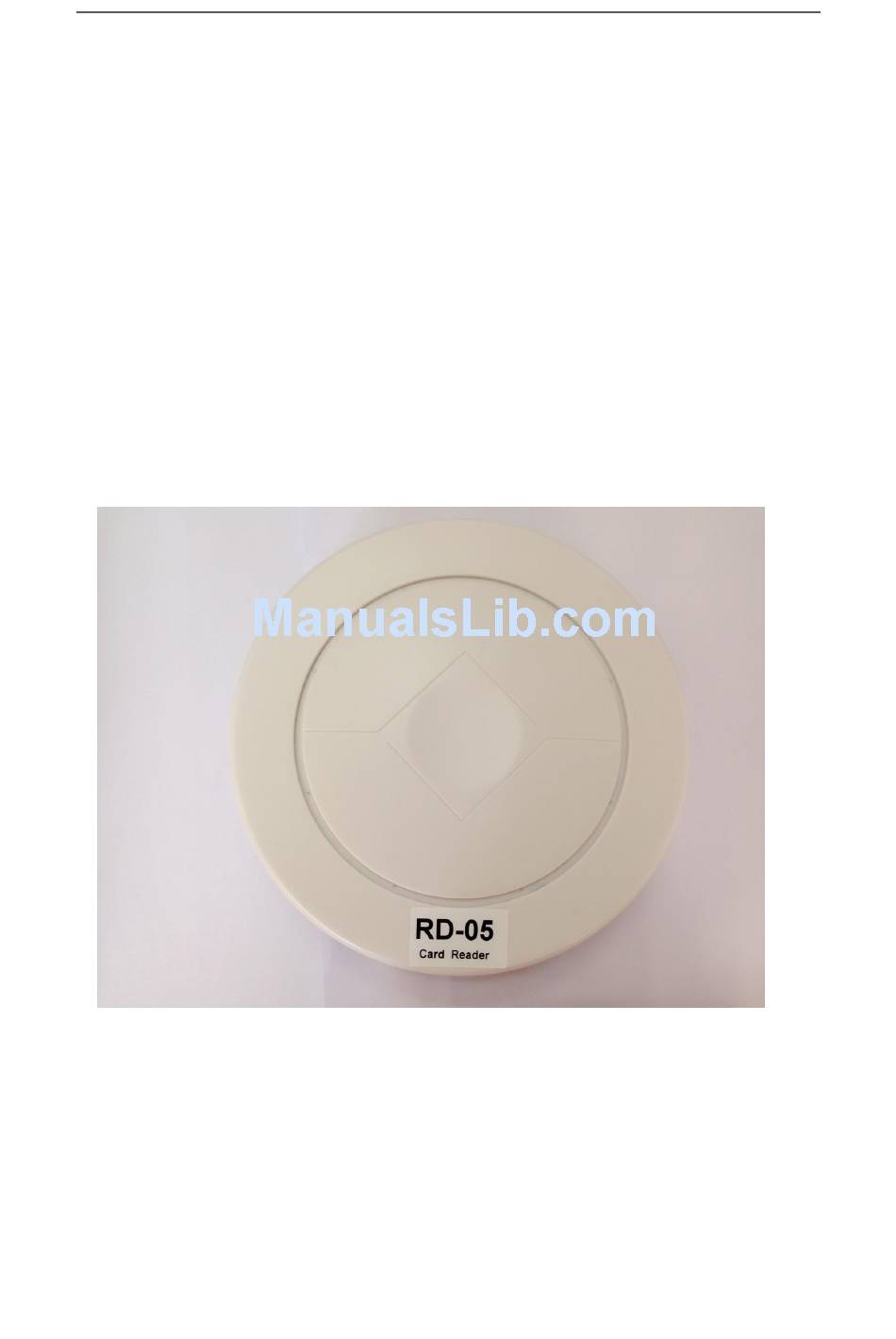

1 Product Overview TZ-RD05 is a card reader that designed to read all kinds of RFID tags in the long range of the radio frequency,using the universal ISM 2.4G ultra low power microwave frequency band remote identification communication equipment. TZ-Tag06B tag... -
Page 3: Internal Interfaces
Operating tem. -40°C~+60°C Operating hum. 5% ~ 95% (non-condensing) IP level IP55 Dimension Cylindrical, diameter 170mm,high 40mm Installation method Suction top mounting Extra interfaces: LAN light LAN connecting indicator light Use to connecting the net Use specially designed USB cable connect to PC Signal Flash one time when receive on Tag Power supply... - Page 4 4 RS485/LAN Data Protocol 4.1 Contains the TZ-RD05 ID data format Begin character (7E) + Data length (1byte) + TZ-RD05 ID(3bytes) + Tag ID (4byte) + Tag state (1byte) + battery voltage (2byte) + temperature (2byte) + Humidity (1byte) + Check code(1byte) + end code (03) 4.2 Doesn’t Contains the TZ-RD01 ID data format...
-
Page 5: Prepare For Configuration
RSSI: 1 byte,unit:-dBm; Check code: 1 byte, and the accumulation of all the data before; End code: 0x03. The data sample: 7E0D12345662160179000E1000EC4F7203 Begin character Data length 123456 TZ-RD05 ID 62160179 Tag ID TAG status 0E10 Battery voltage 00EC Temperature... - Page 6 At first connect the machine and router with the cable Then input 192.168.1.1(base on your gateway) Input User name and password User name: admin Password: admin Click on the right—DHCP sever--- Client list—find the RD05 IP, and then sign...
- Page 7 Select--- none, remember the IP then open the IE and input the IP Enter the account number “admin”, password “admin”. Ours Server IP :120.25.96.177 Port :54931 Baud rate :9600 According to icon configuration, the default gateway is 192.168.1.1, if the gateway is different, the corresponding configuration also need to change.
- Page 8 checking way. Device manager---Ports (COM&LPT) ---choose your COM---right-hand button---Update Driver Software---Browse my computer for driver software---pick from a list from device drivers---choose 2009 version. As shown in figure 5-3, I have chosen the version 2009. Figure 5-1 PL2303 driver installing Figure 5-2 PL2303 Checking driver...
- Page 9 Figure 5-3 PL2303 choose version 2009/7/17 5.3 Install sscom32 Please download from the Internet or contact sales download sscom32 serial port tools, and installed on the computer. 5.4 Configure sscom32 After completing the above steps will USB configure cable inserted into the computer USB port, and then open the sscom32, choose the corresponding COM port, baud rate is 115200, data bits is 8, stop bit is 1, parity None, flow control None and then click open the serial port.
- Page 10 #DQ make machine to exit the configuration mode, when the reader receives the TAG information, RS232 and USB port can output the corresponding information Table 5.1 TZ-RD05 unify commands Instruction Format...
- Page 11 default, 0 will disable this function X:6bits, range [A-F] and Set ID *01,X# [0-9] Set the serial data *04,X# 0-No,default contain RD05’s ID 1-Yes Set the print mode *06,X# 0-hex (default) 1-ASCII A:baud,[600,128000] 115200 (default) ; B:digital bits 0-8bit(default) , 1-9bit;...
- Page 12 Go to factory setting Restart the device Out configuration mode 6 Update TZ-RD05 firmware 1) Install USB cable driver A. At the first, install the Driver for “USB Converter” B. Connect the RD05 unit to PC through USB cable, View the com port that the...
- Page 13 2) Turn on RD05 device 3) Build a New Hyper terminal connect, fill the name, example as IAP_DL 4）Choose the Com Port that the USB Cable used...
- Page 14 5) Setup all the option as shown in the following picture 6) Into Configure Mode...
- Page 15 7) Turn Off RD05 device ①Connect BT_S and GND and Turn on Power , Device all indicator will keep light at same time, (all of the device’s indicator will be keep light for a moment)Hyper terminal will display the interface like the picture follow ②...
- Page 16 ③ Then choose Send file(Send-> Send File) at soon as possible, because the update mode will keep for 92 seconds, if out of this time update will not be process succeed. 8) Choose the firmware that you want to Update； Protocol Choose: Ymodem...
- Page 17 9) Press Send button, Will display a New Windows that show the update process. 10) When finish update, will appear "Programming Completed Successfully!", then press Keypad 2.
- Page 18 11) Turn On RD05 again.(at this times the firmware will load the parameter to the unit ). Then the firmware updates finished.
