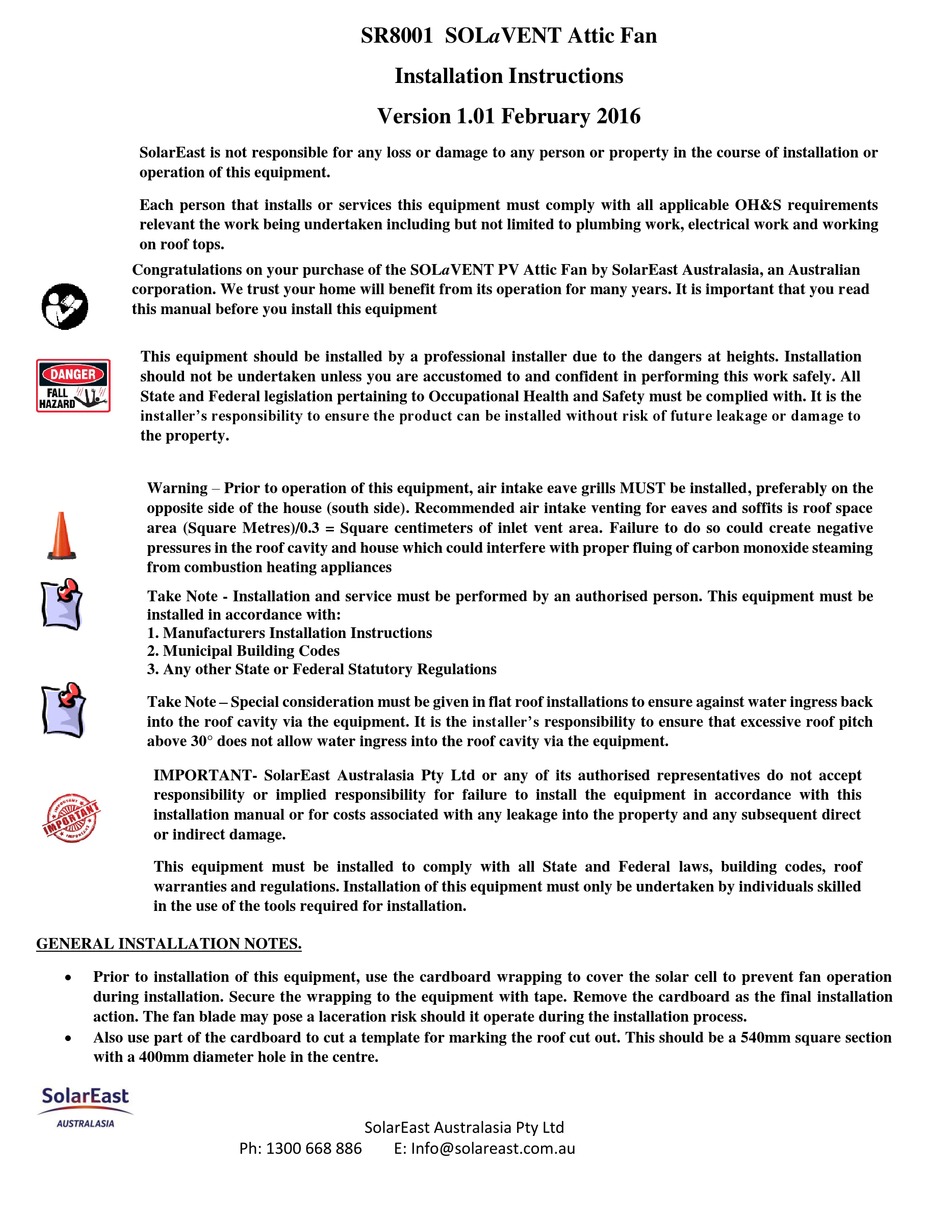

SOLaVent SR8001 Installation Instructions

SolarEast is not responsible for any loss or damage to any person or property in the course of installation or
operation of this equipment.
Each person that installs or services this equipment must comply with all applicable OH&S requirements
relevant the work being undertaken including but not limited to plumbing work, electrical work and working
on roof tops.
Congratulations on your purchase of the SOLaVENT PV Attic Fan by SolarEast Australasia, an Australian
corporation. We trust your home will benefit from its operation for many years. It is important that you read
this manual before you install this equipment
This equipment should be installed by a professional installer due to the dangers at heights. Installation
should not be undertaken unless you are accustomed to and confident in performing this work safely. All
State and Federal legislation pertaining to Occupational Health and Safety must be complied with. It is the
installer's responsibility to ensure the product can be installed without risk of future leakage or damage to
the property.
Warning – Prior to operation of this equipment, air intake eave grills MUST be installed, preferably on the
opposite side of the house (south side). Recommended air intake venting for eaves and soffits is roof space
area (Square Metres)/0.3 = Square centimeters of inlet vent area. Failure to do so could create negative
pressures in the roof cavity and house which could interfere with proper fluing of carbon monoxide steaming
from combustion heating appliances
Take Note - Installation and service must be performed by an authorised person. This equipment must be
installed in accordance with:
1. Manufacturers Installation Instructions
2. Municipal Building Codes
3. Any other State or Federal Statutory Regulations
Take Note – Special consideration must be given in flat roof installations to ensure against water ingress back
into the roof cavity via the equipment. It is the installer's responsibility to ensure that excessive roof pitch
above 30° does not allow water ingress into the roof cavity via the equipment.
IMPORTANT- SolarEast Australasia Pty Ltd or any of its authorised representatives do not accept
responsibility or implied responsibility for failure to install the equipment in accordance with this
installation manual or for costs associated with any leakage into the property and any subsequent direct
or indirect damage.
This equipment must be installed to comply with all State and Federal laws, building codes, roof
warranties and regulations. Installation of this equipment must only be undertaken by individuals skilled
in the use of the tools required for installation.

GENERAL INSTALLATION NOTES.


Prior to installation of this equipment, use the cardboard wrapping to cover the solar cell to prevent fan operation
during installation. Secure the wrapping to the equipment with tape. Remove the cardboard as the final installation
action. The fan blade may pose a laceration risk should it operate during the installation process.

Also use part of the cardboard to cut a template for marking the roof cut out. This should be a 540mm square section
with a 400mm diameter hole in the centre.
SR8001 SOLaVENT Attic Fan

Installation Instructions

Version 1.01 February 2016
SolarEast Australasia Pty Ltd
Ph: 1300 668 886 E: Info@solareast.com.au
