www.blueskytech.ca
User Manuel
For Model B.Sky1001D
In Car Communication Kit
IC
Blue Sky Tech Inc.
Bleu Ciel T
ech Inc.
Model No.: 1001D
Model No.: 1001A
IC:7464A101C
IC: 7464A1001B
In Car Communication Kit, Wireless Back-Up
Camera System, And Mp3 Wireless Media Player.
CONGRATULATIONS
This BLUESKY 1001D unit when used as described will give you years of dependable service in
your car, truck, minivan or RV. We have taken numerous measures in design and quality control
to ensure that your product arrives in top condition and will perform to your satisfaction.
SAFETY FIRST!
Completely read and understand all the instructions in this manual before using the BLUESKY
1001D while operating a motor vehicle. All wireless devices are susceptible to interference or
may cause interference, which could affect usability. If you are in an area where cell phone
use is prohibited, or if it causes any interference or danger, switch your cell phone and the
BLUESKY 1001D to OFF mode.
When re-fuelling always turn off your cell phone and the BLUESKY 1001D. Do not use them
near any fuel or chemicals. When pairing to any other devices, read and follow all instructions
and safety guidelines provided by the manufacturer of the device. Do not pair it with
incompatible devices.
Features & Specifications
Features:
-
Super light and thin. The BLUESKY 1001D is the thinnest and lightest
Bluetooth rear view mirror car kit with rear view camera on the market.
-
Discreet. The BLUESKY 1001D blends into your car's interior whilst providing
wireless handsfree functionality and monitoring.
-
High quality 3.5inch TFT LCD color display – for caller ID and name.
-
Wireless back up camera, visual angle 120 degrees, waterproof design, and
CMOS color camera.
-
Report caller (voice to text) on incoming calls.
-
Answer/end/reject a call
-
Voice dial, redial and call waiting
-
Full Duplex/Echo cancellation & noise suppression
-
DSP (Digital Signal Processing) technology
-
Display caller ID and English name
-
Display outgoing call number
-
Store up to 20 call records including both incoming and
outgoing call
-
Download phonebook automatically
-
Store up to 600 contacts which you can import from your cellular phone.
-
Support playing Hi-Fi stereo music from digital music file via Bluetooth
-
Two built-in microphones and two built-in speakers. The BLUESKY 1001D
offers the most powerful and quality sound on the market.
-
FM modulation to transfer the voice to the car radio on any FM station
range : (FM 87.5 to FM 108.0 MHZ)
-
Wireless ear piece for private conversations
Specifications:
-
Bluetooth Version 2.1
-
Support files : HSP/HFP1.5, A2DP, OPP
-
Charging input voltage : DC 5V, 1A
-
Charging time : within 3 hours
-
Talk time : up to 15 hours
-
Standby time : up to 300 hours
-
Monitoring time : Up to 3 hours
-
Camera range : 100 meters

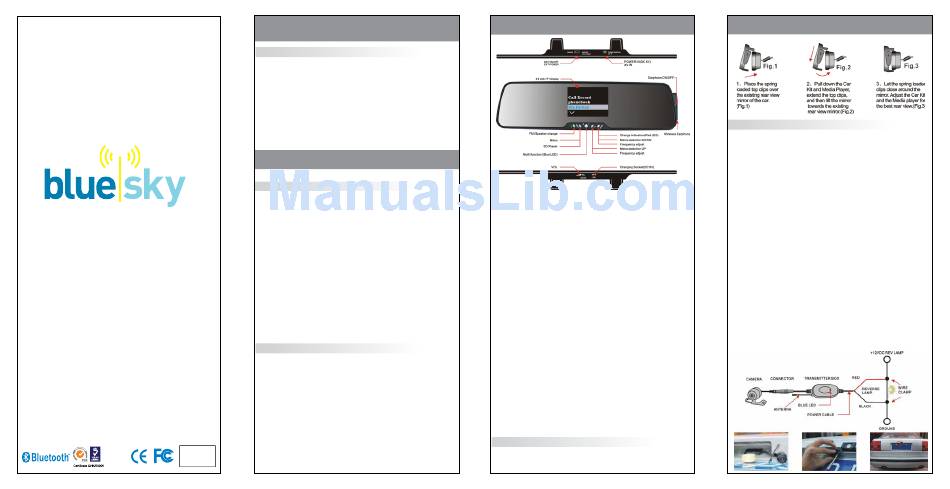

Controls

1- Button (Park)
a. Short press : Implement parking monitoring function in manual parking mode.
b. Long press : Switch between PARK mode and AVIN mode
2- Button (Menu)
a. Short press : Enter/exit MENU
b. Long press : Switch between speaker mode and FM mode
3- Button (MF)
a. Short press : Disconnected mode: connect last connected mobile phone
b. Short press : Connected mode: Voice dial
c. Short press : Call mode: Answer or end a call
d. Short press : Menu mode: Implement menu item function
e. Double press : Connected mode: Redial last dialed number
f. Double press : Call mode: Reject an incoming call
g. Long press : Call mode: Put a call on hold and answer a waiting call
4- Button (Up)
a. Short press – View auto mode and increase frequency by 0.1 MHZ when
adjusting FM frequency.
b. Long press : Increase frequency by 1 MHZ when adjusting FM frequency.
5- Button (Down)
a. Short press : View Bluetooth car kit work state
b. Long press : Decrease frequency by 1MHZ when adjusting FM frequency
*Note that in order to change the FM frequency your cellular phone must be paired and in
communication.
6- External Power And Av Input Socket
(Power In (DC 5V 1A), Av In).
7- On/Off Switch (Bat On/Off, Ext-Power).
8- 3.5 Inch Tft Display
9- Charging Socket (DC 5V 1A)
10- Volume Control (Vol)
11- Wireless Earphone
12- Earphone On/Off
Indicator Light
Blue light : Bluetooth Car Kit work state (Connected / Active / Standby)
Red light : Charging
Green light : The parking monitor work state (Active / Standby)

Installation

Main Unit Installation

Camera Installation

Option 1 :
The reverse light sockets on most vehicles have two wires connected to them. Usually the negative
wire is black and the positive wire is a colored wired. If you are uncertain about the wiring, you can
use a 12 volt multimeter available at most auto parts stores to determine which is the positive wire.
Follow the manufacturer's instructions for the safe use of the multimeter. In this option you must
CUT the camera power wire just before the USB ending with a regular household pair of scissors.
Split the two coloured wires and expose the metal wires in order to connect to the reverse light
sockets of your vehicle. Connect the wires from the camera to the reverse light sockets.
You can also ask most auto repair shops or your car dealership to install the camera for you. It is a
very quick and simple installation. With this option your camera will automatically power up when
you go into reverse. Note that you can connect the coloured wires to another power source other
than the reverse light sockets but in this case the camera will not power automatically when you go
into reverse. You can only turn on the camera manually by pressing the "Park" button.
Option 2 :
The other option is for you to simply plug the power of the camera using the supplied USB and
POWER ADAPTER which comes with the BLUESKY 1001D. In this case you do not need to CUT
the USB head and plug the camera power into the reverse light sockets. You simply plug in the
power adapter in a power source near the rear or in the front of your vehicle. This method is the
simplest "plug and play method" to power up the camera. With this option, to activate the camera
and view the rear of the vehicle in the BLUESKY 1001D screen you must press the "park" button
and press again to disactivate. Note that it is not recommended to activate the camera at the same
time as the FM transmitter as the FM transmitter can cause interference in the quality of the video.
You can however view the camera and make a phone call via Bluetooth via the internal speakers of
the BLUESKY 1001D.
To secure the camera, you can use the adhesive to place the camera in the desired position on the
back of the car. If you wish to increase the adhesive hold you can add more super adhesive glue
suitable for metal which you can purchase at your local hardware store. Otherwise the adhesive
supplied in the BLUESKY box is suitable. You will also find 2 small screws which can easily be
fastened to the camera directly into the back of the vehicle. These 2 small screws are optional
and can offer a more permanent fastening using a simple household screw driver. The wire of the
camera must pass from the outside into the vehicle. One way to accomplish this is to drill a small
hole (usually behind the license plate or near the license plate or in a discreet location of the rear of
the vehicle) in order to allow the power wire to pass through.
The camera itself will transmit the video via wireless transmission.
