Han Seung HTS-CT10 Operating Manual

Operating Manual

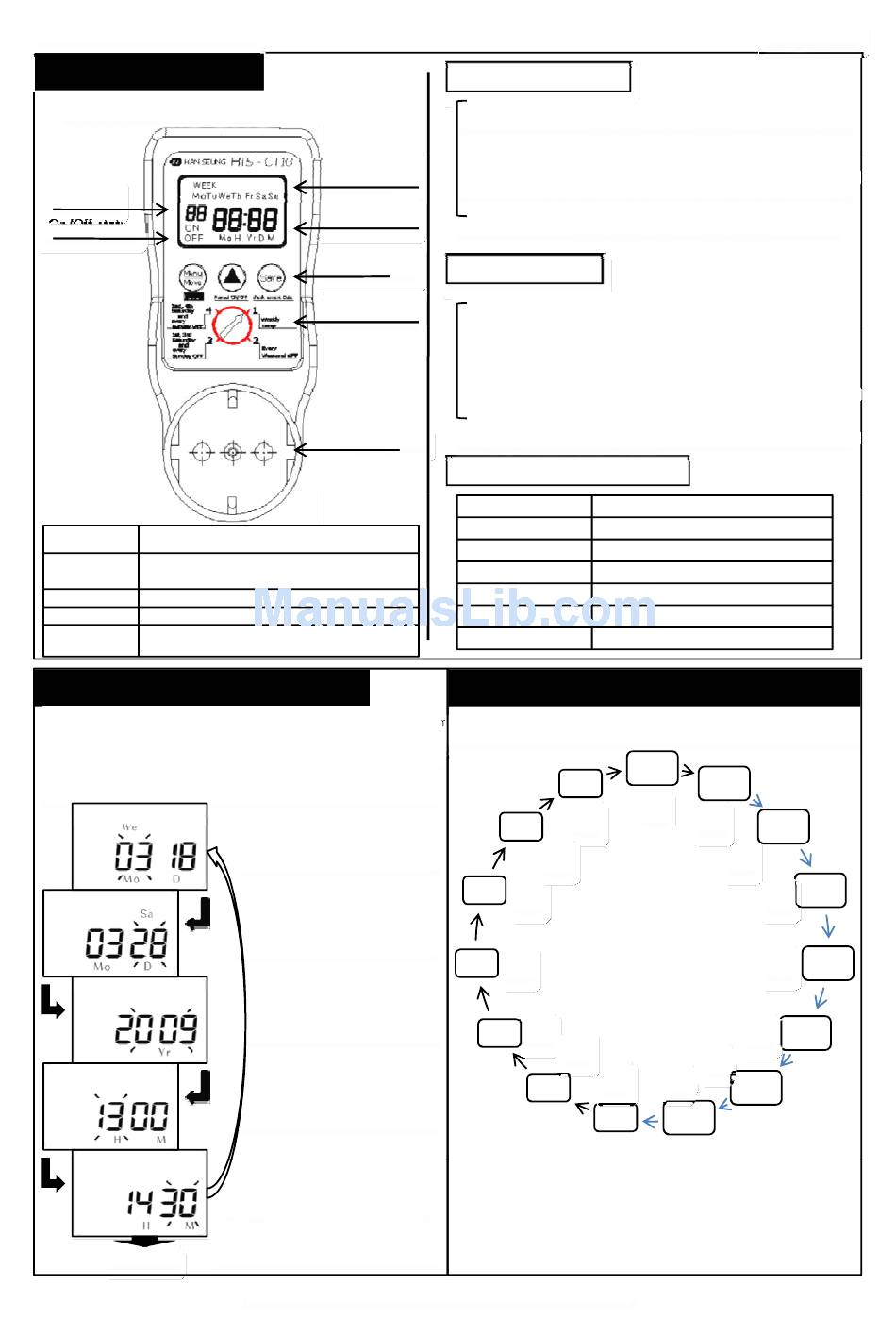

1.Operating Manual
Model : HTS-CT10
Mode No.
On/Off status
Manufacturer HAN SEUNG AUTOMATIC
293-3, HYOMOK2 DONG GU, DAEGU,
Main Office
SOUTH KOREA
A/S TEL +82-53-745-4720
Webpage http://www.hsa2000.co.kr
18 months from manufactured date
Warranty
(Repairs caused by customer negligence are charged)

2.Current Date/Time Setting

: Mode is changed to "Current Date/Time" setting when the timer
is plugged into the socket where electricity is supplied.
(The display changes to initial display after no button operation for 1 minute)
☞Data and internal clock is maintained by the power
shortage recovery function.
Initialize
Day of week
Date/Time
Function
Buttons
Select Switch
PLUG-IN
Month
①Set with "▲"and
press "Menu/Move" once
Date
②Set with "▲"and
press "Menu/Move" once
Year
③Set with "▲" and
press "Menu/Move" once
Hour
④Set with "▲"and
press "Menu/Move" once
Minute
⑤Set with "▲"and
press "Menu/Move" once
※Press "Menu/Move" to set
the Current Date/Time again.
◆Make sure to read the Operating Manual before use◆
Function Buttons
1."Menu/Move":
Mode change and move cursor to right.
(Data reset after 5 seconds of continuous press)
2."▲ " :
NO. Increment
☞ Manual "ON" will be set to "OFF" at next OFF time and
Manual "OFF" will be set to "ON" at next ON time.
3."Save ":
Save input data.
(check current Date at initial display)
Select Switch
1)Weekly Timer :
Various days of week with ON, OFF time set for
up 10 times of ON/OFF in a day up 10 times of ON/OFF in a day
2)Every Weekend OFF:
Every weekend OFF function that does not require
any day settings with ON, OFF time set for up 10 times of ON/OFF in a day
3)
1 st , 3 rd Saturday and every Sunday OFF
Sunday OFF function without any day of week settings with ON, OFF time set
for up 10 times of ON/OFF in a day
4)
2 nd , 4 th Saturday and every Sunday OFF
Sunday OFF function without any day of week settings with ON, OFF time set
for up 10 times of ON/OFF in a day

Product Specifications

Nominal Voltage AC220V/60HZ
Load Capacity
resistance load 10A(inductive load:2A)
Minimum time set
By Minutes
Operation temperature -10℃ ~ 60℃
0% ~ 80%
Humidity range
Output type
RELAY contact type
Dimensions
54(W)x122(L)x81(H)mm

3.Day of Week Changing Sequence

: When changing day of week press "▲" to move clockwise
Sun
⑮ ⑮
Sat Sat
⑭
Fri ⑬
⑫
Thu
⑪
Wed
⑩
⑨
Tue
mon
Page : 1/2
(Manual ON/OFF at initial display)
:
1 st , 3 rd Saturday and every
:
2 nd , 4 th Saturday and every
Mon~
Mon~
Sun
Sat
①
② ②
Mon~
Fri
③
Mon~
④
⑤
⑥ Sat~
Sun
⑦
⑧
Mon,
Wed,Fri
Tue,
Thu,Sat
Wed
Thu~
Sat
