Skookum SK-LCD User Manual

6 Updating the SK-LCD's Firmware
New firmware revs can found at the Skookum Robotics Support webpage.
To update the unit's firmware with an SK360, connect it to your PC using the
USB interface dongle. Then start the setup software on your PC, go to the
menu item Firmware, and select the firmware's hex file.
To update the unit's firmware with an SK720, connect it to your SK720, then
connect the SK720 to your PC. Then start the setup software on your PC, go to
the menu item Utility->LCD Terminal Update, and select the firmware file.
The update will take about 2 minutes, and LCD will be blank during the
update.
7 Warranty and Technical Support
Skookum Robotics Ltd warrants this product against any defects in materials
or workmanship for a period of 90 days from the purchase date. This warranty
is limited to the original purchaser. In the event of a malfunction, Skookum
Robotics will repair or replace the product to meet its standard operating
condition. This warranty does not apply in cases where the product has been
overheated, electrically shorted, subject to crash damage, otherwise abused, or
had unauthorized repair attempts.
UNDER NO CIRCUMSTANCES DOES SKOOKUM ROBOTICS ACCEPT
LIABILITY FOR INCIDENTAL DAMAGE OR INJURIES RESULTING
FROM THE OPERATION OF THE SK-LCD OR OTHER PRODUCTS.
Skookum Robotics will provide customers with technical assistance by email
free of charge. If the unit has malfunctioned and the 90-day warranty period
has expired, we will attempt repair, and discuss the cost of possible repairs
with the owner, for the cost of postage.
If you wish to return the unit or related product, please write "WARRANTY
RETURN" clearly on the shipping box, and mail it to the address given below.
Manufactured in Canada by Skookum Robotics, Ltd
Email: info@skookumrobotics.com
Website: www.skookumrobotics.com
Return Mail: PO Box 46912 Stn D
Vancouver, BC
V6J 5M4 Canada
©2010 Skookum Robotics, Ltd
Rev 1.16
SK-LCD
1 Intro

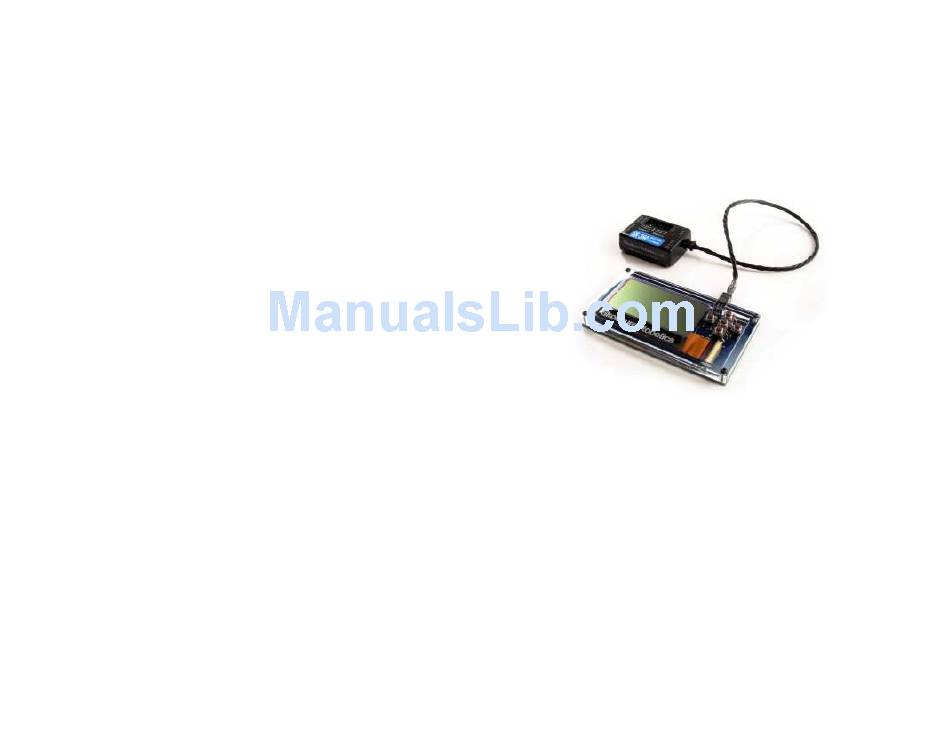

The SK-LCD Field Terminal allows you to set up your SK360 or SK720
Digital Flybar at the field without a laptop computer. It will give you access to
all the functions of the PC-based GUI, except upgrading firmware.
Features include:
Large format display
•
Offline editing of setups
•
• Save and load 25 setups for the SK360 or SK720, with the terminal's
internal flash memory
No batteries are required
•
Can transfer setups to and from the normal PC-based setup software
•
The SK-LCD's firmware can be upgraded
•
4
Compatible with future Skookum Robotics products
•
Field
Terminal
User Manual
