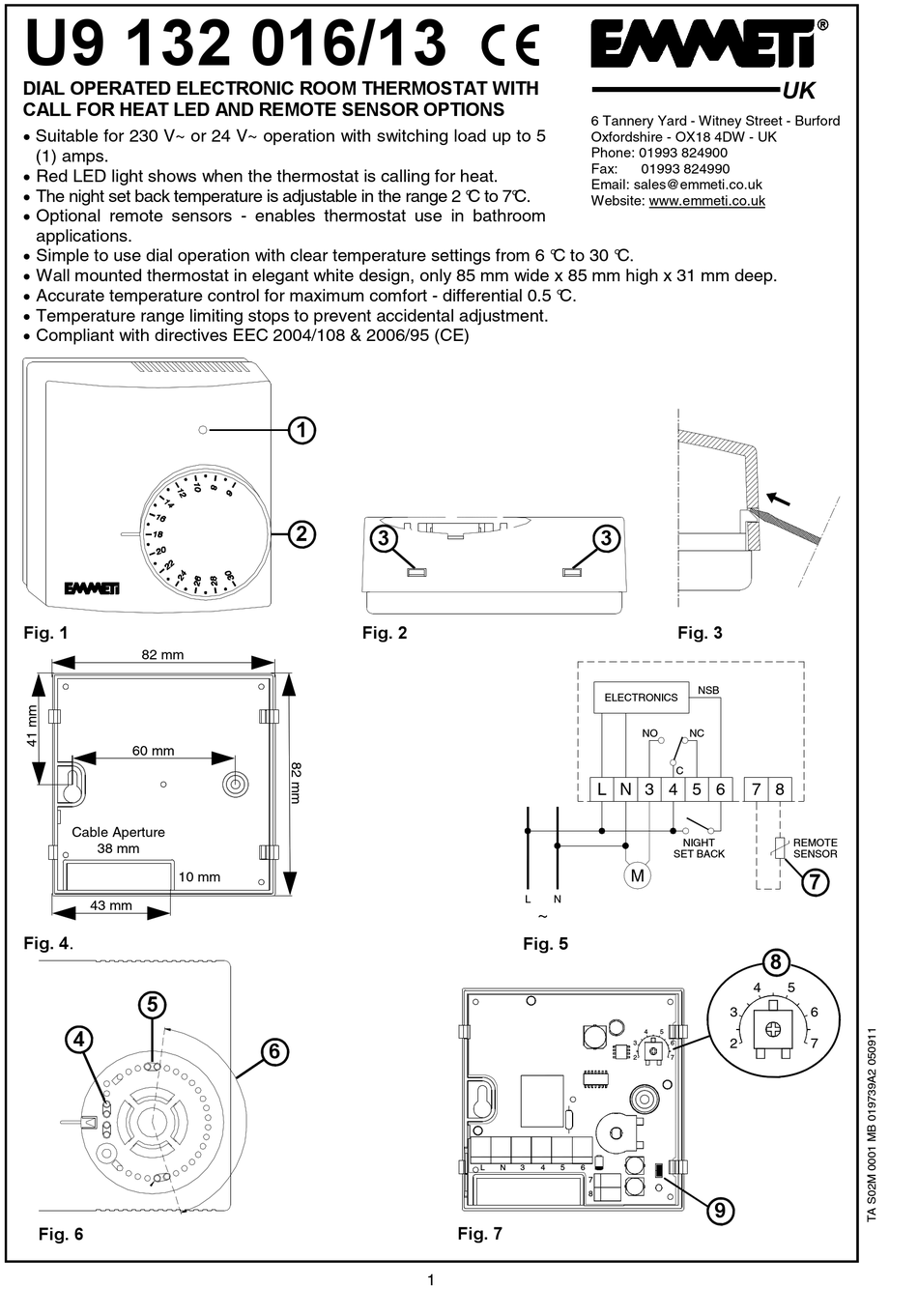

Omnie IG OLC 02 User Manual

OMNIE
U9 132 016/13
IG OLC 02
DIAL OPERATED ELECTRONIC ROOM THERMOSTAT WITH
CALL FOR HEAT LED AND REMOTE SENSOR OPTIONS
• Suitable for 230 V~ or 24 V~ operation with switching load up to 5
(1) amps.
Red LED light shows when the thermostat is calling for heat.
•
• The night set back temperature is adjustable in the range 2 ° C to 7° C.
• Optional remote sensors - enables thermostat use in bathroom
applications.
• Simple to use dial operation with clear temperature settings from 6 ° C to 30 ° C.
• Wall mounted thermostat in elegant white design, only 85 mm wide x 85 mm high x 31 mm deep.
• Accurate temperature control for maximum comfort - differential 0.5 ° C.
• Temperature range limiting stops to prevent accidental adjustment.
• Compliant with directives EEC 2004/108 & 2006/95 (CE)
Fig. 1
82 mm
60 mm
Cable Aperture
38 mm
43 mm
Fig. 4.
5
4
Fig. 6
1
2
10 mm
6
       
3
Fig. 2
L
230V~
Fig. 5
L N 3
Fig. 7
1
6 Tannery Yard - Witney Street - Burford
Oxfordshire - OX18 4DW - UK
Phone: 01993 824900
Fax: 01993 824990
Email: sales@emmeti.co.uk
Website: www.emmeti.co.uk
3
Fig. 3
NSB
ELECTRONICS
NO NC
C
5
L N 3 4
NIGHT
SET BACK
M
N
~
4 5
3 6
2 7
4 5 6
7
8
UK
6 7 8
REMOTE
SENSOR
7
8
4 5
3 6
2 7
9
