Summary of Contents for RigExpert Standard

  • Page 1 ® RigExpert Standard User’s manual IMPORTANT: Read this manual carefully before attempting to use the RigExpert Standard device.

  • Page 2: Table Of Contents

    Driver installation guide (Windows 98/ME) ......... 9 Driver configuration guide (Windows 2000/XP/2003/Vista) ....10 Driver configuration guide (Windows 98/ME) ........11 Setting up software to operate using RigExpert Standard …....12 Software setup example: MixW 2 ............13 Software setup example: DigiPan ............14 Software setup example: MMTTY and DX4WIN ........

  • Page 3: Introduction

    Comprehensive documentation and support. • setup and use. Also, it includes squelch input for EchoLink software and even a separate DB-9 socket for TNC or antenna rotor. Internet www.mixw.net – MixW software www.rigexpert.com - fresh news and updates regarding RigExpert Standard links...

  • Page 4: Description

    Some software, such as EchoLink, requires the interface to provide a squelch input to detect if the radio channel is busy. In RigExpert Standard, the squelch input is assigned to the DCD line of the COM port used for PTT and CW outputs.

  • Page 5: Specifications

    Specifications General features • Transceiver audio interface for operating digital modes, voice recording and playback • CAT (Computer Aided Transceiver) system • FSK output • Additional SERIAL input/output Computer connection • USB (Universal Serial Bus) connector • Powered from the USB port (consuming 100 mA maximum) •...

  • Page 6: Front And Rear Panels

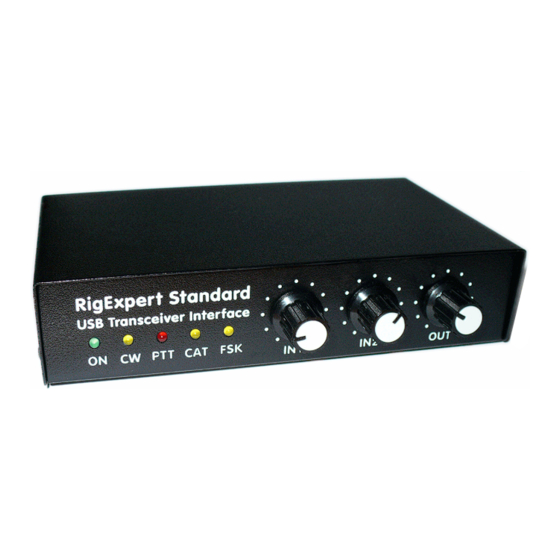

    Front and rear panels 1. ON. Lights when the RigExpert Standard device is plugged in and the drivers are installed. 2. CW. Shows transmissions in CW mode. 3. PTT. Indicates when the transceiver transmits. 4. CAT. Monitors CAT data exchange between transceiver and computer.

  • Page 7: Setup Instructions

    1) Insure the RigExpert Standard is unplugged from both computer and transceiver. 2) Windows users: Insert the RigExpert Standard CD into your CD-ROM drive. If the CD does not auto-start, run SetupRES from the CD. All necessary software will be copied on your hard drive.

  • Page 8: Driver Installation Guide (Windows 2000/Xp/2003/Vista)

    Normally, the Microsoft Certified driver for these operating systems is installed when you first run the RigExpert Standard CD. Additionally, you may find the driver files in the Drivers folder on the CD. Continue with driver settings when you see "Your hardware is installed and ready to use" message.

  • Page 9: Driver Installation Guide (Windows 98/Me)

    Driver Installation Guide (Windows 98/ME) 1. After the RigExpert Standard device is plugged 5. Click Next when you see the "Windows is now into the computer USB port, a Found New ready to install…" window. window will pop up on the computer screen.

  • Page 10: Driver Configuration Guide (Windows 2000/Xp/2003/Vista)

    Advanced button. In the newly-open Advanced Settings for COMx dialog, select a new COM Port Number. 2. To view the RigExpert Standard serial port assignment, please run the ListRE program from Start – Programs – RigExpert Standard – Show Click OK to apply new settings and close the serial ports: Advanced Settings for COMx dialog.

  • Page 11: Driver Configuration Guide (Windows 98/Me)

    COM Port Number. Click OK to apply new settings and close the Advanced Port Settings dialog. You will have to re-plug the RigExpert Standard device for this change to take effect. It is recommended for all four ports to uncheck the Serial Enumerator check-box in the same window: 2.

  • Page 12: Setting Up Software To Operate Using Rigexpert Standard

    Setting up software to operate using RigExpert Standard There are few settings that have to be done (or verified) in the software once the RigExpert Standard device is plugged in and the drivers are installed. A combination of two or more programs may be set up to use all functions of RigExpert Standard.

  • Page 13: Software Setup Example: Mixw 2

    Port. Select other parameters, such as Baud rate to be able to connect an antenna rotor to 2d. Click Details to configure the CAT serial the SERIAL port of RigExpert Standard device. port. 3. In the Serial Port dialog, select your CAT port number as a Port, then set the serial port parameters according to the transceiver manual.

  • Page 14: Software Setup Example: Digipan

    Software setup example: DigiPan 1. Run DigiPan and open the Sound Card dialog from Configure menu. Choose Computer soundcard as a sound card type, then select USB Audio CODEC as input and output. 2. Go to Configure – Serial port menu to open the PTT interface dialog.

  • Page 15: Software Setup Example: Mmtty And Dx4Win

    3b. In the Setup Parameters dialog, open the Radio tab. 3c. Select your transceiver Type and parameters according to the transceiver manual. 3d. Select COM Port to match the RigExpert Standard CAT Port (see the driver configuration guide). 3e. Perform other settings according to the...

  • Page 16: Software Setup Example: Echolink

    Please notice that RigExpert Standard cable diagrams do not show the connection between the transceiver’s squelch output and pin 5 of the 25-pin connector on the back of RigExpert Standard. You will need to add this connection if you want to use the transceiver’s squelch in EchoLink.

  • Page 17: Changing Audio Input Or Output Gain, Fsk Baudrate And Other Jumper Settings

    In some cases, it is necessary to change audio input or output gain to satisfy transceiver requirements, or perform other additional settings. Open the RigExpert Standard box with a screwdriver. Find a corresponding jumper and set it to a new position according to the following picture.

  • Page 18: 25-Pin Transceiver Connector Pinout

    Serial input (5V levels) Digital ground Digital ground SPK_TRCVR Transceiver audio output (speaker), main receiver MIC_TRCVR Transceiver audio input (microphone) AGND_TRCVR Audio signal ground For transceiver cable design guide and cable diagrams for most popular transceivers, please see the www.rigexpert.ua website...

  • Page 19: 25-Pin Transceiver Connector Description

    5mA maximum. CAT serial in/out: RigExpert Standard provides various methods of connecting serial in/out lines with different signal levels to the virtually any model of transceiver. This only requires shortening some pins on the RigExpert Standard transceiver connector.
  • Page 20 Copyright © 2007 Rig Expert Ukraine Ltd. RigExpert is a registered trademark of Rig Expert Ukraine Ltd.
