MANUAL
ENGLISH
Amaro 100W COB LED IP65
V1
Amaro 100WW 3000K COB LED IP65 - ordercode: A0720077
Amaro 100NW 4000K COB LED IP65 - ordercode: A0720078
Amaro 100CW 6500K COB LED IP65 - ordercode: A0720079
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMARO 100WW 3000K COB LED IP65 and is the answer not in the manual?

Questions and answers

Related Manuals for Artecta AMARO 100WW 3000K COB LED IP65

Summary of Contents for Artecta AMARO 100WW 3000K COB LED IP65

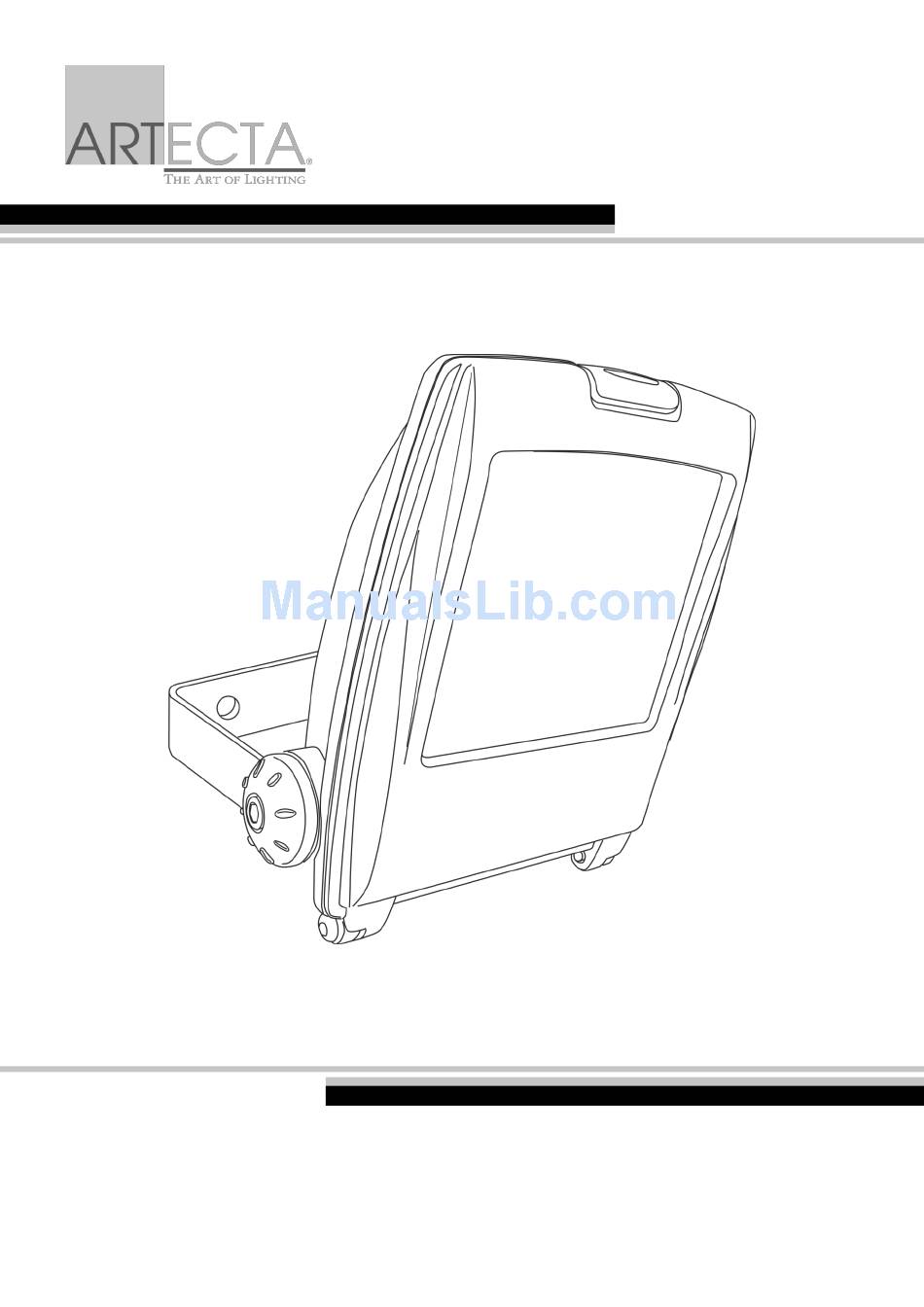

  • Page 1 MANUAL ENGLISH Amaro 100W COB LED IP65 Amaro 100WW 3000K COB LED IP65 - ordercode: A0720077 Amaro 100NW 4000K COB LED IP65 - ordercode: A0720078 Amaro 100CW 6500K COB LED IP65 - ordercode: A0720079 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Amaro 100W COB LED IP65 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................

  • Page 3: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes:  Artecta Amaro 100W COB LED IP65  User manual LED Expected Lifespan LEDs gradually decline in brightness over time.
  • Page 4 • If your Artecta device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Artecta dealer for service.

  • Page 5: Operating Determinations

    Amaro 100W COB LED IP65 Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter.

  • Page 6: Connection With The Mains

    Amaro 100W COB LED IP65 The Amaro can be placed on a flat stage floor or mounted to a wall. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place.

  • Page 7: Return Procedure

    Amaro 100W COB LED IP65 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

  • Page 8: Description Of The Device

    Amaro 100W COB LED IP65 Description of the device Features The Amaro 100W COB LED IP65 is a symmetrical floodlight fixture with high output.  Input voltage: 220-240V, 50Hz  Power consumption: 110W  Light source: 2 x Epistar 50W LED ...

  • Page 9: Installation

    Amaro 100W COB LED IP65 Installation Remove all packing materials from the Amaro 100W COB LED IP65. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing.
  • Page 10 Amaro 100W COB LED IP65 04) Pull the power cable through the waterproof gasket and connect it to the terminal in a proper way. Fig. 04 05) Replace the mounting bracket back to its position. Fig. 05 Ordercode: A0720077/A0720078/A0720079...

  • Page 11: Connection

    Amaro 100W COB LED IP65 Connection Follow the instructions below to connect the cable in the proper and safe manner. Fig. 06 Control Mode 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket.

  • Page 12: Maintenance

    Suspect two potential problem areas as: the power supply and the LEDs. 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The LEDs. Return the Amaro to your Artecta dealer. 03) If all of the above appears to be O.K., plug the unit in again.

  • Page 13: Product Specifications

    Amaro 100W COB LED IP65 Product Specifications Model: Artecta Amaro 100W COB LED IP65 Input Voltage: 220-240 VAC, 50Hz Power consumption: 110W Dimensions: 385 x 125 x 425 mm (LxWxH) Weight: 8 kg Electro-mechanical effects: Light source: 2 x Epistar 50W LED...

  • Page 14: Dimensions

    Amaro 100W COB LED IP65 Dimensions Ordercode: A0720077/A0720078/A0720079...
  • Page 15 Amaro 100W COB LED IP65 Ordercode: A0720077/A0720078/A0720079...
  • Page 16 ©2015 Artecta...
