Summary of Contents for EcoForce Eliminator Elite

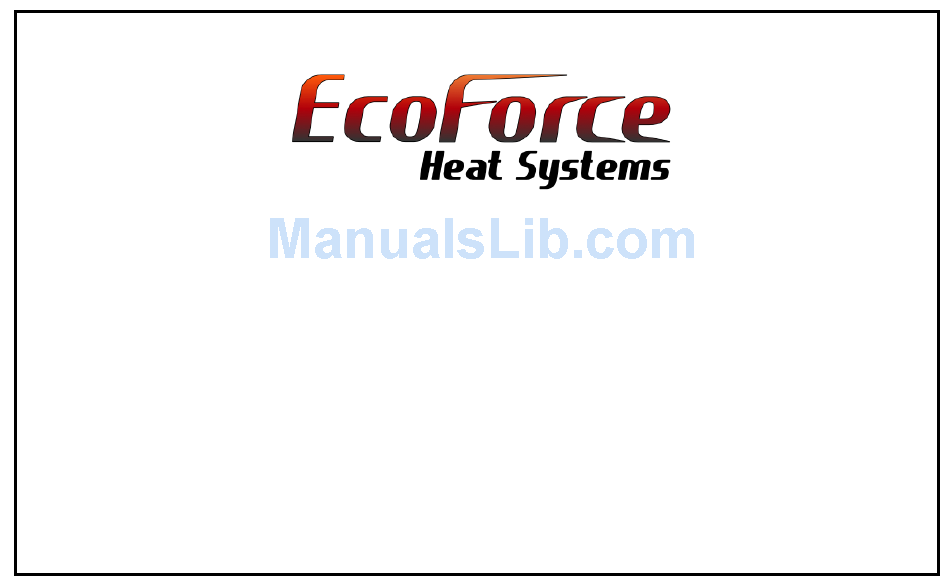

- Page 1 Operations Manual Electric Heat Systems PLEASE READ AND SAVE THESE INSTRUCTIONS 855-4-ECOFORCE EcoForce Heat Systems, LLC® Info@EcoForceHeatSystems.com 855-432-6367 www.EcoForceHeatSystems.com 2432 W. Peoria Ave Ste 1187 www.HotelBedBugHeaters.com Phoenix, AZ 85029 www.BuyBedbugHeaters.com...
-
Page 2: Table Of Contents
INDEX: Introduction ………………………………………………..………………………………………. 2 Safety Instructions .……………………………………………………………………………… 2,3 EcoForce Pro R-26 ……………………………………………………………………………… 4-6 EcoForce Eliminator …………………………………………………………………………….. 7-9 EcoForce Pro-R52 ……………………………………………………………………………. 10-12 Double Universal Air Mover Heater ……………………………………………………..……13,14 Temperature Settings ………………………………………………………………………….…..16 Best Practices …………………………………………………………………………………. 16,17 Warranty …………………………………………………………………………………………… 18... -
Page 3: Introduction
Introduction Thank you for purchasing your EcoForce Heat Systems® heater! EcoForce Heat Systems is proud to bring a series of innovative products geared toward fighting the ever growing bed bug population. Our goal is to incorporate the most advanced technology in today’s market to provide property owners and service professionals alike the ability to kill bed bugs with heat. - Page 4 Always wear rubber gloves and boots when operating in damp conditions. Always keep the air inlet & outlet clear of any obstructions and loose material. Never operate the EcoForce Eliminator Elite or 52K without the fan on. Never operate the EcoForce Pro-R26 without the fan attached.
-
Page 5: Ecoforce Pro R-26
EcoForce Elite 8 ECOFORCE Elite 8 Specifications: NEC® Compliant UL® Listed Amps Per Heating Element Total Amps Volts 120VAC WATTS Per Heating Element Total WATTS 7,680 BTU’s 26,190 Air Volume 2,700 CFM’s Adjustable Thermostat Controlled Yes, Digital Max Temperature Setting 132ºF... - Page 6 Each heating element is 8 amps or 960 watts. Two (2) heating elements can be plugged into a 20 single amp circuit. With (4) 20 amp circuits you can achieve full power of your EcoForce Elite If needed, you can use a 240 volt single phase splitter box to supply power to the heater via a 240 volt electric dryer or range outlet.
- Page 7 Operating EcoForce Elite 8 (Cont’d) Step 1- Using a 12 gauge extension cord, plug the heating element with the green indicator light into a wall outlet. DO NOT plug A/C Splitter (if equipped) into the green indication element as this plug also provides power to the Fan, ON/OFF switch and thermostat controller.
-
Page 8: Ecoforce Eliminator

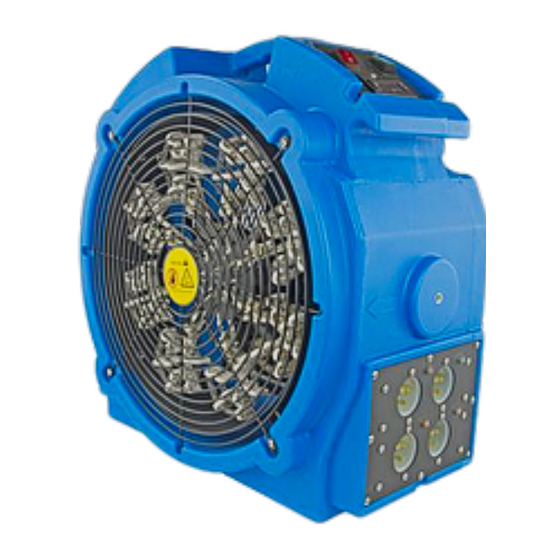

EcoForce Eliminator Elite ECOFORCE ELIMINATOR Specifications: NEC® Compliant Yes (20 Amp Breaker) UL® Listed Amps Per Heating Element 12.5 Total Amps Volts 120VAC WATTS Per Heating Element 1,500 Total WATTS 6,000 BTU’s 20,460 Fan Speed 1 Speed Air Volume 2700 CFM’s... - Page 9 480-304-5649. Your EcoForce Eliminator Elite has one (1) cord for the fan wrapped around the cord storage handle on top of the unit. The power control plate located on the top left of the cord storage handle contains one (1) Green switch for fan and thermostat operation, one (1) Red switch for activating the heating elements, and one (1) digital thermostat.
- Page 10 Important: You MUST use at least twelve (12) gauge extension cords when supplying power to the heating elements on your Eliminator Elite heater. Step 3 - Turn on the heaters fan by pressing the Green switch on the left side of the control plate.
-
Page 11: Ecoforce Pro-R52
EcoForce 52K Elite EcoForce 52K Elite Specifications: NEC® Compliant UL® Listed Amps Per Heating Element 24 Amp 240 VAC (30Amp Circuit) 40 Amp 240 VAC (50 Amp Circuit) Volts 240 Volts Total Watts 15,360 BTU’s Total: 52,377 1- heating element of 32,736 BTU’s 1- heating element of 19,641.6 BTU's... - Page 12 Operating Your EcoForce 52K Elite Unpack & inspect your EcoForce 52K Elite heater for damage – Do not use if damaged. Check all heating elements to make sure everything works and nothing was damaged from shipping. If damaged from shipping do not use and contact us immediately at 480-304-5649.
- Page 13 Operating Your EcoForce 52K Elite (Cont’d) (100) feet. Be sure to fully seat and twist lock the connectors with a right hand (clockwise) twisting motion. Important: If the connections are not fully seated and locked damage may occur. Step 3 - Start the heater’s fan by pressing the Green switch on the top right control plate of the heater.
-
Page 14: Double Universal Air Mover Heater
Double Universal Air Mover Heater Double Universal Air Mover Specifications: NEC® Compliant UL® Listed Amps 7.5 x 2 Amp Total 15 Volts 115 Vac Watts 862.5 BTU’s 2941 x 2 Total BTU’s 5,882 Adjustable Thermostat Additional Equipment Required Yes, Air Mover Fan... - Page 15 Operating Your Double Universal Air Mover Heater Step 1- Attach the spring loaded heater body to virtually any axial or centrifugal air mover. Step 2- Plug attached power cord(s) into acceptable power source. Each power cord operates a single heating element and utilizes 7.5 amps of power at 115vac. If both elements are not required for your application a single element can be used.
-
Page 16: Best Practices
Instructions for Temperature Controller EcoForce Eliminator and EcoForce Pro series heaters come with a state of the art digital temperature controller(s) built into the unit. Each controller is preset to 132ºF. There is no need to adjust the controller to operate your heater unless you want to change the temperature settings above or below 132ºF. -
Page 17: Temperature Settings
3. Unplug all household electrical items and do not place electrical items directly in front of the heater. Electrical items are rated for higher temperatures than you are heating, just avoid the direct heat coming out of the heater. 4. It is best to bag clothes, sheets, etc... and run in the clothes dryer for 20 minutes on high. Never leave clothes laying on the floor or other surfaces or they will act as an insulator and it will be difficult to heat under them sufficiently. - Page 18 10. Always check for fire sprinkler’s installed in a building. Keep temperatures at the fire sprinkler head a minimum of 30ºF below the trigger temperature of the fire sprinkler. 11. Walls and ceilings made of block or concrete require more heat because they are more conductive of energy than drywall.
-
Page 19: Warranty
Limited Warranty K & J Products, LLC’s Limited Warranty covers the unit from defects in material and craftsmanship. The warranty covers normal use for a term of one year from the original date of purchase including parts, labor and one way shipping. - Page 20 Copyright EcoForce Heat Systems, LLC® 2014 All Rights Reserved Manual Ver.12.16.16...
