Micro Spotlight Series
General Description
Tokistar's Micro Spotlight Series is a low-voltage lighting system. The system operates at 5 VDC from Class II Listed
Power Supplies. Fixtures are labeled with wattage and operating voltage.
LED Color
Color
2700
3000
4000
5000
120 VAC / 60 Hz
PRECAUTIONS
1. Read all instructions completely before beginning installation.
2. Turn off electricity before beginning installation.
3. All wiring is to be performed by a qualified electrician.
4. Installation must comply with the National Electrical Code, and all applicable codes.
5. Turn main supply to Power Supply on only after all connections are made and tested.
6. Use only Class II Power Supplies provided by Tokistar with the system.
7. Not for use with phase control dimmers.
T O K I S T A R L I G H T I N G
I N S T R U C T I O N M A N U A L

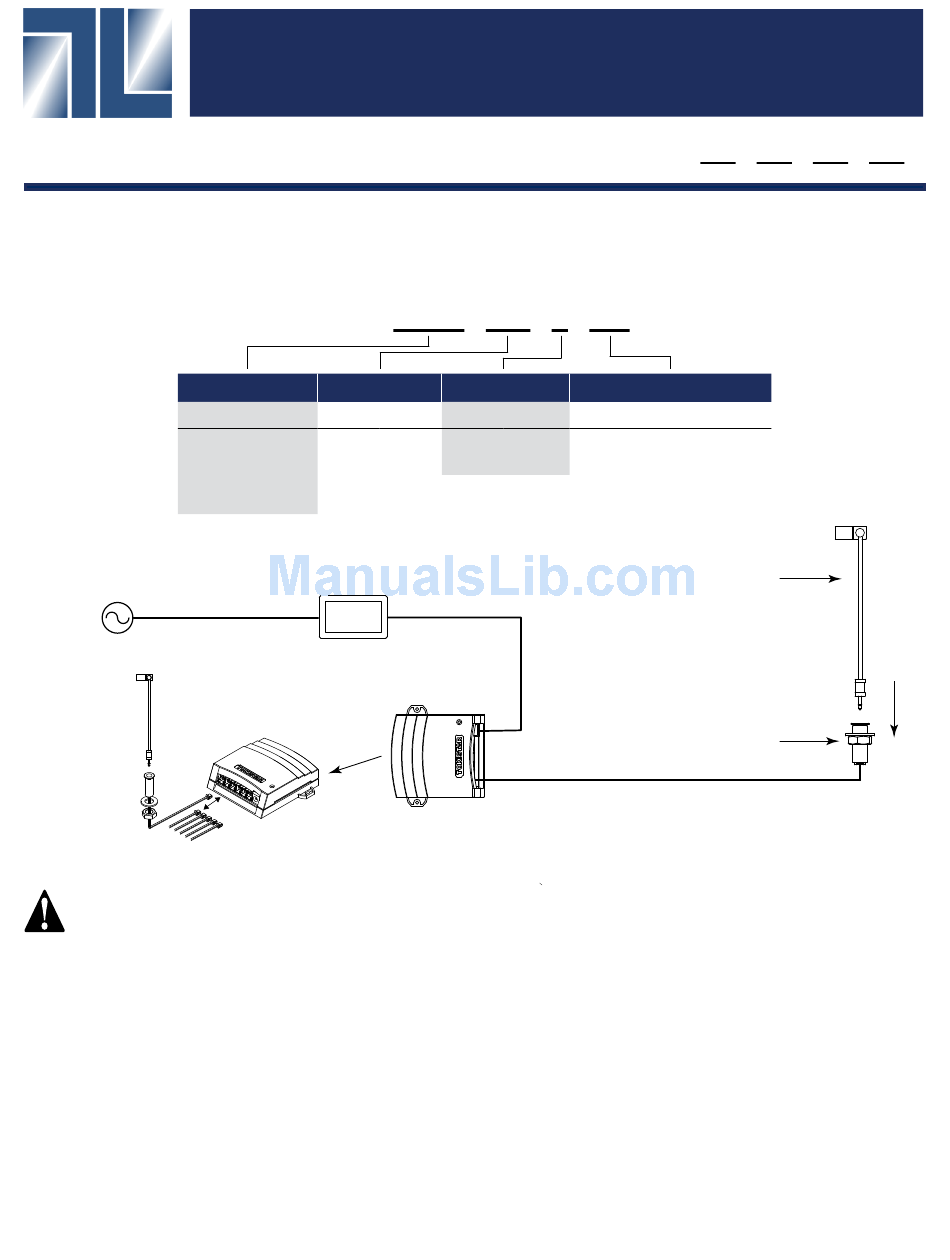

MSP - 3000K - 30D - S - 150
Lens Style
Code
Code
Style
2700K
16
16˚
3000K
24
24˚
4000K
30
30˚
5000K
AC Adapter
LPS-350-6CH
or LPSDM-350-CH
Distribution Box
Up to 6 Micro Spotlight fixtures may
be connected to 1 Power Supply.
TOKISTAR LIGHTING
1015 E. Discovery Lane
Anaheim, CA 92801
TEL: 714 772 7005 FAX: 714 772 7014
email: info@tokistar.com Website: tokistar.com
Fixture Type: MSP-
Fixture Color
Fixture Length
Code Color Code
S
Silver
30
B
Black
150
250
-
-
Length (mm)
30 mm
150 mm
250 mm
Micro Spotlight
Fixture
Socket
MSP-SKT-(B or S)
Lead Wire with Connector
-
Version 1.2
Advertisement
Summary of Contents for TOKISTAR LIGHTING MSP Series
- Page 1 5. Turn main supply to Power Supply on only after all connections are made and tested. 6. Use only Class II Power Supplies provided by Tokistar with the system. 7. Not for use with phase control dimmers. TOKISTAR LIGHTING 1015 E. Discovery Lane Anaheim, CA 92801 TEL: 714 772 7005 FAX: 714 772 7014 email: info@tokistar.com Website: tokistar.com...
- Page 2 Micro Spotlight Instructions Page 2 Micro Spotlight Series includes Fixtures, Socket Assemblies and Power Supplies. Mounting Socket Assembly Socket - Part#: MSP-SKT-S/B Provide a 5/8" diameter hole in the mounting surface. Insert 1.88" 78" the socket assembly through the hole and secure with the nut and washer provided.
- Page 3 Micro Spotlight Instructions Page 3 Lens Replacement Step 1: Rotate Fixture Head counterclockwise to remove. Step 2: Using a soft tool, apply pressure to remove lens. Step 3: Insert the new lens using the soft tool. Step 4: Reinsert Fixture Head using a clockwise motion. reinsert lens with plastic facing outwards Step 2)
