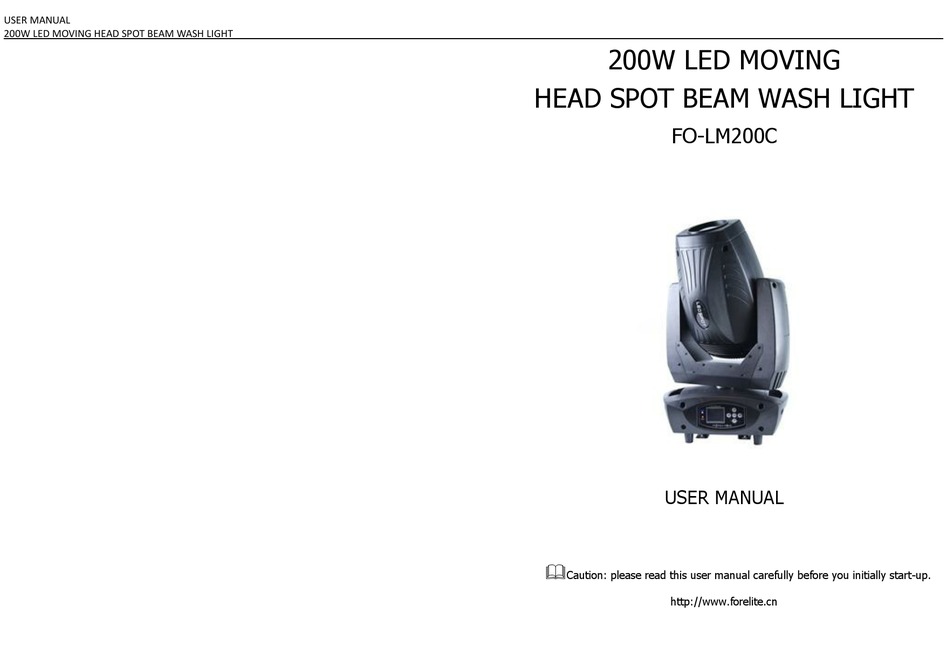

- Page 1 USER MANUAL 200W LED MOVING HEAD SPOT BEAM WASH LIGHT 200W LED MOVING HEAD SPOT BEAM WASH LIGHT FO-LM200C USER MANUAL Caution: please read this user manual carefully before you initially start-up. http://www.forelite.cn...
-
Page 2: Table Of Contents
USER MANUAL 200W LED MOVING HEAD SPOT BEAM WASH LIGHT INDEX Ⅰ GENERAL Thank you for using our product! Please read this manual carefully and completely. For Ⅰ GENERAL ......................01 technical reference in future, please keep this user manual well. This user manual contains all installation and operation information of this Aura LED Moving Head Wash Light, it’s very useful for user to install and operate the light. -
Page 3: Ⅱ Safety Information
USER MANUAL 200W LED MOVING HEAD SPOT BEAM WASH LIGHT User Manual---------1pc approved means of secondary attachment such as a safety cable. To determine the power requirements for a particular fixture, see the label affixed Ⅱ SAFETY INFORMATION to the back plate of the fixture or refer to the fixtures specifications chart. A fixture listed current rating is its average current draw under normal conditions. -
Page 4: Ⅳ Features And Specification
USER MANUAL 200W LED MOVING HEAD SPOT BEAM WASH LIGHT fixture. Static Gobo Wheel: 9 gobos + open, with rotation and running water effect Make sure to put the safety chain and check whether the screws are screwed properly Rotation gobo wheel: 7 gobos + open ... -
Page 5: Ⅵ Installation And Connection
USER MANUAL 200W LED MOVING HEAD SPOT BEAM WASH LIGHT Unit: mm 2. DMX connection Ⅵ INSTALLATION AND CONNECTION Connect the provided XLR cable to the female 3-pin XLR output of your controller and the 1. Installation other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving Be sure to install this product should be at least 0.5 m from the flammable materials head together through serial linking. -
Page 6: Ⅶ Operation And Control
USER MANUAL 200W LED MOVING HEAD SPOT BEAM WASH LIGHT Ⅶ OPERATION AND CONTROL showing on the display. Select the function by ENTER button and the display will blink. Use 1. Control panel DOWN and UP button to change the mode. Once the required mode has been selected, press the ENTER button to setup, to go back to the functions without any change press the MENU button again. -
Page 7: Ⅷ Address Setting And Dmx Channel Operation
USER MANUAL 200W LED MOVING HEAD SPOT BEAM WASH LIGHT 000--255 Tilt fine 1.8 degree, 16bit 000--255 Pan/tilt speed from fast to slow 000--255 Dimmer, 0-100% linear Strobe 000--003 No function 004--099 Strobe from slow to fast 100--149 Pulse strobe from slow to fast 150--199 Thunder strobe from slow to fast 200--249... -
Page 8: Ⅸ Technical Specification
USER MANUAL 200W LED MOVING HEAD SPOT BEAM WASH LIGHT 000--009 Open 051--100 System detection 010--079 7 Rotation gobo(Each 10DMX value is a gobo) 101--150 Auto 1 080--159 7 Gobo+open shake effect (Each 10 DMX value is a gobo) 151--200 Auto 2 160--206 Gobo wheel clockwise rotation from fast to slow... -
Page 9: Ⅹ Photometric Data
USER MANUAL 200W LED MOVING HEAD SPOT BEAM WASH LIGHT Control mode: DMX-512; Master/slave mode; Demo mode DMX channel: 18CH Control panel: LCD display + 4 buttons Thermal Specification Maximum ambient temperature: 45 °C (113 °F) Maximum surface temperature: 170 °C (338 °F) Electrical Specification Power supply: Electronic auto-ranging Input voltage range: AC90-240V, 50/60Hz... - Page 10 Technology, Innovate, Service, Create Max. Value for Clients! 1) Clean the inside and outside lens each week to avoid the weakness of the lights due to Forelite, working for your lights! accumulation of dust. 2) Clean the fan each week.
