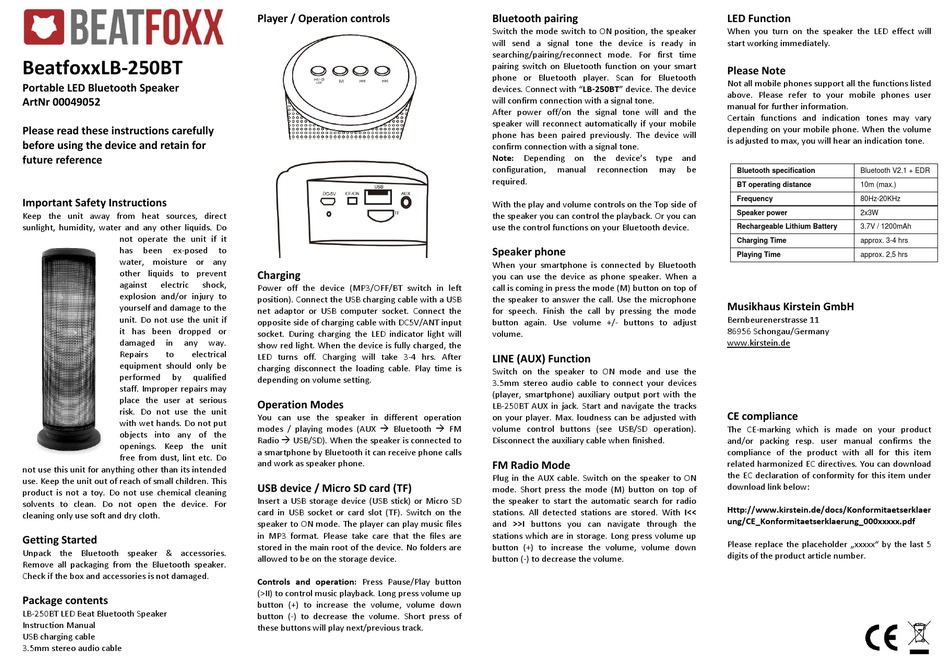

BEATFOXX 00049052 Instructions

BeatfoxxLB‐250BT
Portable LED Bluetooth Speaker
ArtNr 00049052
Please read these instructions carefully
before using the device and retain for
future reference
Important Safety Instructions
Keep the unit away from heat sources, direct
sunlight, humidity, water and any other liquids. Do
not operate the unit if it
has been ex‐posed to
water, moisture or any
other liquids to prevent
against electric shock,
explosion and/or injury to
yourself and damage to the
unit. Do not use the unit if
it has been dropped or
damaged in any way.
Repairs to electrical
equipment should only be
performed by qualified
staff. Improper repairs may
place the user at serious
risk. Do not use the unit
with wet hands. Do not put
objects into any of the
openings. Keep the unit
free from dust, lint etc. Do
not use this unit for anything other than its intended
use. Keep the unit out of reach of small children. This
product is not a toy. Do not use chemical cleaning
solvents to clean. Do not open the device. For
cleaning only use soft and dry cloth.
Getting Started
Unpack the Bluetooth speaker & accessories.
Remove all packaging from the Bluetooth speaker.
Check if the box and accessories is not damaged.
Package contents
LB‐250BT LED Beat Bluetooth Speaker
Instruction Manual
USB charging cable
3.5mm stereo audio cable
Player / Operation controls
Charging
Power off the device (MP3/OFF/BT switch in left
position). Connect the USB charging cable with a USB
net adaptor or USB computer socket. Connect the
opposite side of charging cable with DC5V/ANT input
socket. During charging the LED indicator light will
show red light. When the device is fully charged, the
LED turns off. Charging will take 3‐4 hrs. After
charging disconnect the loading cable. Play time is
depending on volume setting.
Operation Modes
You can use the speaker in different operation
modes / playing modes (AUX  Bluetooth  FM
Radio  USB/SD). When the speaker is connected to
a smartphone by Bluetooth it can receive phone calls
and work as speaker phone.
USB device / Micro SD card (TF)
Insert a USB storage device (USB stick) or Micro SD
card in USB socket or card slot (TF). Switch on the
speaker to ON mode. The player can play music files
in MP3 format. Please take care that the files are
stored in the main root of the device. No folders are
allowed to be on the storage device.
Controls and operation: Press Pause/Play button
(>II) to control music playback. Long press volume up
button (+) to increase the volume, volume down
button (‐) to decrease the volume. Short press of
these buttons will play next/previous track.
Bluetooth pairing
Switch the mode switch to ON position, the speaker
will send a signal tone the device is ready in
searching/pairing/reconnect mode. For first time
pairing switch on Bluetooth function on your smart
phone or Bluetooth player. Scan for Bluetooth
devices. Connect with "LB‐250BT" device. The device
will confirm connection with a signal tone.
After power off/on the signal tone will and the
speaker will reconnect automatically if your mobile
phone has been paired previously. The device will
confirm connection with a signal tone.
Note: Depending on the device's type and
configuration, manual reconnection may be
required.
With the play and volume controls on the Top side of
the speaker you can control the playback. Or you can
use the control functions on your Bluetooth device.
Speaker phone
When your smartphone is connected by Bluetooth
you can use the device as phone speaker. When a
call is coming in press the mode (M) button on top of
the speaker to answer the call. Use the microphone
for speech. Finish the call by pressing the mode
button again. Use volume +/‐ buttons to adjust
volume.
LINE (AUX) Function
Switch on the speaker to ON mode and use the
3.5mm stereo audio cable to connect your devices
(player, smartphone) auxiliary output port with the
LB‐250BT AUX in jack. Start and navigate the tracks
on your player. Max. loudness can be adjusted with
volume control buttons (see USB/SD operation).
Disconnect the auxiliary cable when finished.
FM Radio Mode
Plug in the AUX cable. Switch on the speaker to ON
mode. Short press the mode (M) button on top of
the speaker to start the automatic search for radio
stations. All detected stations are stored. With I<<
and >>I buttons you can navigate through the
stations which are in storage. Long press volume up
button (+) to increase the volume, volume down
button (‐) to decrease the volume.
LED Function
When you turn on the speaker the LED effect will
start working immediately.
Please Note
Not all mobile phones support all the functions listed
above. Please refer to your mobile phones user
manual for further information.
Certain functions and indication tones may vary
depending on your mobile phone. When the volume
is adjusted to max, you will hear an indication tone.
Bluetooth specification Bluetooth V2.1 + EDR
BT operating distance 10m (max.)
Frequency 80Hz-20KHz
Speaker power 2x3W
Rechargeable Lithium Battery 3.7V / 1200mAh
Charging Time approx. 3-4 hrs
Playing Time approx. 2,5 hrs
Musikhaus Kirstein GmbH
Bernbeurenerstrasse 11
86956 Schongau/Germany
www.kirstein.de
CE compliance
The CE‐marking which is made on your product
and/or packing resp. user manual confirms the
compliance of the product with all for this item
related harmonized EC directives. You can download
the EC declaration of conformity for this item under
download link below:
Http://www.kirstein.de/docs/Konformitaetserklaer
ung/CE_Konformitaetserklaerung_000xxxxx.pdf
Please replace the placeholder „xxxxx" by the last 5
digits of the product article number.
