Quick Guide DXE-CAT-RK3
Introduction:

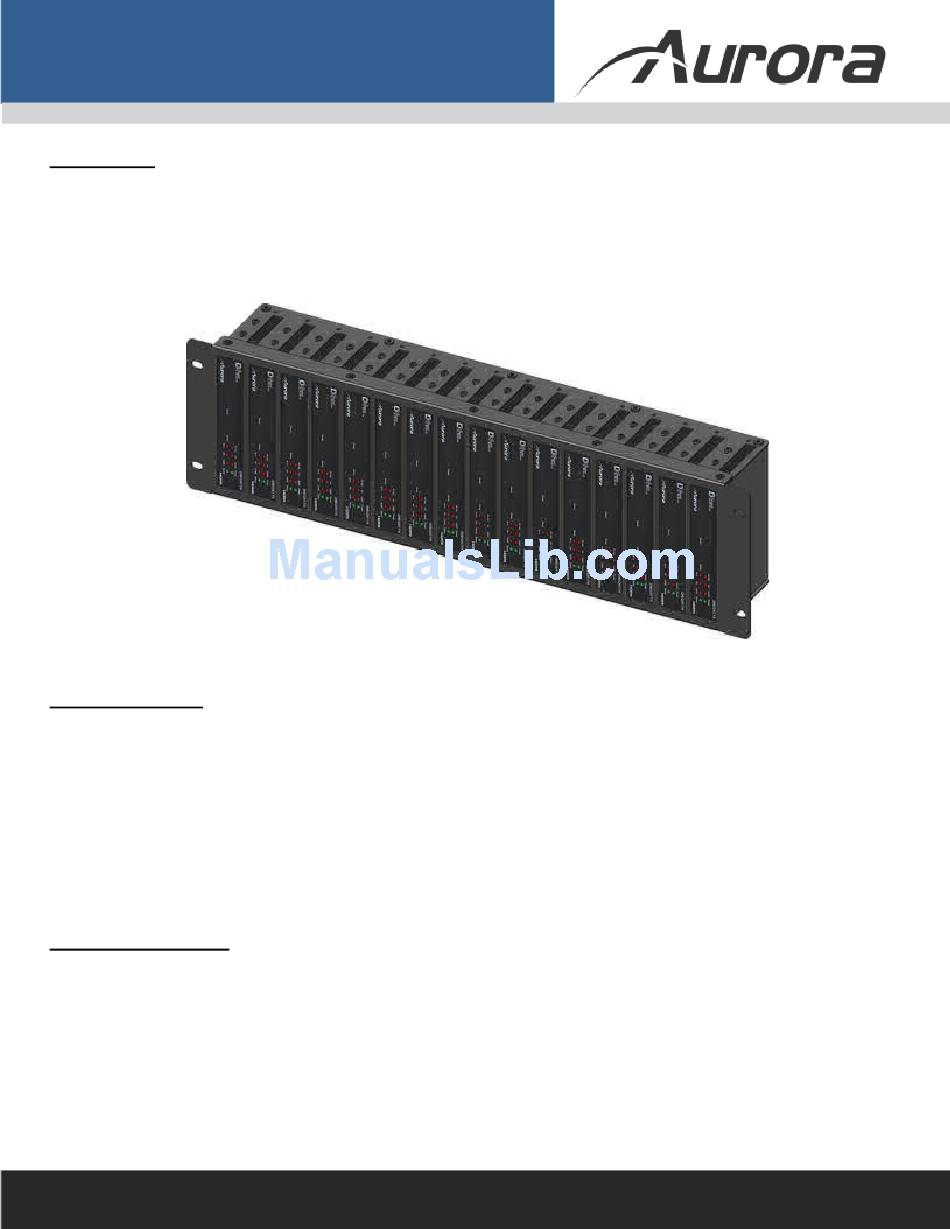

The DXE-CAT-RK3 is a 3RU 19" rack mount for the DXE-CAT- RX1 / RX2 / TX1 / TX2 / TX2L products. It can hold
up to 16 devices and be easily mounted in the front or rear of the unit due to the low depth. An optional blank plate
is available to cover empty slots that are not utilized.
Package Contents:
•
3RU front plate x 1
•
Top/bottom plates x 2
•
6/32" Philips Black Flat Countersunk Screws x 10
•
10/32 X ¾ Round Black Rack Mount Screws x 4
Optional Accessories:
•
Blank Plate DXE-CAT-RK3BL
www.auroramm.com
Phone: (732) 591-5800
E-mail: support@auroramm.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aurora DXE-CAT-RK3
Summary of Contents for Aurora DXE-CAT-RK3
- Page 1 Introduction: The DXE-CAT-RK3 is a 3RU 19” rack mount for the DXE-CAT- RX1 / RX2 / TX1 / TX2 / TX2L products. It can hold up to 16 devices and be easily mounted in the front or rear of the unit due to the low depth. An optional blank plate is available to cover empty slots that are not utilized.
- Page 2 Repeat step one for the bottom making certain the holes for the DXE-CAT units match up to the top plate. Slide DXE-CAT units into DXE-CAT-RK3 in from the rear, and screw into place using the 4/40” screws supplied with the DXE-CAT unit for the mounting ears. Two will be used for the top and the other 2 for the bottom.
