Summary of Contents for RECORDER GEAR CG1000

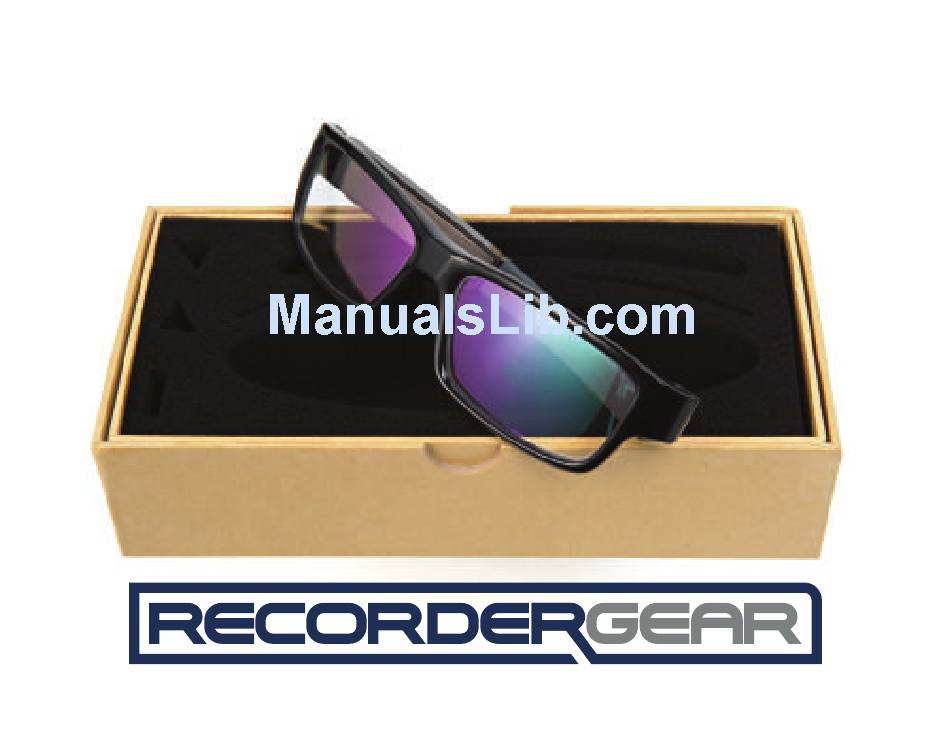

- Page 1 HD CAMERA GLASSES CG1000 INSTRUCTION MANUAL...
- Page 3 WHAT’S IN THE BOX? A. USB Cable B. CG1000 Camera Glasses C. USB Charging Adapter D. Extra Nose Pads E. Dark Tint Lens Set F. Replaceable Battery...
-
Page 4: Led Indicator
LED INDICATOR RESET ON/OFF USB PORT CAMERA REPLACEABLE BATTERY TOP VIEW... -
Page 5: Bottom View
ON/OFF RESET BOTTOM VIEW... - Page 6 NOSE PAD ATTACHMENT PRONGS (may require adhesive when changed) NOSE PADS BEHIND VIEW...
-
Page 7: Changing Lenses
CHANGING LENSES Removing Lenses 1) Apply pressure from behind the lenses 2) It will then come free from the frame Inserting Lenses 1) Place the lens above the correct portion of the frame 2) Apply pressure on the front of the lens until it pops into place 3) Make sure the lens is inside of the frame all the way around... - Page 8 INSTRUCTIONS Turn On 1) Hold the on/off button for about 3 seconds. 2) The LED indicator light will flash blue 5 times this indicates that the camera glasses are on and recording has begun 3) Light will remain off while recording Pause Recording/Standby Mode 1) Press the on/off button for 1 second to pause 2) Press the on/off button again to resume recording...
- Page 9 Charging 1) Plug the USB cable into your computer or USB charger 2) Plug the other end of the cable into the charging adapter piece 3) Plug the replaceable battery into the USB charging adapter 4) While the unit is charging, an LED light on the charging adapter will shine solid red.
- Page 10 Viewing Recordings 1) Remove your replaceable battery (glasses arm) 2) Plug your glasses into your computer via USB cable 3) Access files on the glasses by selecting the drive in My Computer (Windows) or Finder (Mac) 4) The video files are located in a folder named “DCIM” 5) The files can be transferred by either copy and pasting or by dragging and dropping onto your computer desktop 6)To Play videos open the movie files with your default media...
- Page 11 Change Time/Date Stamp The camera glasses will create a time/date stamp for the videos that you capture. To change the default time stamp: 1) Connect the camera glasses body directly to your computer via the included USB cable. 2) Access files on the device by selecting the drive in My Computer (Windows) or Finder (Mac).
-
Page 12: Technical Specs
TECHNICAL SPECS 720P HD 30FPS Date/Time 16 or 32GB Built in Mic 70 min Battery Mac OSX Windows XP/7/8 Great Looking... - Page 13 Obey Federal and State Laws While using the CG1000 please obey all Federal and State laws. Follow your particular state’s laws regarding one or two party consent audio recording. For questions consult an attorney.
-
Page 14: One Year Warranty
ONE YEAR WARRANTY All of our products and accesories are guaranteed against manufacturing defects for one full year from the purchase date. If there is a defect it is our sole responsibility to replace or repair the defective product with the same or an updated version of the product. - Page 15 HAPPY? NOT HAPPY? We’re only happy when you’re happy. Our friendly hassle-free customer service team will work hard to put a smile on your face. Give us a call or shoot us an email. (208) 557-9460 support@recordergear.com Leave a product review...
- Page 16 RECORDERGEAR.COM...
