USER MANUAL
AVR 5K/8K/10K
Automatic Voltage Regulator

I. Introduction

Thank you for purchasing this AVR. This AVR is designed to
automatically maintain a constant voltage level to protect
sensitive electronics from brownouts and over voltages.
Equipped with comprehensive information display, it's easy to
monitor the power status.
 Microprocessor control guarantees high reliability
 Time delay function eliminates transients that can affect
connected equipment.
 Startup countdown time display
 Over-voltage, under-voltage, over-heat and over current
protection
 Provides surge and spike suppression
 Frequency: 50Hz or 60Hz mode
 Input and output voltage display for Color display
 Load level display
 Over load protection
II. Important Safety Caution (SAVE THESE
INSTRUCTION)
To safely operate this AVR, please read and follow all
instructions carefully. Read this manual thoroughly
before attempting to unpack, install, or operate. You
may keep this quick guide for further reference.
CAUTION: The unit is designed only for use under the 50
/60Hz input frequency and pure sine wave environment. Any
other input frequency or waveform will effect the voltage
range and load capability.
CAUTION: Please DO NOT connect the unit to the
environment with direct voltage (DC) or simulated sine
wave.
CAUTION: To prevent the risk of fire or electric shock,
install in a temperature and humidity controlled indoor
area free of conductive contaminants. (See the
specifications for the acceptable temperature and humidity
Version: 1.2
range.)

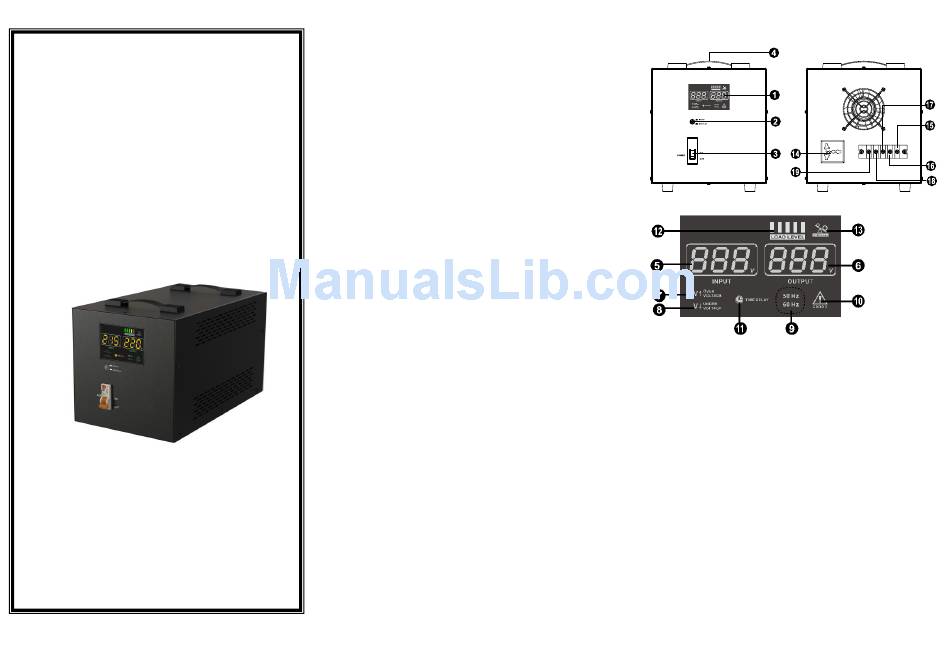

III. Product Overview

Front View: Back View:
Color screen display:
1. Color screen display
2. Startup delay time selector
3. Power Switch
4. Handle
5. Input voltage display
6. Output voltage display
7. Over-voltage indicator
8. Under-voltage indicator
9. Frequency information
10. Fault indicator
11. Time delay indicator
12. Load level indicator
13. Overload indicator
14. Output sockets
15. Neutral input terminal
16. Line input terminal
17. Grounding
18. Neutral output terminal
19. Line output terminal (brown)
