Summary of Contents for Hyperion HP-FPMON7V1
-

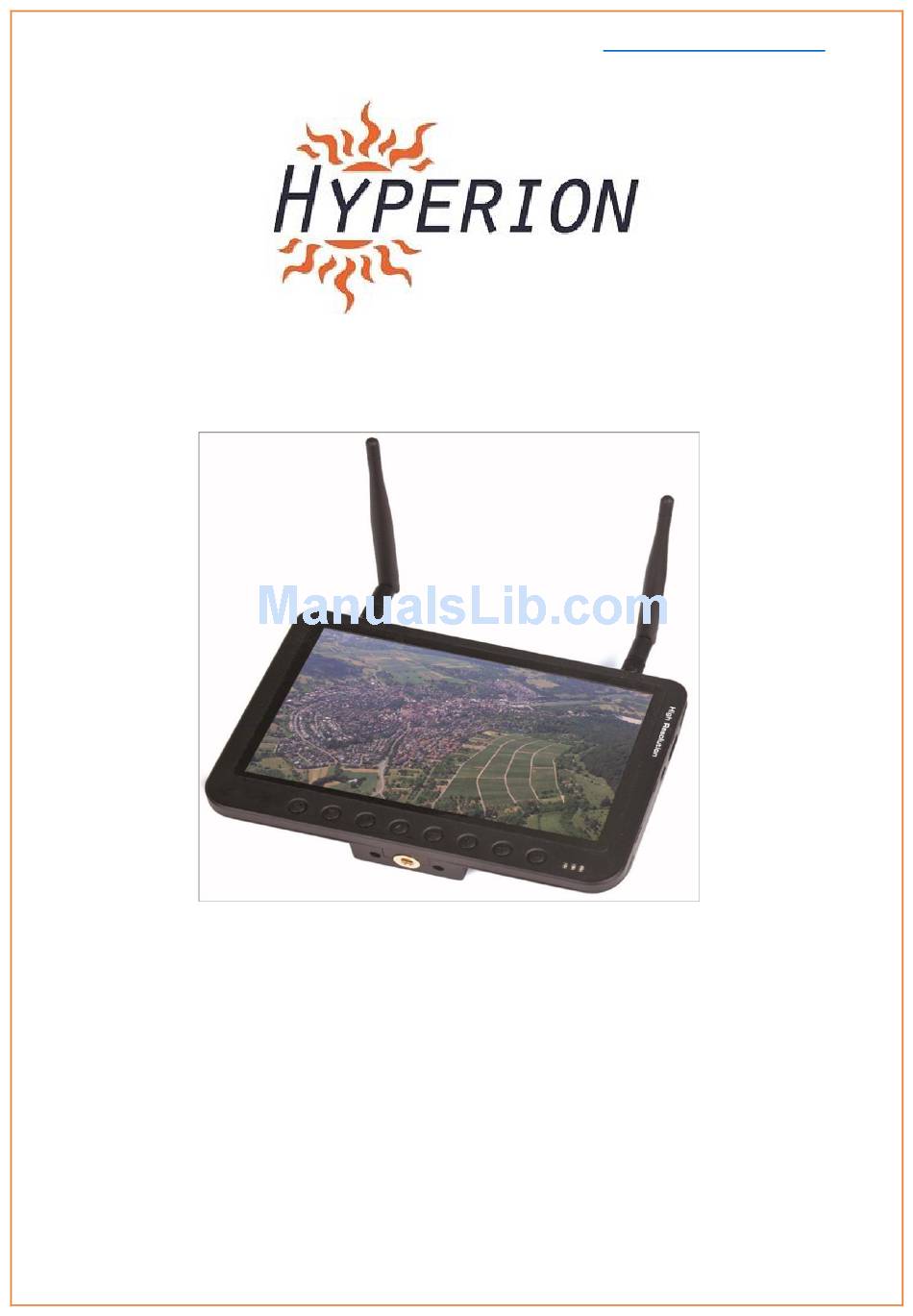

Page 1: User Manual
User Manual Hyperion 7” (178 mm) LCD HD Monitor with 5.8 GHz Diversity receiver... -
Page 2: Table Of Contents
Index Introduction ................Intended use ................. Package content ..............Symbols explication ............... Safety notes................Interfaces ................Charge and discharge the Li Ion battery........Screen shroud and tripod thread ........... Commissioning ..............Button description..............Screen symbols / Setting menu ........... -
Page 3: Introduction
Thank you very much for purchasing the Hyperion 7” High Resolution Monitor. This Hyperion 7” High Resolution Monitor is extremely versatile. Read this manual carefully to achieve the best results with your Hyperion 7” High Resolution Monitor and first of all too safely control your models. -
Page 4: Package Content
Package content Hyperion 7“ Diversity * Monitor incl. Li Ion battery Screen shroud 2x 5.8GHz receiver antennas 12V DC cable with BEC connector ... -
Page 5: Interfaces
Never leave the packing materials around! Plastic wrap or bags, polystyrene parts, etc. can be a dangerous toy for children! Risk of suffocation! Repair work may only be carried out by Hyperion Service Centre or a specialized workshop. Interfaces... -
Page 6: Charge And Discharge The Li Ion Battery
Note: The USB port is not conceived as a power source to charge and discharge the Li Ion battery CAUTION General notes on safety and handling Li Ion batteries NEVER leave a Li Ion battery unattended when in charge. Charge the batteries only in rooms where a smoke detector is installed. -
Page 7: Screen Shroud And Tripod Thread
Charge To charge the internal 1800 mAh Li Ion battery, you need a suitable 7 - 22 V DC net adapter (not included in the package content). Plug the net adapter in a suitable net socket, then connect the plug in the “DC IN”... -
Page 8: Screen Symbols / Setting Menu
Minus button Reduces the screen brightness and other options MENU Push once to hide the symbols on the screen Push twice to open the menu Plus button Increases the screen brightness and other options Power (On/Off) To turn on, push the On/Off button until the... -
Page 9: Declaration Of Conformity
Exit: Aborts the menu Declaration of conformity 48350, 7” HD Monitor Hyperion declares that the product is conform to EU norms. EMV 1999/5/EC; EN 301 489-1 V1.9.2 (2011-09); EN 301 489-17 V2.1.1 (2009-05); EN 300 440-2 V1.4.1 (2010-08) Technical Data ... -
Page 10: Notes On Environmental Protection
Warranty The Hyperion grants from the date of purchase of this product for a period of 12 months. The warranty applies only to the material or operational defects already existing when you purchased the item. Damage due to wear, overloading, incorrect accessories or improper handling are excluded from the guarantee.
